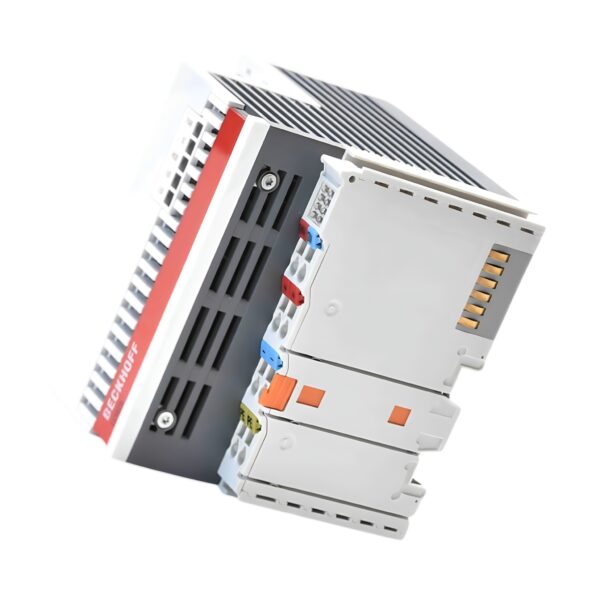

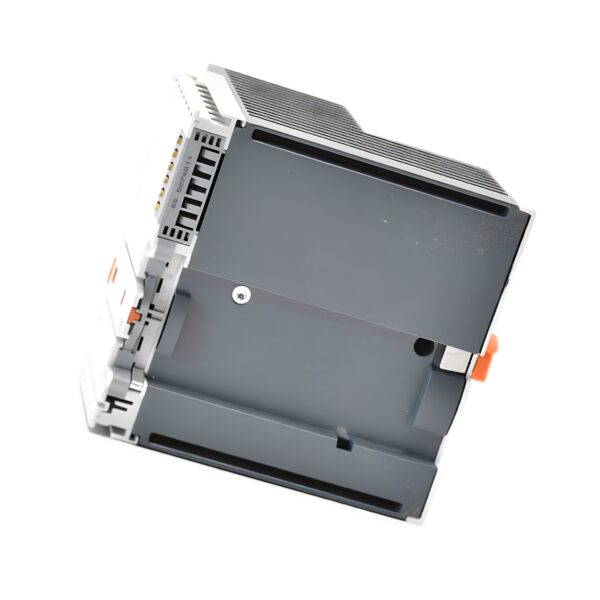

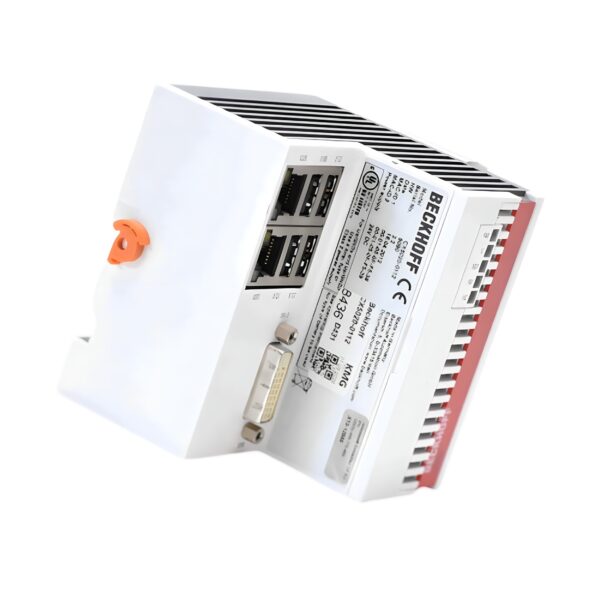

Beckhoff CX5020-0112 Embedded PC

The Beckhoff CX5020-0112 is a powerful DIN rail-mountable Embedded PC from the CX5000 series, ideal for compact automation systems using TwinCAT 3 (TC3: 40). Featuring an Intel® Atom™ Z530 processor at 1.6 GHz, this fanless controller integrates 512 MB of internal DDR2 RAM and an exchangeable 128 MB Compact Flash card for storage.

Designed for industrial reliability, the CX5020-0112 includes dual RJ45 Ethernet ports, supports Beckhoff’s E-bus interface, and offers seamless I/O connectivity. Its slim 64 mm housing and passive cooling make it perfect for space-constrained control cabinets.

Technical Specifications

Part Number: CX5020-0112 Beckhoff
Processor: Intel® Atom™ Z530, 1.6 GHz
RAM: 512 MB DDR2 (internal)
Storage: 128 MB Compact Flash card (exchangeable)
Operating System: Optional (not pre-installed)
Runtime Support: TwinCAT 3 PLC (TC3: 40)

Electrical Specifications

Power Supply: 24 V DC
Typical Power Consumption: Approx. 13 W
Current Draw: Up to 2 A depending on configuration

Mechanical Specifications

Mounting: 35 mm DIN rail (EN 60715)
Cooling: Fanless, passive convection
Protection Class: IP20
Dimensions (W x H x D): 64 mm x 100 mm x 91 mm
Weight: Approx. 300 g

Environmental Specifications

Operating Temperature: -25…+60°C
Storage Temperature: -40…+85°C
Relative Humidity: 95%, non-condensing
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27 compliant
EMC Standards: EN 61000-6-2 / EN 61000-6-4

Connectivity

Ethernet: 2 x RJ45 10/100 Mbit/s
Fieldbus: EtherCAT via E-bus (optional interface)
USB/Serial Ports: Expandable via CX1100 series interface modules

Certifications & Compliance

Certifications: CE, UL, ATEX, IECEx
Ingress Protection: IP20
Product Status: Regular Delivery

Features & Benefits

✅ Intel Atom Performance: Z530 1.6 GHz for industrial control.

✅ Compact & Modular: 64 mm housing for tight cabinet spaces.

✅ Dual Ethernet Ports: Native 2x RJ45 for networking and diagnostics.

✅ Fanless Reliability: No moving parts, ideal for harsh environments.

✅ Expandable Design: Add I/O and interfaces via CX1100 modules.

📦 Buy Beckhoff CX5020-0112 Embedded PC – Reliable TwinCAT 3 Industrial Controller

At Drive Outlet Megastore we offer unbeatable Beckhoff CX5020-0112 prices. This compact industrial PC is built for robust automation tasks, combining flexibility, reliability, and space-saving design.

Contact us today for a quote or bulk pricing options.

Fast delivery, full warranty, and dedicated support across the UK and EU.
