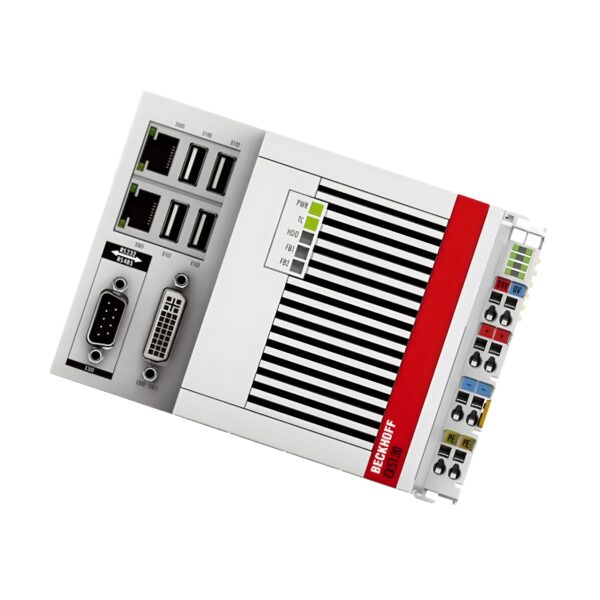

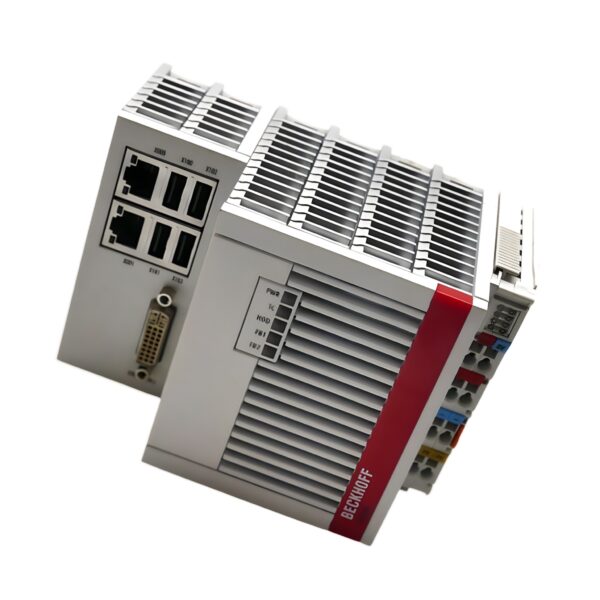

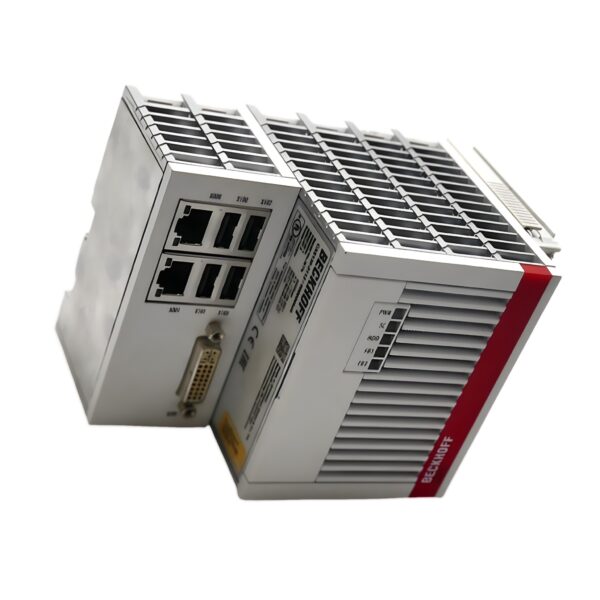

Beckhoff CX5130-0122 Embedded PC

The Beckhoff CX5130-0122 is a modular Embedded PC designed for demanding industrial control tasks. Featuring a dual-core Intel Atom processor and 4 GB DDR3 RAM, this system supports fast, reliable operation across a wide range of automation environments. With passive cooling and a slim DIN rail-mountable design, the CX5130-0122 offers optimal space utilization, energy efficiency, and long-term reliability.

Equipped with LED status indicators, dual Gigabit Ethernet ports, flash memory support, and IP20-rated protection, this fanless PC is built to operate in control cabinets and other harsh industrial settings with minimal maintenance. It is part of Beckhoff’s scalable CX5000 series, offering compatibility with TwinCAT 3 and seamless I/O integration.

Technical Specifications

Part Number: CX5130-0122 Beckhoff
Manufacturer: Beckhoff
Product Series: CX5130 Series
Processor: Intel Atom, Dual-Core
Performance Class: TwinCAT 3 capable
Control Software: TwinCAT 3 (XAR runtime, OS dependent)

Memory & Storage

Main Memory: 4 GB DDR3 RAM (non-expandable)
Flash Memory: Slot for CFast and microSD (cards not included)

Interfaces & Communication

Ethernet: 2 x RJ45 (10/100/1000 Mbit/s)
USB / DVI / Additional Ports: Not specified (configurable depending on order variant)
Diagnostics: LED indicators for power, flash, and bus status
I/O System Support: E-Bus or K-Bus (automatic recognition)

Electrical Specifications

Power Supply: 24 V DC
Current Supply: 2 A
Max Power Consumption: 14–20 W
Protection Rating: IP20

Mechanical & Environmental Specs

Cooling: Passive (fanless)
Operating Temperature: -25…+60°C
Storage Temperature: -40…+85°C
Relative Humidity: 95%, non-condensing
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
EMC Compliance: EN 61000-6-2 / EN 61000-6-4
Mounting: DIN rail

Key Features

✅ Dual-core Intel Atom processor: Reliable, industrial-grade performance.

✅ 4 GB DDR3 RAM: High-speed embedded memory.

✅ CFast and microSD support: Expandable storage architecture.

✅ Fanless design: Passive cooling for maintenance-free operation.

✅ LED diagnostics: Easy status monitoring.

✅ Wide temperature tolerance: Operates from -25°C to +60°C.

📦 Buy Beckhoff CX5130-0122 Embedded PC – Dual-Core Control System for Advanced Automation

At Drive Outlet Megastore we offer unbeatable Beckhoff CX5130-0122 prices.

Get a rugged, scalable control platform that adapts to your automation needs — with same-day shipping options and expert support available.

Contact us today to order the CX5130-0122 or check real-time stock availability.
