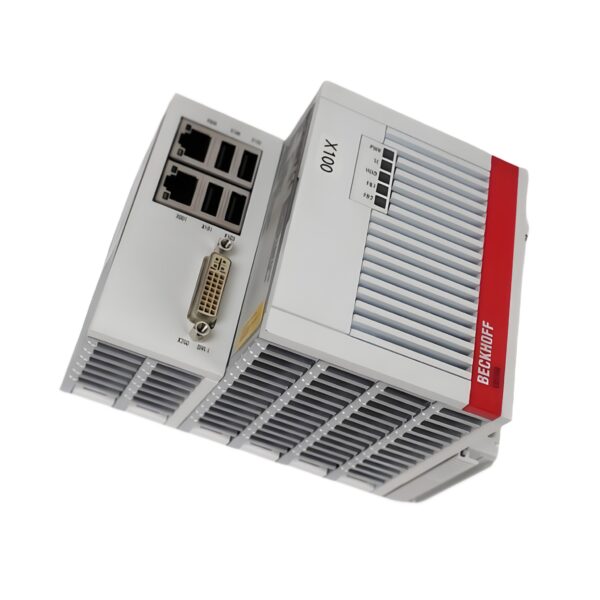

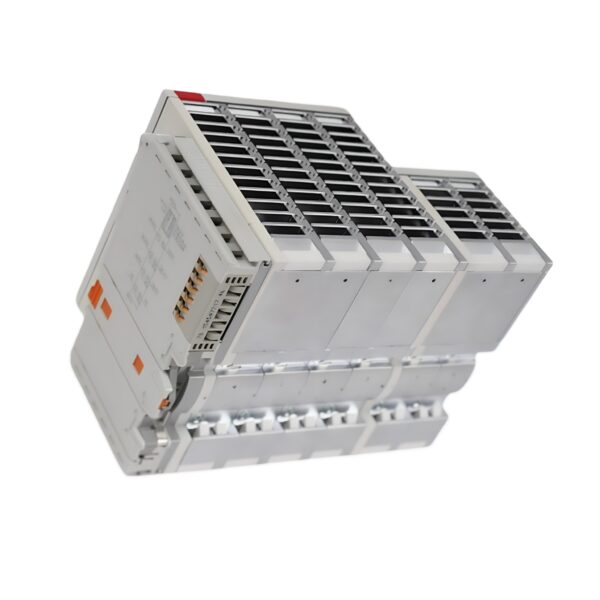

Beckhoff CX5140-0100 Embedded PC

The Beckhoff CX5140-0100 is a powerful and compact Embedded PC tailored for PLC and motion control applications. Featuring a 1.91 GHz Intel Atom® E3845 quad-core processor and passive cooling, the CX5140-0100 is ideal for automation environments where performance and reliability are critical.

This model supports both E-bus and K-bus terminal systems with automatic recognition and includes multiple interfaces such as dual Gigabit Ethernet, DVI-I, and four USB 2.0 ports. With preinstalled TwinCAT 2 or optional TwinCAT 3 (XAR), it delivers a flexible platform for control tasks — from basic PLC to sophisticated motion with interpolating axes.

Certified to meet industrial EMC, shock, and ATEX/IECEx standards, this fanless DIN rail-mounted unit is built to withstand harsh environments while offering a long service life and low energy consumption.

Technical Specifications

Manufacturer: Beckhoff
Part Number: CX5140-0100 Beckhoff
Product Type: Embedded PC / Industrial Controller
Series: CX5100

Processor & Memory

Processor: Intel Atom® E3845, 1.91 GHz, Quad-Core (TC3: 50)
Main Memory: 4 GB DDR3 RAM (not expandable)
Flash Memory: Slot for CFast card and microSD card (cards not included)
Persistent Memory: Integrated 1-second UPS (1 MB on CFast card)

Operating System & Software

Operating System Options:
– Windows Embedded Compact 7
– Windows Embedded Standard 7
– Windows 10 IoT Enterprise 2016/2019/2021 LTSC
– TwinCAT/BSD
Control Software:
– TwinCAT 2 runtime
– TwinCAT 3 runtime (XAR)

Interfaces & Connectivity

Ethernet: 2 x RJ45 (10/100/1000 Mbit/s)
USB: 4 x USB 2.0
Display: 1 x DVI-I
Optional Interface: 1 x configurable port
I/O Interface: E-bus or K-bus (auto-detect)
Diagnostic LEDs: Power, Flash Access, TC Status, 2 x Bus Status
Clock: Internal battery-backed RTC (exchangeable)

Power & Environmental

Power Supply: 24 V DC (-15% / +20%)
Current Supply (E-bus/K-bus): 2 A
Max. Power Consumption: 16 W (23 W with UPS load)
Max. I/O Bus Power: 10 W (5 V / 2 A)
Cooling: Fanless, passive convection
Operating Temperature: -25…+60°C
Storage Temperature: -40…+85°C
Humidity: 95% RH, non-condensing
Protection Class: IP20
EMC Standards: EN 61000-6-2 / EN 61000-6-4
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27

Mechanical Specifications

Mounting: DIN Rail
Dimensions (W x H x D): 142 mm x 100 mm x 92 mm
Weight: Approx. 1095 g

Approvals & Markings

Certifications: CE, UL, DNV GL
Optional Certifications (with CX2900-0107): ATEX, IECEx, cFMus
Ex Marking:
– ATEX: II 3 G Ex nA IIC T4 Gc / II 3 D Ex tc IIIC T135 °C Dc
– IECEx: Ex nA IIC T4 Gc / Ex tc IIIC T135 °C Dc
– cFMus: Class I, Division 2, Groups A-D; Class I, Zone 2, AEx ec IIC T4 Gc

Key Features

✅ Intel Atom E3845 Quad-Core CPU: Multi-core performance in a fanless design.

✅ DIN Rail Mountable: Compact and easy to install in control panels.

✅ Dual Ethernet + 4 USB: High connectivity in industrial environments.

✅ 1-Second UPS: Built-in data retention on power loss.

✅ TwinCAT Runtime: Scalable PLC and motion control.

✅ Modular I/O Support: E-bus or K-bus compatibility.

✅ Global Compliance: UL, CE, ATEX, IECEx approved.
