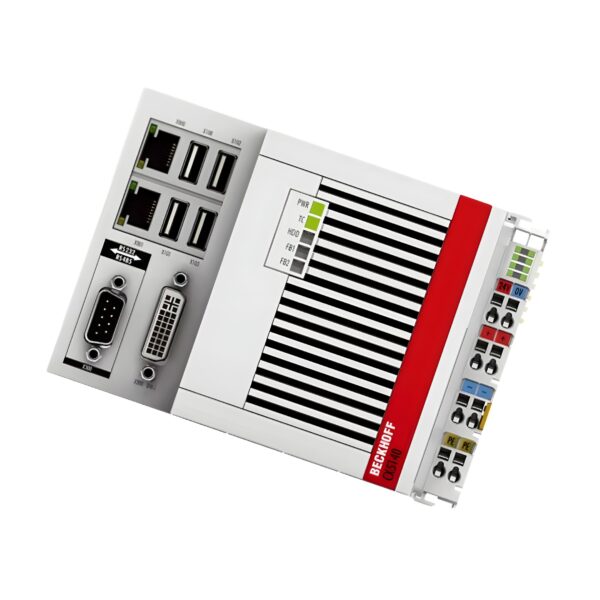

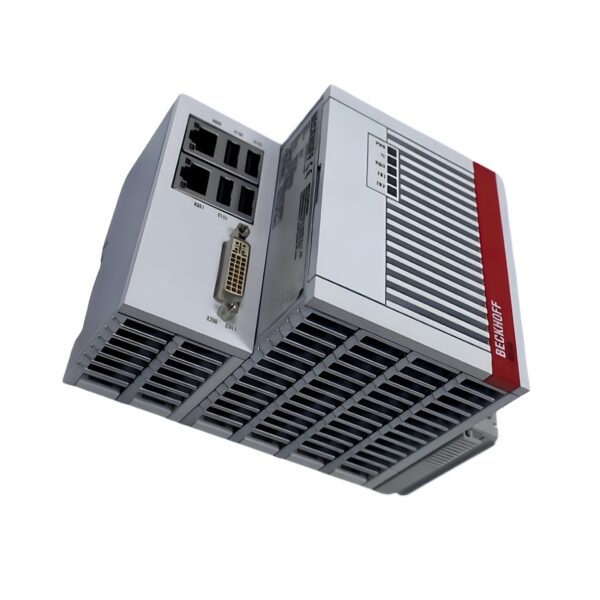

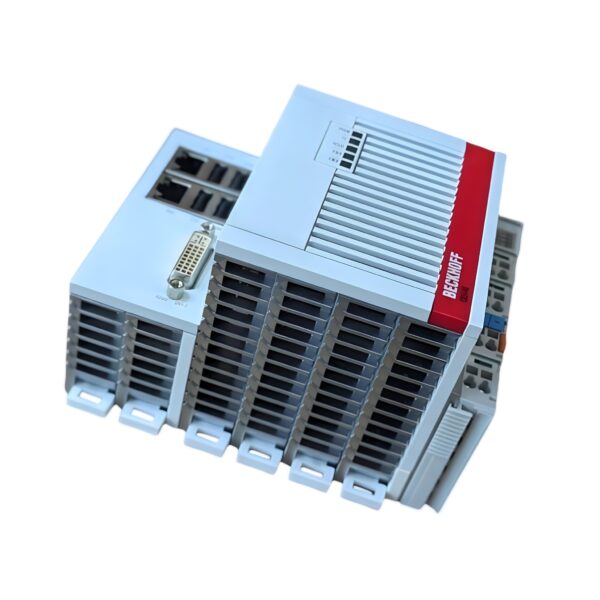

Beckhoff CX5140-0115 Embedded PC

The Beckhoff CX5140-0115 is a powerful fanless Embedded PC designed for demanding industrial automation environments. Featuring a high-efficiency Intel Atom® processor with four cores running at 1.91 GHz, this unit delivers reliable multitasking performance while minimizing energy consumption and thermal output. Ideal for control cabinet integration, the CX5140-0115 supports both Windows CE 6 and Windows Embedded Standard OS options and utilizes CFast or microSD flash storage as the boot medium.

Its passive cooling design and IP20-rated housing make it suitable for harsh industrial conditions. With a compact footprint, dual K-bus support at 2 A, and diagnostic-ready internal clock, the CX5140-0115 offers rugged reliability and versatile system integration in a wide range of machine control and process automation applications.

Technical Specifications

Manufacturer: Beckhoff
Part Number: CX5140-0115 Beckhoff
Product Type: Embedded PC / Computer-based Terminal
Series: CX5100

Processor & Memory

Processor: Intel Atom® E3845, 1.91 GHz, Quad-Core
Main Memory: 4 GB DDR3 RAM (non-expandable)
Flash Memory: Boot from CFast card or microSD card (cards not included)

Operating System & Software

Operating System: Windows CE 6 or Windows Embedded Standard
Control Software: Optional TwinCAT compatibility depending on OS configuration

Interfaces & Connectivity

I/O Interface: K-bus, automatic recognition
Ethernet: 2 x RJ45 ports (10/100/1000 Mbit/s)
USB: 4 x USB 2.0 (model-dependent)
Display Output: Optional DVI (model-dependent)
Diagnostic LEDs: Power, Flash Access, TC Status, Bus Status
Clock: Internal, battery-backed real-time clock

Power & Environmental

Power Supply: 24 V DC (-15% / +20%)
Current Supply (K-bus): 2 A
Power Consumption: Max. 16 W
Cooling: Passive (fanless)
Operating Temperature: Tested for harsh industrial conditions
Protection Rating: IP20

Mechanical Specifications

Mounting: DIN Rail
Dimensions (W x H x D): 142 mm x 100 mm x 92 mm
Weight: Approx. 960 g

Key Features

✅ Intel Atom Quad-Core 1.91 GHz: High-efficiency industrial processing.

✅ Windows CE 6 or Embedded Standard: Configurable for legacy or modern systems.

✅ Fanless Cooling: Maintenance-free design.

✅ CFast + microSD Support: Flexible storage and OS boot options.

✅ DIN Rail Form Factor: Ideal for control cabinet use.

✅ Battery-Powered RTC: Accurate timekeeping for automation logging.

✅ Industrial Build: Withstands severe temperatures and environments.

📦 Buy Beckhoff CX5140-0115 – Industrial Embedded PC with Quad-Core Processor, Fanless Design, and Dual Flash Storage

At Drive Outlet Megastore we offer unbeatable Beckhoff CX5140-0115 prices.

Perfect for machine control, process monitoring, and OEM system integration, this embedded PC delivers powerful performance in a space-saving, rugged package.

Contact our team now to check availability or request a quote for volume orders.
