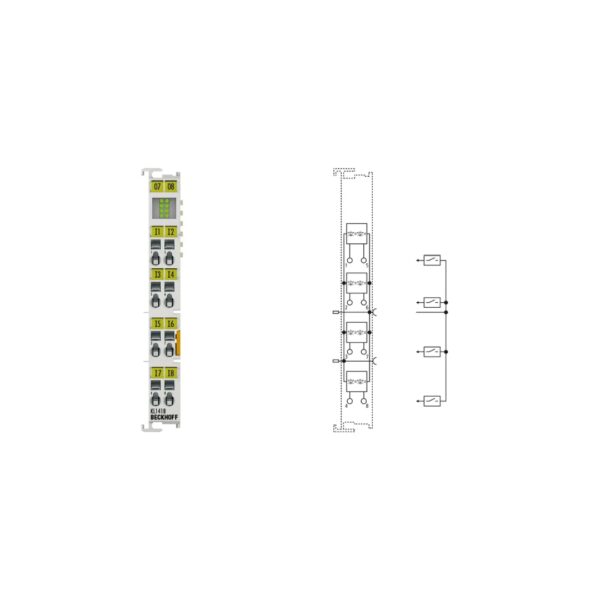

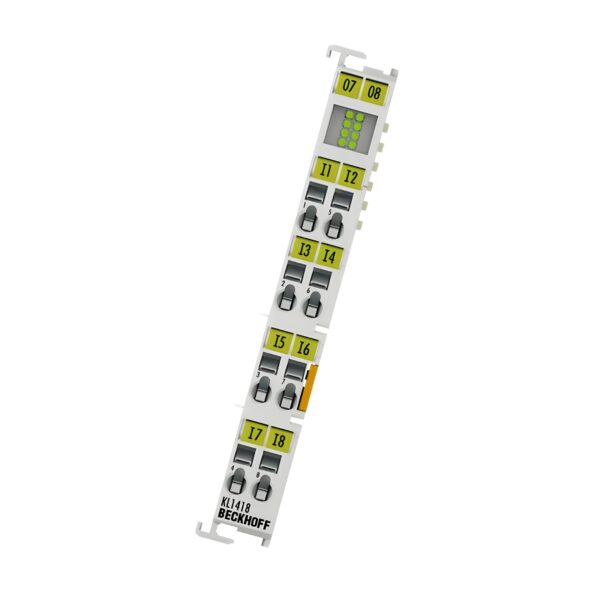

Beckhoff KL1418 Bus Terminal

The Beckhoff KL1418 is a high-speed 8-channel digital input terminal that acquires binary 24 V DC control signals from field-level devices and transmits them with electrical isolation to the higher-level controller. With an ultra-fast 0.2 ms input filter and EN 61131-2 Type 1/3 compatibility, it enables rapid and reliable signal processing for time-sensitive automation tasks.

Each channel features LED indication for real-time status monitoring, and its 1-wire connection system makes it ideal for compact, distributed I/O solutions.

Technical Specifications

Model: KL1418 Beckhoff
Number of Inputs: 8
Connection Technology: 1-wire
Input Specification: EN 61131-2, Type 1/3
Nominal Voltage: 24 V DC (-15%/+20%)
“0” Signal Voltage: -3…+5 V (Type 1/3)
“1” Signal Voltage: 11…30 V (Type 3)
Input Filter Time: Typ. 0.2 ms
Input Current: Typ. 3 mA (Type 3)
Bit Width in Process Image: 8 inputs
Electrical Isolation: 500 V (K-bus/field potential)
Current Consumption (K-bus): Typ. 5 mA
Current Consumption (Power Contacts): Typ. 2 mA + load
Configuration: No address or configuration setting

Functionality & Features

Special Features:
– Fast 0.2 ms input filtering for high-speed processing
– Type 1/3 compatible for versatile signal interfacing
Status Indicators: LED per input channel
Power Contacts: Loop-through design
Pluggable Wiring: Compatible with all KSxxxx Bus Terminals
Wiring Type: 1-wire connection for compact field wiring

Electrical & Installation

Terminal Design: Compact terminal housing with signal LEDs
DIN Rail Mounting: 35 mm rail per EN 60715
Wiring Method: Spring-actuated terminals via screwdriver
Connection Cross-Section (KL-12-8pin):
– Solid: 0.08…2.5 mm²
– Flexible: 0.08…2.5 mm²
– Ferrule: 0.14…1.5 mm²
AWG Equivalent: AWG28…14 (solid/flex), AWG26…16 (ferrule)
Stripping Length: 8–9 mm
Max Current Load (Power Contacts): 10 A

Mechanical & Environmental

Dimensions (W × H × D): 12 × 100 × 68 mm
Net Weight: Approx. 55 g
Material: Polycarbonate
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing
Protection Rating: IP20
Installation Position: Variable
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27

Certifications & Compliance

CE Marked: Yes
UL, CCC, ATEX, IECEx, DNV GL: Certified
ATEX Certification: II 3 G Ex ec IIC T4 Gc
IECEx Certification: Ex ec IIC T4 Gc
RoHS & WEEE: Compliant

Key Features & Benefits

✅ Fast Response Inputs: 0.2 ms filter for ultra-fast signal acquisition.

✅ EN 61131-2 Type 1/3: Wide input voltage compatibility.

✅ Space-Saving Design: Only 12 mm wide for compact cabinets.

✅ LED Status Monitoring: Clear diagnostics on each input channel.

✅ 1-Wire Wiring: Simplified field connectivity.

✅ Certified for Global Use: CE, UL, ATEX, IECEx, DNV.
