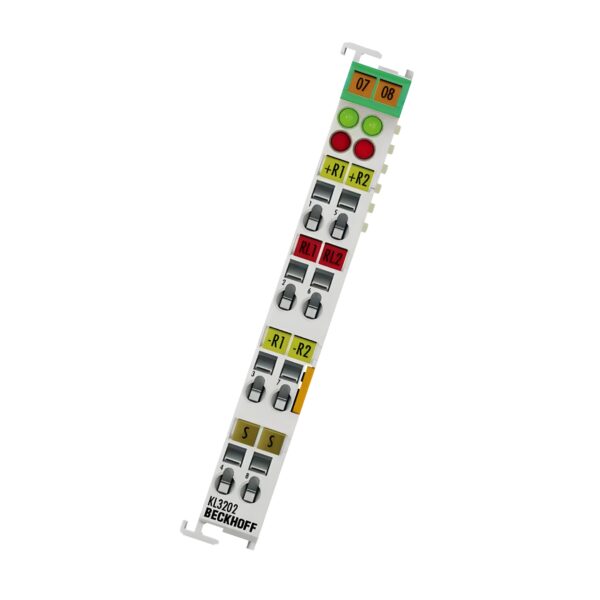

Beckhoff KL3202 Analog Input Terminal

The Beckhoff KL3202 is a high-precision 2-channel analog input terminal for connecting RTD temperature sensors such as Pt100, Pt200, Pt500, Pt1000, and Ni100/Ni120/Ni1000. This compact Bus Terminal supports both 2-wire and 3-wire connection methods, with integrated microprocessor-based linearization across the full temperature range. Ideal for accurate temperature monitoring in industrial automation systems.

Each channel offers 16-bit resolution, fast conversion, and diagnostic LEDs for quick sensor status feedback. The KL3202 operates directly via the K-bus without requiring power contacts, making it a versatile and compact temperature acquisition solution.

Technical Specifications

Part Number: KL3202 Beckhoff
Number of Inputs: 2
Sensor Types Supported: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, potentiometers

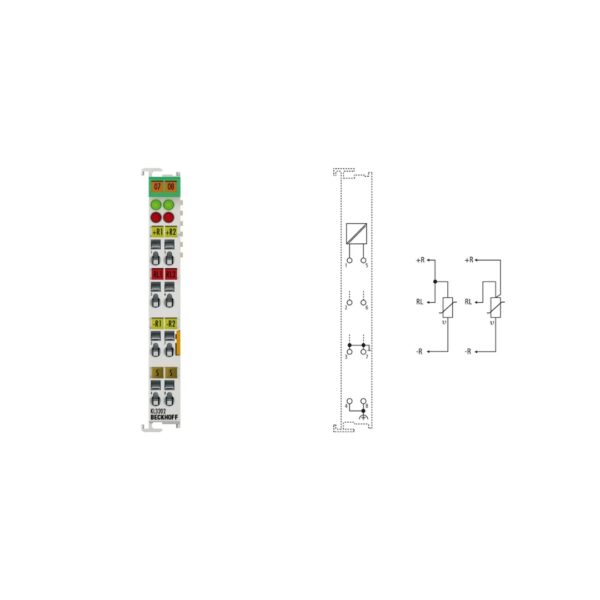

Connection Method: 2-wire or 3-wire (default: 3-wire)
Measuring Range: -200…+850°C (Pt), -60…+250°C (Ni)
Resolution: 0.1°C per digit
Measurement Error: < ±1°C
Conversion Time: ~250 ms
Measuring Current: Typ. 0.5 mA
Bit Width in Process Image: 2 × 16-bit data (2 × 8-bit control/status optional)
Configuration: Via Bus Coupler or controller
Special Features: Open-circuit recognition, microprocessor linearization

Electrical Characteristics

Power Supply: Supplied via K-bus
Current Consumption (K-bus): Typ. 60 mA
Electrical Isolation: 500 V (K-bus / signal voltage)
Power Contacts: Not required

Mechanical Specifications

Width: 12 mm
Height: 100 mm
Depth: 68 mm
Weight: Approx. 70 g
Material: Polycarbonate
Housing: Compact terminal housing with signal LEDs / KS pluggable wiring
Installation: DIN rail (35 mm), EN 60715
Wiring:
Solid: 0.08–2.5 mm², Flexible: 0.08–2.5 mm², Ferrule: 0.14–1.5 mm²
AWG Range: AWG28–14 (solid/flexible), AWG26–16 (ferrule)
Stripping Length: 8–9 mm
Max Current (Power Contacts): 10 A

Environmental Conditions

Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95% (non-condensing)
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
Protection Rating: IP20
Installation Position: Variable

Compliance & Approvals

Certifications: CE, CCC, UL, ATEX, IECEx, DNV GL
ATEX Marking: II 3 G Ex ec IIC T4 Gc
IECEx Marking: Ex ec IIC T4 Gc

Key Features

✅ High-accuracy RTD temperature measurement across wide ranges

✅ Microprocessor linearization for precise conversion

✅ Supports Pt and Ni sensors plus resistance measurement (10 Ω to 5 kΩ)

✅ Open-circuit recognition and diagnostic LED feedback

✅ Seamless integration into Beckhoff I/O systems via K-bus

✅ Ultra-compact 12 mm wide housing saves panel space
