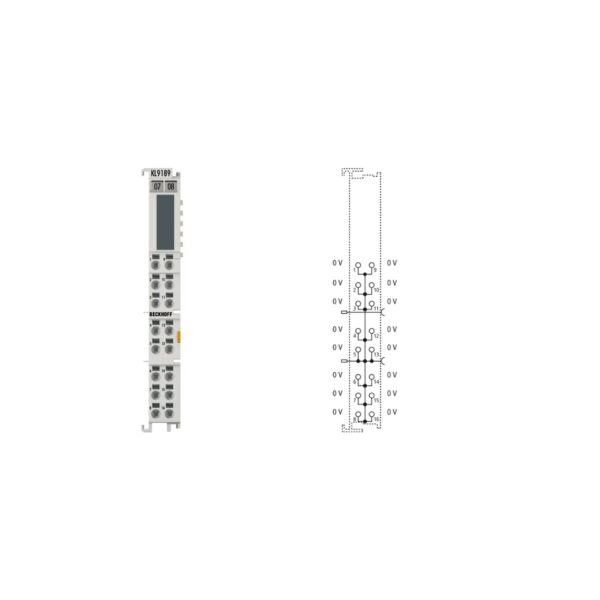

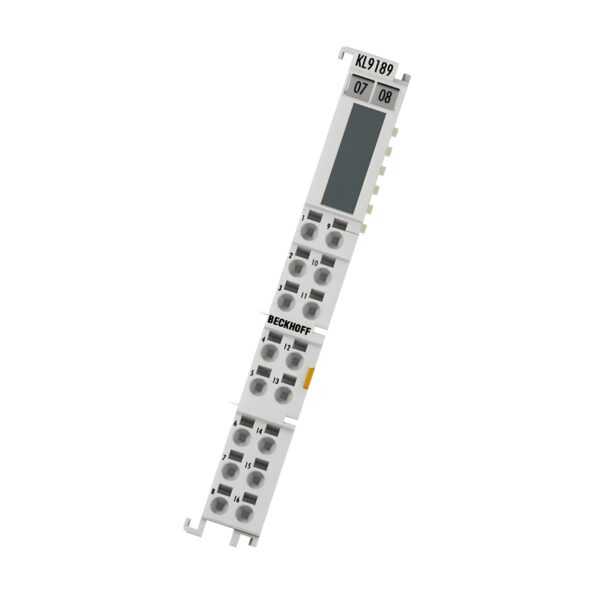

Beckhoff KL9189 Potential Distribution Terminal

The Beckhoff KL9189 is a High-Density (HD) potential distribution terminal that provides 16 individual 0 V DC connection points in a compact 12 mm housing. It enables clean and efficient common ground distribution within control cabinets without requiring additional terminal blocks or complex wiring.

Designed for left-side mounting next to Bus Terminals with power contact (excluding PE), the KL9189 ensures organized grounding in distributed I/O systems. With electrical isolation and K-bus loop-through functionality, it’s a robust addition to any Beckhoff I/O station.

Technical Specifications

Model: KL9189 Beckhoff
Terminal Type: Potential distribution terminal
Nominal Voltage: ≤ 60 V DC
Number of Outputs: 16 × 0 V contacts
Current Load: ≤ 10 A
Electrical Isolation: Yes
Connection Facility to Additional Power Contact: 16
K-bus Loop-Through: Yes
Bit Width in Process Image: 0
Current Consumption (K-bus): –
Integrated Fuse: None
Power LED / Fault LED / Diagnostics: Not available

Functionality & Features

Purpose: Internal distribution of 0 V (ground) potential
Mounting Position: Left of terminals with power contact (no PE support)
Compatibility: Not mountable next to terminals without power contact
Terminal Housing: High-Density (HD) format
Electrical DIN Rail Connection: Not applicable
Special Feature: 16-point shared 0 V potential distribution

Electrical & Installation

DIN Rail Mounting: 35 mm, EN 60715 standard
Connection Method:
– Solid conductor: direct plug-in
– Fine-stranded/ferrule: spring actuation with screwdriver
Connection Cross-Section:
– Solid (s): 0.08…1.5 mm²
– Stranded (st): 0.25…1.5 mm²
– Ferrule (f): 0.14…0.75 mm²
Stripping Length: 8–9 mm
Max Current Load (Power Contacts): 10 A
Side-by-Side Mounting: Yes (only next to terminals with power contact)

Mechanical & Environmental

Dimensions (W × H × D): 12 × 100 × 68 mm
Weight: Approx. 60 g
Material: Polycarbonate
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing
Protection Rating: IP20
Installation Position: Variable

Certifications & Compliance

CE Marked: Yes
UL, CCC, ATEX, IECEx, DNV GL: Certified
ATEX Certification: II 3 G Ex ec IIC T4 Gc
IECEx Certification: Ex ec IIC T4 Gc
RoHS & WEEE: Compliant

Key Features & Benefits

✅ 16 x 0 V DC Terminals: Reliable and organised ground distribution.

✅ High-Density Layout: Compact 12 mm housing with 16 connections.

✅ Efficient Cabinet Wiring: Replaces separate ground terminal blocks.

✅ Tool-Free Installation: Spring terminals and direct plug-in wiring.

✅ Electrically Isolated: For enhanced system integrity.

✅ Global Certification: CE, UL, ATEX, IECEx, DNV GL.
