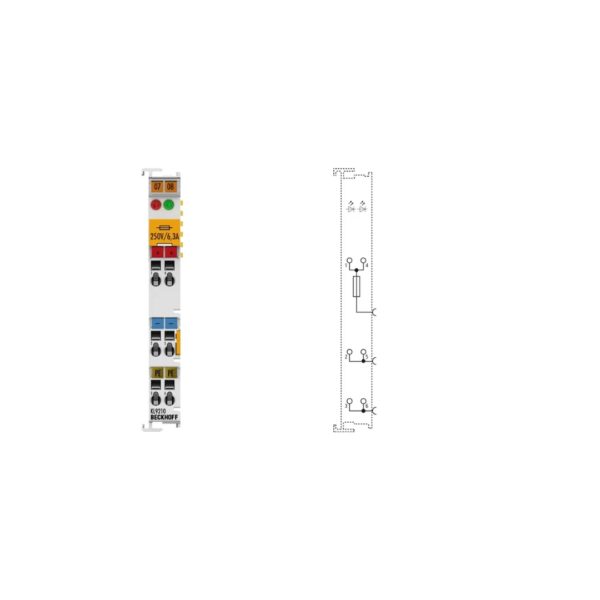

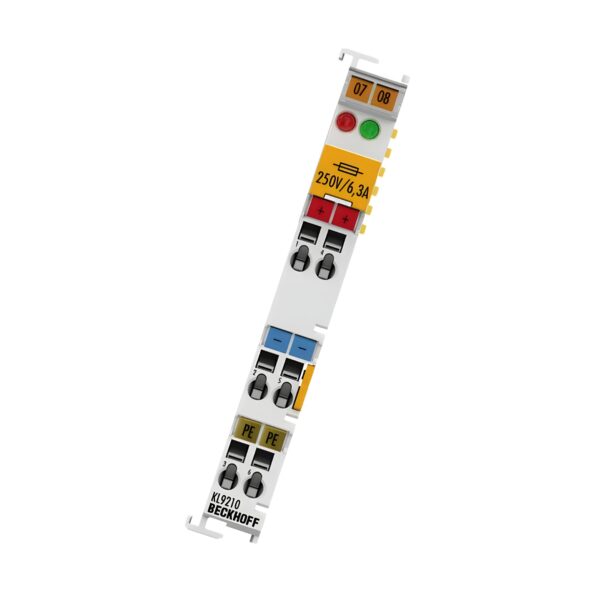

Beckhoff KL9210 Power Feed Terminal

The Beckhoff KL9210 is a diagnostic-enabled power feed terminal designed to establish and monitor 24 V DC potential groups in modular automation systems. Equipped with an integrated 6.3 A fine-wire fuse, the KL9210 not only distributes power to the field but also allows real-time monitoring of the supply voltage via two input bits reported to the Bus Coupler.

It features green and red LEDs for status and fault indication, 500 V electrical isolation, and supports seamless integration alongside terminals with or without power contacts. Ideal for building intelligent and fault-tolerant control architectures.

Technical Specifications

Part Number: KL9210 Beckhoff
Function: Potential supply terminal with diagnostics
Nominal Voltage: 24 V DC
Current Load Capacity: ≤ 10 A
Integrated Fuse: Fine-wire fuse, up to 6.3 A
Electrical Isolation: Yes
Renewed Infeed: No
K-bus: Looped through
Reported to K-bus: Yes (2-bit diagnostics)
Bit Width in Process Image: 2
Diagnostics: Yes (voltage and fault reporting)
Power LED: Green
Defect LED: Red

Power & Consumption

Power Supply: 24 V DC via external supply
Current Load (Power Contacts): Imax: 10 A
Current Consumption (K-bus): Typ. 10 mA
Electrical Isolation: 500 V (field/K-bus isolation)

Mechanical Specifications

Dimensions (W x H x D): 12 mm × 100 mm × 70 mm
Weight: Approx. 55 g
Material: Polycarbonate
Installation: 35 mm DIN rail (EN 60715)
Design Form: Compact terminal with signal LEDs
Side-by-Side Mounting: With terminals with or without power contacts
Pluggable Wiring: Compatible with all KSxxxx terminals
Wiring Method:
– Solid (s): 0.08…2.5 mm²
– Flexible (st): 0.08…2.5 mm²
– Ferrule (f): 0.14…1.5 mm²
AWG Range:
– Solid/Flexible: AWG28…14
– Ferrule: AWG26…16
Stripping Length: 8…9 mm

Environmental Conditions

Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, no condensation
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
Protection Rating: IP20
Installation Position: Variable

Certifications & Compliance

Approvals: CE, CCC, UL, ATEX, IECEx, DNV GL
Ex Marking:
– ATEX: II 3 G Ex ec IIC T4 Gc
– IECEx: Ex ec IIC T4 Gc

Features & Benefits

✅ 24 V Power Distribution: Enables safe setup of isolated potential groups.

✅ Diagnostic Reporting: Sends live voltage and fault status to the controller.

✅ Integrated 6.3 A Fuse: Built-in overcurrent protection for downstream devices.

✅ LED Indicators: Green and red LEDs show status and errors at a glance.

✅ K-Bus Compatible: Loop-through with 2-bit process image width.

✅ Compact Housing: Just 12 mm wide – optimized for space-saving panel design.
