Danfoss 131B0533 Inverter Drive – 5.5kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131B0533) is a high-performance frequency converter designed for precise motor control in industrial applications. With a 5.5 kW power rating, PROFIBUS DP connectivity, and an IP20 chassis, it provides seamless integration into automation systems while ensuring energy efficiency and high reliability.

Technical Specifications

Model: 131B0533 (FC-302P5K5T5E20H1XXXXXXSXXXXA0BXCXXXXDX)
Type: Variable Frequency Drive (VFD) for Industrial Applications

Power & Performance

• Power Rating: 5.5 kW / 7.5 HP
• Voltage Range: 380 – 500 VAC
• Phase: Three-phase
• kVA Rating: 9.01 kVA
• Power Loss (HO Mode): 187 W
• Continuous Current (HO Mode): 13 A
• Intermittent Current (HO Mode): 20.8 A

Build & Design

• Series: VLT® AutomationDrive FC 302
• Enclosure Rating: IP20 / Chassis
• RFI Filter: Included (Class H1)
• Brake Chopper: Not included
• Local Control Panel (LCP): Not included
• PCB Coating: Not coated
• Mains Option: None

Connectivity & Expansion

• A Option: PROFIBUS DP MCA 101
• B Option: Not included
• C0 Option (MCO): Not included
• C1 Option: Not included
• C Option Software: Not included
• D Option: Not included

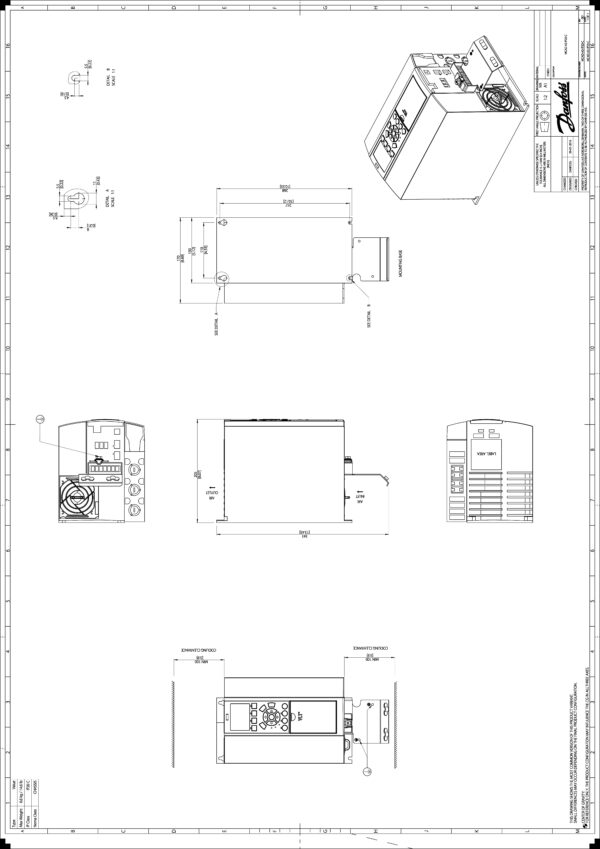

Physical Specifications

• Frame Size: A3
• Height: 268 mm
• Width (No C Options): 130 mm
• Width (With Two C Options): 190 mm
• Depth: 205 mm
• Depth (With Option A/B): 220 mm
• Gross Weight: 7.08 kg
• Net Weight: 6.55 kg
• EAN: 5702427153752

Key Features & Benefits:

✅ PROFIBUS DP MCA 101: Seamless industrial communication.

✅ Compact & Lightweight Design: Ideal for control panel installations.

✅ Advanced RFI Filtering: Ensures compliance with EMC standards.

✅ Flexible Configuration: Expandable with optional modules.
