Danfoss 131B1016 Inverter Drive – 7.5kW, IP20
The Danfoss VLT® AutomationDrive FC 301 (131B1016) is a high-performance frequency converter designed for precise motor control in industrial applications. With a 7.5 kW power rating, brake chopper, integrated RFI filter, and an IP20 chassis, it ensures energy-efficient operation while providing reliable performance for various automation systems.
Technical Specifications
Model: 131B1016 (FC-301P7K5T4E20H2BGXXXXSXXXXAXBXCXXXXDX)
Type: Variable Frequency Drive (VFD) for Industrial Applications
Power & Performance
- Power Rating: 7.5 kW / 10 HP
- Voltage Range: 380 – 480 VAC
- Phase: Three-phase
- kVA Rating: 11.1 kVA
- Power Loss (HO Mode): 225 W
- Continuous Current (HO Mode): 16 A
- Intermittent Current (HO Mode): 25.6 A
Build & Design
- Series: VLT® AutomationDrive FC 301
- Enclosure Rating: IP20 / Chassis
- RFI Filter: Included (Class H2)
- Brake Chopper: Included
- Local Control Panel (LCP): Graphical
- PCB Coating: Not coated
- Mains Option: None
Connectivity & Expansion
- A Option: Not included
- B Option: Not included
- C0 Option (MCO): Not included
- C1 Option: Not included
- C Option Software: Not included
- D Option: Not included

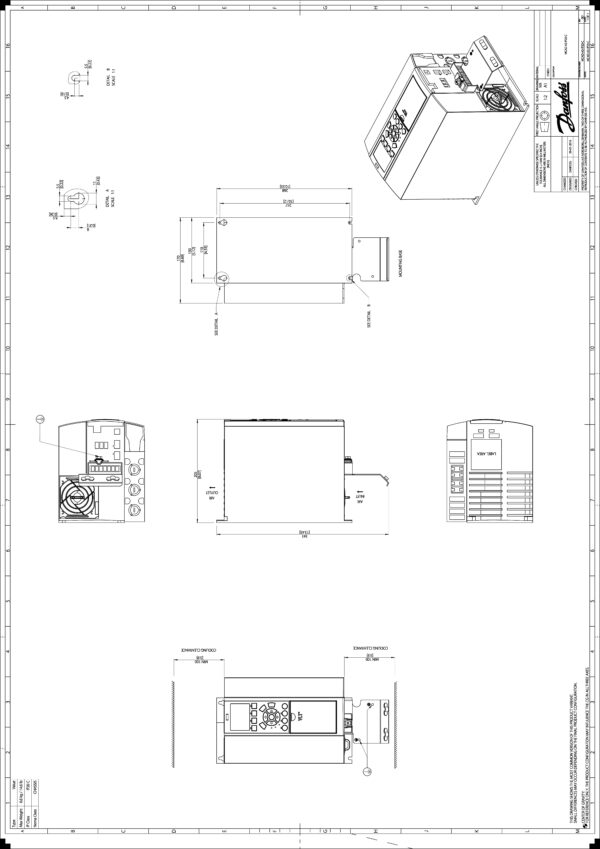

Physical Specifications
- Frame Size: A3
- Height: 268 mm
- Width (No C Options): 130 mm
- Depth: 205 mm
- Depth (With Option A/B): 220 mm
- Gross Weight: 6.54 kg
- Net Weight: 6.01 kg
- EAN: 5702427156425
Key Features & Benefits:
✅ Integrated Brake Chopper: Ensures smooth deceleration and braking.
✅ Graphical LCP Panel: Easy monitoring and control.
✅ Compact & Lightweight Design: Ideal for control panel installations.
✅ Advanced RFI Filtering: Ensures compliance with EMC standards.
✅ Flexible Configuration: Expandable with optional modules.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer the best Danfoss 131B1016 prices, with same-day and next-day shipping available across the UK & Europe.
For more details on the 131B1016 VFD, or to speak with an expert about your motor control needs, contact Drive Outlet Megastore.
Our team is ready to help you find the perfect automation drive solution for your industrial and manufacturing needs. Get in touch today!
