Danfoss 131B1859 Inverter Drive – 18.5kW, IP20

The VLT® AutomationDrive FC 302 (131B1859) is an industry-leading motor control solution, delivering high-performance automation, energy efficiency, and operational reliability. With its graphical interface, rugged IP55 protection, and powerful control features, this drive is perfect for industrial applications requiring precision and durability.

Technical Specifications

Model: 131B1859 (FC-302P18KT5E55H2XGXXXXSXXXXAXBXCXXXXDX)
Type: High-Efficiency Industrial Drive for Automation & Motor Control

Power & Performance

• Power Rating: 18.5 kW / 25 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H2, RFI Filter

Build & Design

• Enclosure Type: IP55 / Type 12 (E55)
• Frame Size: B2
• Coating PCB: Not Coated PCB
• Brake Chopper: No Brake Chopper
• Local Control Panel (LCP): Graphical LCP

Physical Specifications

• Gross Weight: 27.94 kg
• Net Weight: 26.99 kg
• Volume: 144.67 L

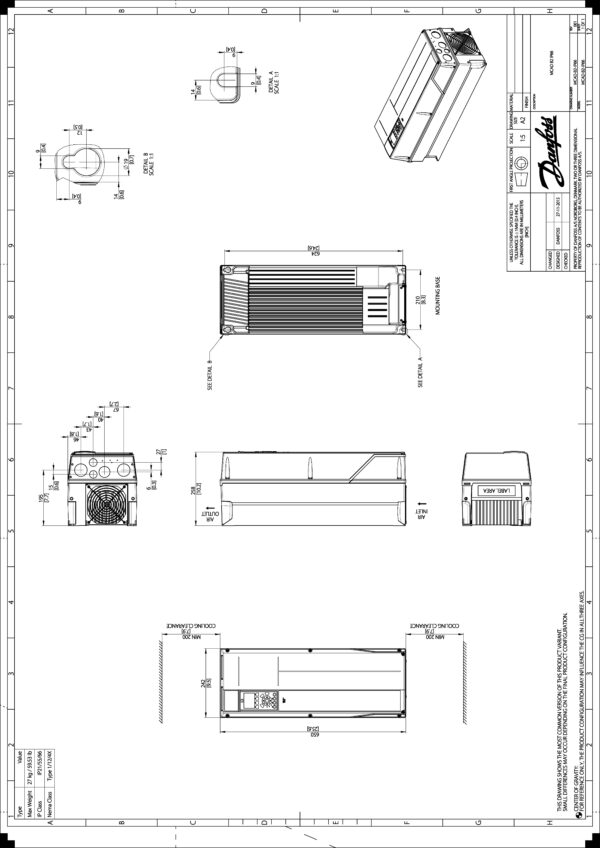

• Dimensions:
  • Height: 664 mm
  • Width (no C options): 243 mm
  • Depth: 261 mm
  • Depth with Option A/B: 261 mm
• EAN: 5702427213548

Additional Options & Features

• Mains Option: No Mains Option
• Software Release: Latest Standard Software (SXXX)
• Standard Cable Entries: Included
• A Option: No A Option (AX)
• B Option: No B Option (BX)
• C Option Software: No Software Option (XX)
• D Option: No D Option (DX)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized Motor Control: Designed for industrial automation with energy efficiency and precision.

✅ Advanced RFI Protection: Built-in H2 RFI filter ensures compliance with EMC standards.

✅ User-Friendly Graphical LCP: Intuitive Local Control Panel (LCP) for easy configuration and monitoring.

✅ Durable IP55 / Type 12 Enclosure: Resistant to dust, water, and challenging conditions.

✅ Compact & Robust Build: Ideal for space-constrained industrial setups.
