Danfoss 131G5556 Inverter Drive – 5.5kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131G5556) is a robust and efficient motor control solution designed for industrial automation applications. With a 5.5 kW (7.5 HP) power rating, integrated PROFIBUS DP, graphical local control panel, and MCB-107 24V DC backup, it ensures seamless motor operation and high efficiency.

Technical Specifications

Model: 131G5556 (FC-302P5K5T5E20H2XGXXXXSXXXXA0BXCXXXXD0)
Type: Low Voltage AC Drive for Industrial Automation

Power & Performance

• Power Rating: 5.5 kW / 7.5 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H2 (RFI Class Filter)

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Coating PCB: Not coated
• Frame Size: A3
• Local Control Panel (LCP): Graphical Local Control Panel (G)

Electrical Specifications

• Continuous Current (High Overload – HO): 13 A
• Intermittent Current (High Overload – HO): 20.8 A
• Power Loss (High Overload – HO): 187 W
• kVA Rating: 9.01

Physical Specifications

• Gross Weight: 6.72 kg
• Net Weight: 6.19 kg
• Volume: 27.246 L

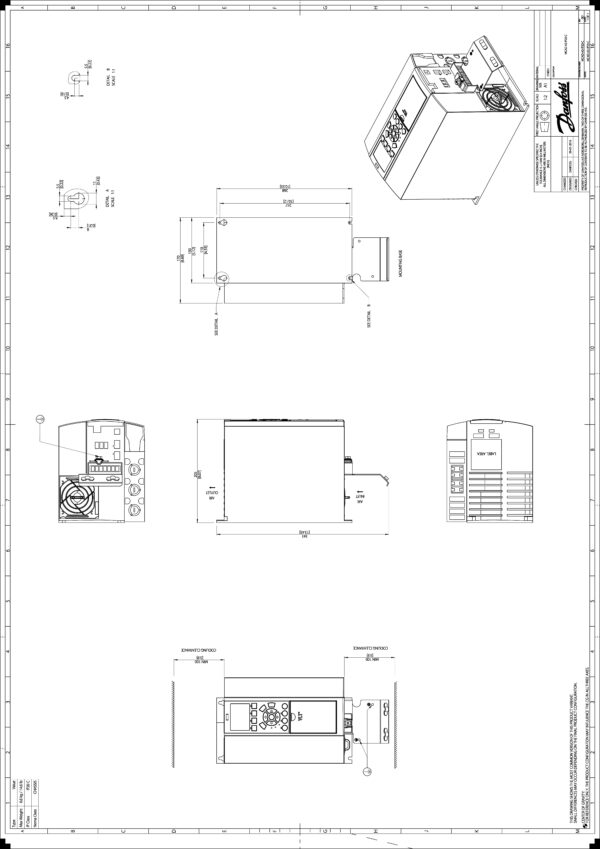

• Dimensions (H x W x D): 268 mm x 130 mm x 205 mm
• Depth with Option A/B: 220 mm
• EAN: 5702427662377

Additional Options & Features

• A Option: PROFIBUS DP MCA 101 (A0)
• B Option: No B Option (BX)
• C0 Option: No C0 Option (CX)
• D Option: MCB-107 24V DC Backup (D0)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized for Industrial Applications: Ideal for manufacturing, conveyors, and automated systems.

✅ Graphical Control Panel: Intuitive interface for easy monitoring and setup.

✅ Integrated PROFIBUS DP: Provides seamless industrial communication.

✅ High-Efficiency Operation: Reduces energy consumption and extends motor life.

✅ Compact & Durable Design: Space-saving enclosure for easy installation.
