Danfoss 131H1601 Inverter Drive – 22kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131H1601) is built for advanced motor control and high-efficiency operation in industrial automation. With 22.0 kW (30 HP) capacity, graphical LCP, and coated PCB for enhanced durability, this drive delivers seamless performance, reliability, and energy savings in demanding applications.

Technical Specifications

Model: 131H1601 (FC-302P22KT5E20H2XGCXXXSXXXXAXBXCXXXXDX)
Type: High-Efficiency Industrial Drive for Automation & Motor Control

Power & Performance

• Power Rating: 22.0 kW / 30.0 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H2, RFI Filter

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: B4
• Coating PCB: Coated PCB
• Brake Chopper: No Brake Chopper
• Local Control Panel (LCP): Graphical LCP

Physical Specifications

• Gross Weight: 19.85 kg
• Net Weight: 18.89 kg
• Calculated Gross Weight: 19.85 kg
• Calculated Net Weight: 18.89 kg

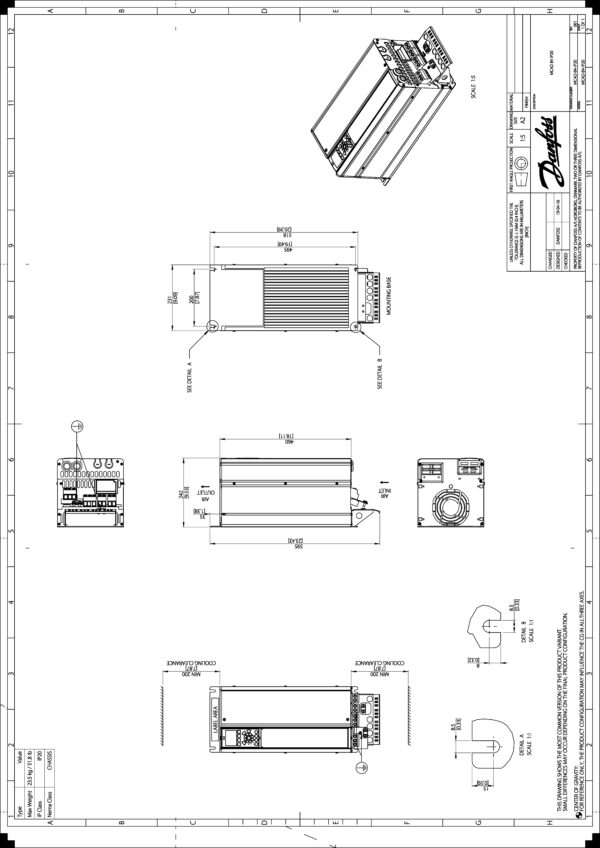

• Dimensions:
  • Height: 516 mm
  • Width (no C options): 229 mm
  • Depth: 242 mm
  • Depth with Option A/B: 242 mm
• EAN: 5702427518155

Additional Options & Features

• Mains Option: No Mains Option
• Software Release: Latest Standard Software (SXXX)
• Standard Cable Entries: Included
• A Option: No A Option (AX)
• B Option: No B Option (BX)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized Motor Control: High-performance drive for industrial automation with energy efficiency.

✅ Graphical LCP for Easy Operation: Intuitive interface for real-time monitoring and configuration.

✅ Coated PCB for Enhanced Durability: Protection against dust, humidity, and industrial contaminants.

✅ Compact & Rugged Design: IP20 chassis for easy integration into control panels.

✅ Advanced RFI Protection: Built-in H2 RFI filter ensures compliance with EMC standards.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we provide the best Danfoss 131H1601 prices, with same-day and next-day shipping available across the UK & Europe.

For more details on the 131H1601 Automation Drive, or to speak with an expert about the best drive for your application, contact Drive Outlet Megastore.

Our team is ready to help you find the perfect drive solution for your industrial automation needs. Get in touch today!
