Danfoss 131H2696 Inverter Drive – 55kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131H2696) is designed for high-performance motor control, energy savings, and industrial automation applications. With a 55 kW (75 HP) capacity, an IP20-rated chassis, and advanced communication options, this drive is ideal for large-scale industrial automation, heavy-duty motor applications, and manufacturing systems.

Technical Specifications

Model: 131H2696 (FC-302P55KT5E20H1XXXXXXSXXXXA0BXCXXXXD0)
Type: High-Efficiency Industrial Automation Drive

Power & Performance

• Power Rating: 55 kW / 75 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H1, RFI Class A1/B (C1)
• Brake Chopper: Not included

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: C4
• Coating PCB: Not coated PCB
• Local Control Panel (LCP): No Local Control Panel (X)

Physical Specifications

• Gross Weight: 51.99 kg
• Net Weight: 50.4 kg
• Calculated Gross Weight: 51.99 kg
• Calculated Net Weight: 50.4 kg

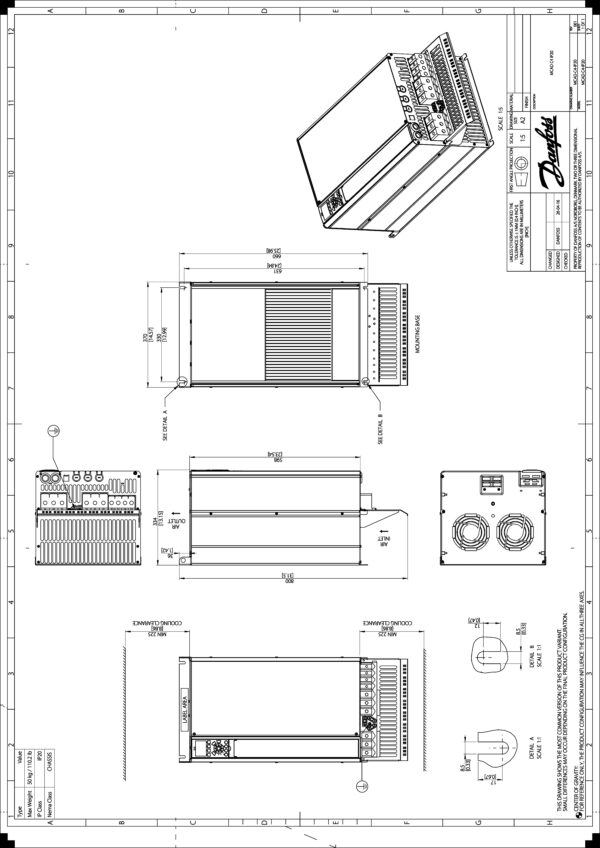

• Dimensions:
  • Height: 660 mm
  • Width (no C options): 370 mm
  • Depth: 333 mm
  • Depth with Option A/B: 333 mm
• EAN: 5702427529748

Additional Options & Features

• Mains Option: No Mains Option (X)
• Software Release: Latest Standard Software (SXXX)
• Standard Cable Entries: Standard Cable Entry (X)
• A Option: PROFIBUS DP MCA 101 (A0)
• B Option: No B Option (BX)
• D Option: MCB-107 24V DC Backup (D0)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Energy-Efficient Performance: Designed to optimize motor control and reduce energy costs.

✅ Compact & Durable: Robust IP20 chassis design for industrial use.

✅ Advanced RFI Filtering: Reduces electrical noise for better system integration.

✅ Industrial Automation-Ready: Ideal for conveyors, pumps, fans, and process control applications.
