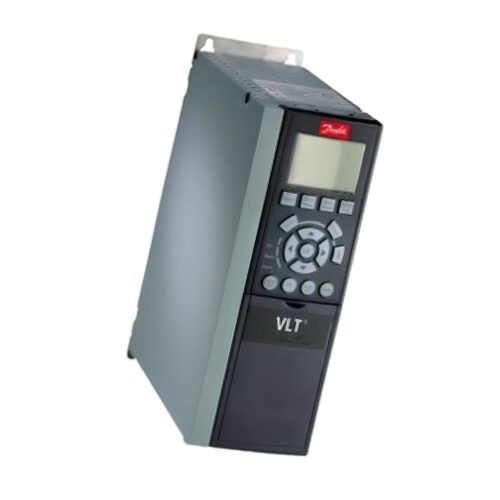

Danfoss 131H7149 Inverter Drive – 55kW, IP20

The Danfoss VLT® AutomationDrive FC 300 (131H7149) is designed for high-performance motor control in industrial automation applications, ensuring precision, efficiency, and durability.

With a 55 kW (75 HP) capacity, an IP20-rated enclosure, and integrated brake chopper, this drive offers seamless operation and energy savings in manufacturing, HVAC, and process industries.

Technical Specifications

Model: 131H7149 (FC-302P55KT5E20H2BNXXXXSXXXXAXBXCXXXXDX)
Type: High-Performance Drive for Industrial Applications

Power & Performance

• Power Rating: 55 kW / 75 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H2, RFI Filter
• Brake Chopper: Included (B)

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: C4
• Coating PCB: Not Coated
• Local Control Panel (LCP): Numerical LCP (N)

Physical Specifications

• Gross Weight: 48.51 kg
• Net Weight: 46.92 kg
• Calculated Gross Weight: 48.51 kg
• Calculated Net Weight: 46.92 kg
• Dimensions:
  • Height: 660 mm
  • Width (no C options): 370 mm
  • Depth: 333 mm
  • Depth with Option A/B: 333 mm
• EAN: 5702427576056

Additional Options & Features

• Mains Option: No Mains Option (X)
• Software Release: Latest Standard Software (SXXX)
• Standard Cable Entries: Standard Cable Entry (X)
• A Option: No A Option (AX)
• B Option: No B Option (BX)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Compact & Durable: IP20 chassis design for industrial environments.

✅ High-Performance Motor Control: Ensures efficiency and precision in automation.

✅ Brake Chopper Included: Enhanced braking capabilities for demanding applications.

✅ Numerical Control Panel: Simple and effective user interface for configuration.

✅ Reliable & Energy-Efficient: Optimized for long-term industrial use with reduced energy consumption.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we provide the best Danfoss 131H7149 prices, with same-day and next-day shipping available across the UK & Europe.

For more details on the 131H7149 AutomationDrive, or to speak with an expert about the best drive for your application, contact Drive Outlet Megastore.

Our team is ready to help you find the perfect drive solution for your industrial automation needs. Get in touch today!
