Danfoss 134L5441 Inverter Drive – 1.5kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (134L5441) is a compact and efficient AC drive designed for industrial automation, pumps, conveyors, and motor control. Featuring a 1.5 kW (2.0 HP) power rating, Powerlink MCA 123 communication, and advanced motor efficiency control, this drive ensures seamless integration and reliable performance. With intelligent automation features, it optimizes system performance, reduces operational costs, and enhances energy efficiency.

Technical Specifications

Model: 134L5441 (FC-302P1K5T5E20H1XXXXXXSXXXXAYBXCXXXXDX)
Type: High-Performance AC Drive for Industrial Applications

Power & Performance

• Power Rating: 1.5 kW / 2.0 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H1 (RFI Class A1/B (C1))

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: A2
• Coating PCB: Not Coated
• Brake Chopper: Not Included
• Local Control Panel (LCP): Not Included

Physical Specifications

• Gross Weight: 5.02 kg
• Net Weight: 4.5 kg
• Volume: 21.569 L

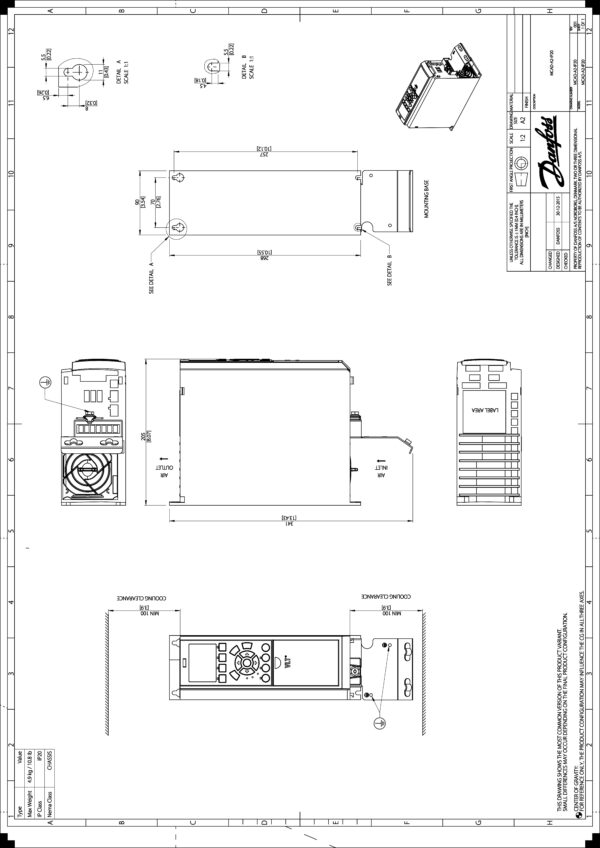

• Dimensions (H x W x D): 268 mm x 90 mm x 205 mm
• Width with Two C Options: 150 mm
• Depth with Option A/B: 220 mm
• EAN: 5710107806171

Performance & Efficiency

• Power (160% Overload – HO Mode): 1.5 kW
• kVA: 2.84
• Power Loss (HO Mode): 62 W

Electrical Ratings

• Continuous Current (HO Mode): 4.1 A
• Intermittent Current (HO Mode): 6.56 A

Additional Options & Features

• Mains Option: No Mains Option
• Software Release: Latest Standard Software (SXXX)
• Software Language Pack: Standard Language Pack
• Communication Option: Powerlink MCA 123 (AY)
• Standard Cable Entries: Included
• No Additional Adaptation Required

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized for Industrial Applications: Ideal for conveyors, pumps, fans, and automation systems.

✅ Energy-Efficient Performance: Reduces power consumption and extends motor lifespan.

✅ Compact & Lightweight Design: IP20-rated for easy panel mounting and installation.

✅ Advanced Communication Support: Integrated Powerlink MCA 123 for seamless networking.

✅ Quick Setup & Commissioning: Pre-configured drive parameters for hassle-free integration.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer the best Danfoss 134L5441 prices, with same-day and next-day shipping across the UK & Europe.

For more information about the 134L5441 Inverter Drive, or expert assistance in selecting the right product for your needs, contact Drive Outlet Megastore.

Our knowledgeable team is ready to help you find the ideal AC drive solution for your industrial applications. Contact us today!
