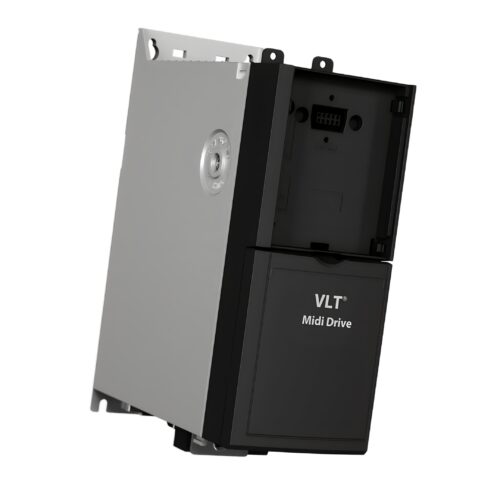

Danfoss 134U2998 Inverter Drive – 3kW, IP20

The Danfoss VLT® Midi Drive FC 280 (134U2998) is designed for efficient motor control in industrial automation and machine-building applications.

With a 3.0 kW (4.0 HP) capacity, an IP20-rated chassis, and integrated CAN Open connectivity, this drive ensures seamless operation in factory automation, conveyors, and machine processes.

Technical Specifications

Model: 134U2998 (FC-280P3K0T4E20H1BXCXXXSXXXXA6)
Type: Midi Drive – Exchange Unit

Power & Performance

• Power Rating: 3.0 kW / 4.0 HP
• Phase: Three-phase
• Mains Voltage: 380 – 480 VAC
• RFI Filter: EMC Cat C1(200V) / C2(400V)
• Brake Chopper: Included

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: K2
• Coating PCB: Coated PCB
• Display: No Display

Physical Specifications

• Gross Weight: 4.5 kg
• Net Weight: 3.98 kg
• Calculated Gross Weight: 3.9 kg
• Calculated Net Weight: 3.6 kg
• Dimensions:
  • Height: 272.5 mm
  • Width (no C options): 90 mm
  • Depth: 168 mm
• EAN: 5710107990177

Additional Options & Features

• Mains Option: No Mains Options
• Software Release: Latest Standard Software (SXXX)
• Adaptation A/B: No Adaptation
• Control Card: Integrated CAN Open (A6)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Integrated Brake Chopper: Ideal for applications requiring controlled braking.

✅ CAN Open Communication: Enhanced connectivity for industrial networks.

✅ Compact & Durable: IP20 chassis design for cabinet installations.

✅ Energy-Efficient Performance: Reduces energy consumption while optimizing motor control.

✅ Easy to Install & Operate: Simplifies integration into automation systems.
