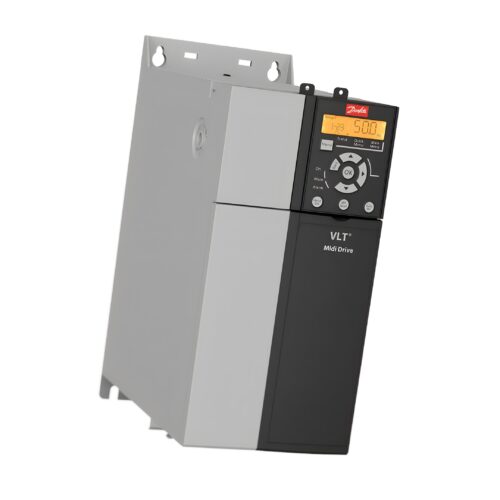

Danfoss 134U7728 Inverter Drive – 0.55kW, IP20
The Danfoss VLT® Midi Drive FC 280 (134U7728) is designed for precise motor control, energy efficiency, and robust performance in industrial automation systems.
With 0.55 kW (0.75 HP) capacity, integrated brake chopper, and a compact IP20 chassis, this drive ensures seamless integration and reliability in industrial applications.
Technical Specifications
Model: 134U7728 (FC-280PK55T4E20H1BXCXXXSXXXXAL)
Type: Compact Variable Frequency Drive (VFD) for Industrial Applications
Power & Performance
- Power Rating: 0.55 kW / 0.75 HP
- Phase: Three-phase
- Mains Voltage: 380 – 480 VAC
- RFI Filter: H1, EMC Cat C1 (200V) / C2 (400V)
Build & Design
- Enclosure Type: IP20 / Chassis (E20)
- Frame Size: K1
- Coating PCB: Coated PCB
- Brake Chopper: Included
- Display: Not Included
- Control Card: Integrated PROFINET
Physical Specifications
- Gross Weight: 3.16 kg
- Net Weight: 2.73 kg
- Volume: 16.53 L
- Dimensions:
- Height: 210 mm
- Width (no C options): 75 mm
- Depth: 168 mm
- EAN: 5710108037789
Additional Options & Features
- Mains Option: No Mains Option
- Software Release: Latest Standard Software (SXXX)
- A Option: No Adaptation (X)
- B Option: No Adaptation (X)
Compliance & Standards
- ECCN EU: Y901
- ECCN US: 3A999.a
Key Features & Benefits:
✅ Integrated Brake Chopper: Improves braking performance and energy efficiency.
✅ Compact & Space-Saving: Ideal for panel installations.
✅ PROFINET Communication: Enables seamless network integration.
✅ Coated PCB for Harsh Environments: Enhances durability and longevity.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we provide the best Danfoss 134U7728 prices, with same-day and next-day shipping available across the UK & Europe.
For more details on the 134U7728 Midi Drive, or to speak with an expert about the best drive for your application, contact Drive Outlet Megastore.
Our team is ready to help you find the perfect drive solution for your industrial automation needs. Get in touch today!
