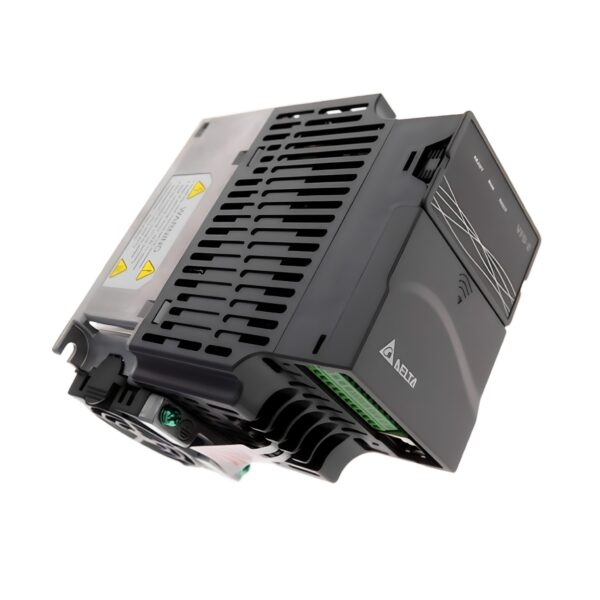

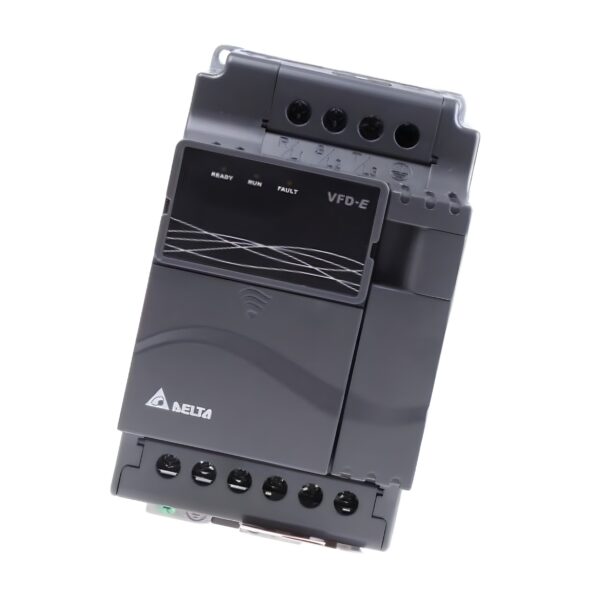

Delta VFD015E43A Inverter Drive – 1.5kW, 3PH, IP20
The Delta VFD015E43A is a compact AC micro drive from the VFD-E Series, rated for 2HP (1.5kW) motors at 460V. Designed for low-horsepower industrial applications, it features sensorless vector control, an integrated dynamic braking transistor, and a built-in PLC for basic logic execution. Though now discontinued, this drive is replaced by the Delta VFD4A2MS43ANSAA from the MS300 series.
Technical Specifications
- Model: VFD015E43A Delta
- Series: VFD-E
- Function: Sensorless Vector AC Micro Drive with PLC
- Motor Power: 2 HP / 1.5 kW
- Input Voltage: 460 V AC (380–480 V Range)
- Input Phase: 3-Phase
- Output Current: 4.2 A (CT)
- Max Frequency: 600 Hz
- Braking Types: DC Injection, Dynamic Braking
Electrical Characteristics
- Motor Control: Open Loop Vector (Sensorless Vector)
- Closed Loop: Not Supported
- Dynamic Brake Transistor: Included
- AC Line Regeneration: Not Supported
- Operator Controls: Keypad Sold Separately
- LED Display: Status Indicator Included
- Built-In PLC: Supports simple ladder logic

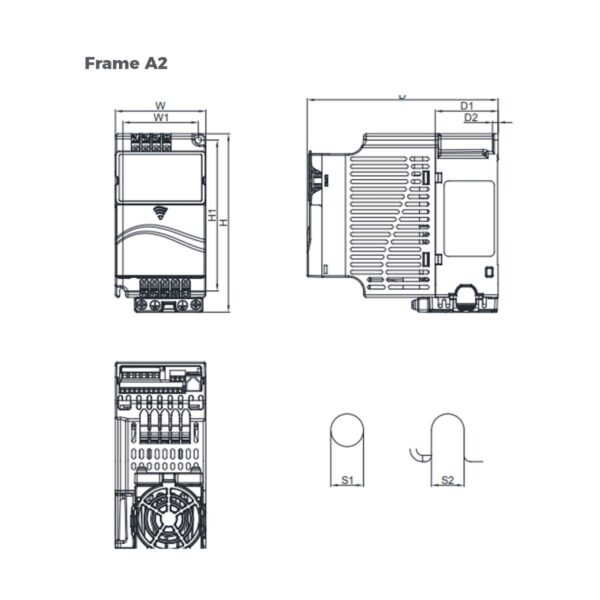

Mechanical & Installation
- Enclosure Rating: IP20
- Frame Size: A
- Height: 5.59 in (142 mm)
- Width: 2.83 in (72 mm)
- Depth: 5.98 in (152 mm)
- Mounting: Panel-mounted (optional DIN rail kit available)
Replacement & Compatibility
- Product Status: Discontinued
- Recommended Replacement: Delta VFD4A2MS43ANSAA (MS300 Series)
- Compatibility Note: Confirm mounting and electrical specs on the replacement drive page
Key Features & Benefits
✅ Sensorless Vector Control: Efficient torque delivery without encoder feedback.
✅ Compact & Modular: Ideal for tight panels with extension module options.
✅ Dynamic Braking: Transistor built-in, external resistor required for full braking.
✅ Built-in PLC: Supports programmable ladder logic for custom automation.
✅ Easy Monitoring: LED status indicator and optional keypad interface.
