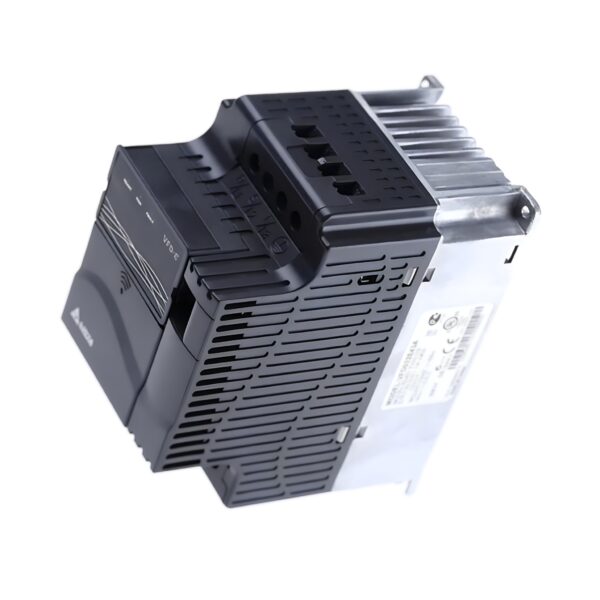

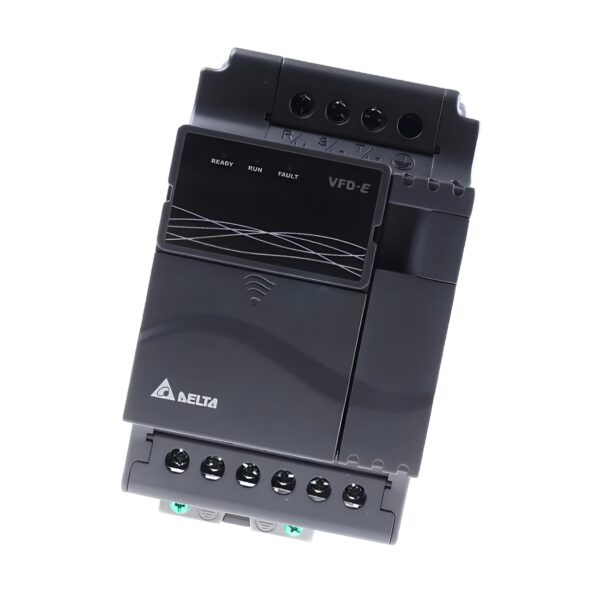

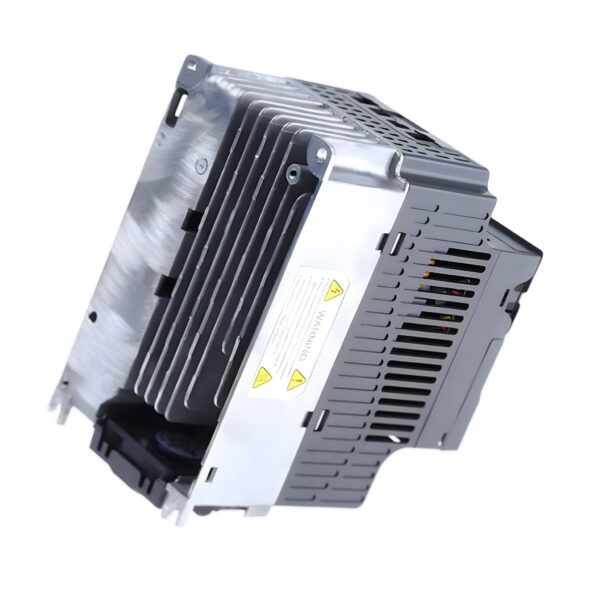

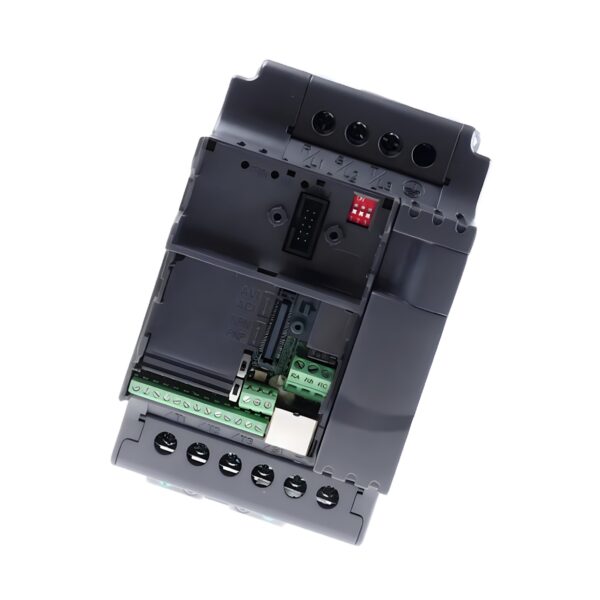

Delta VFD022E43A Inverter Drive – 2.2kW, 3PH, IP20
The Delta VFD022E43A is a 3HP (2.25kW) AC micro drive from the VFD-E Series, built for compact, low-horsepower industrial applications. It offers sensorless vector control, integrated dynamic braking, and a modular architecture with built-in PLC functionality. Though discontinued, this reliable IP20-rated inverter is replaced by the MS300 Series VFD5A5MS43ANSAA model.
Technical Specifications
- Model: VFD022E43A Delta
- Series: VFD-E
- Function: Sensorless Vector AC Micro Drive with PLC
- Motor Power: 3 HP / 2.25 kW
- Input Voltage: 460 V AC (380–480 V Range)
- Input Phase: 3-Phase
- Output Current: 5.5 A (CT)
- Max Frequency: 600 Hz
- Braking Types: DC Injection, Dynamic Braking
Electrical Characteristics
- Motor Control: Open Loop Vector (Sensorless Vector)
- Closed Loop: Not Supported
- Dynamic Brake Transistor: Included
- AC Line Regeneration: Not Supported
- Operator Controls: Keypad Sold Separately
- LED Display: Status Indicator Included
- Built-In PLC: Supports basic ladder logic

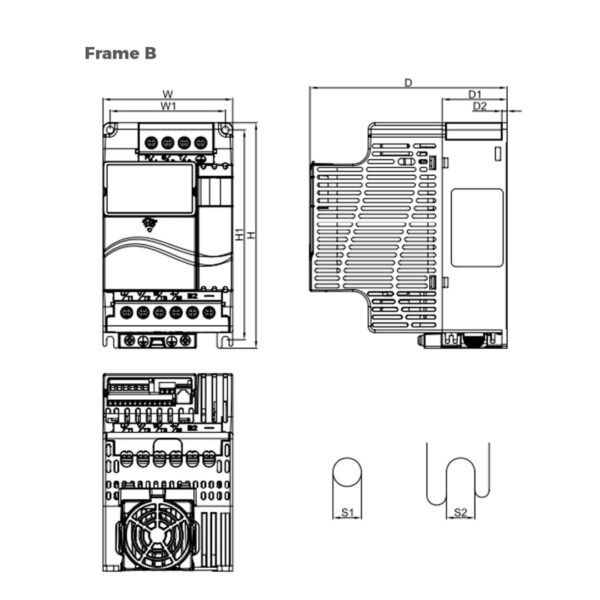

Mechanical & Installation
- Enclosure Rating: IP20
- Frame Size: B
- Height: 6.85 in (174 mm)
- Width: 3.94 in (100 mm)
- Depth: 5.35 in (136 mm)
- Mounting: Panel (optional DIN rail kit available)
Replacement & Compatibility
- Product Status: Discontinued
- Recommended Replacement: Delta VFD5A5MS43ANSAA (MS300 Series)
- Compatibility Note: Please confirm dimensions and specs on the replacement drive page
Key Features & Benefits
✅ Sensorless Vector Control: Delivers efficient torque and motor responsiveness.
✅ Built-in PLC Functionality: Simplifies automation with basic ladder logic support.
✅ Integrated Braking: DC injection and dynamic braking transistor built-in.
✅ Modular Design: Add flexible extension cards as needed.
✅ Compact Form Factor: Ideal for cubicle-mount industrial panels.
📦 Order VFD022E43A At Drive Outlet Megastore Today!
At Drive Outlet Megastore, we offer unbeatable VFD022E43A prices.
Get fast delivery and expert support today.
