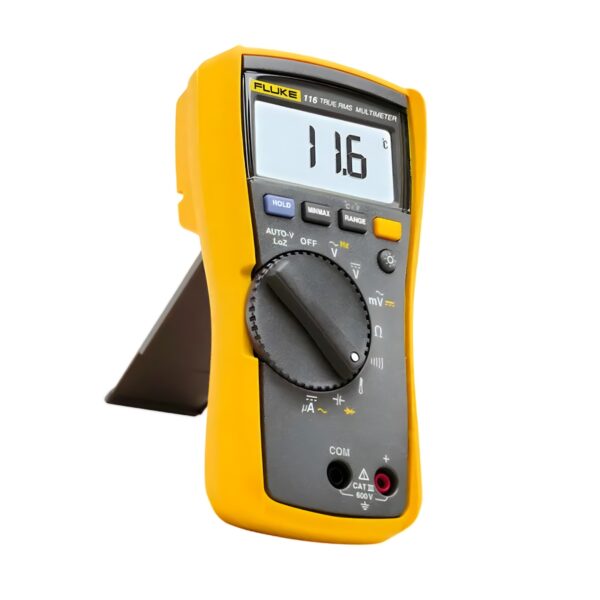

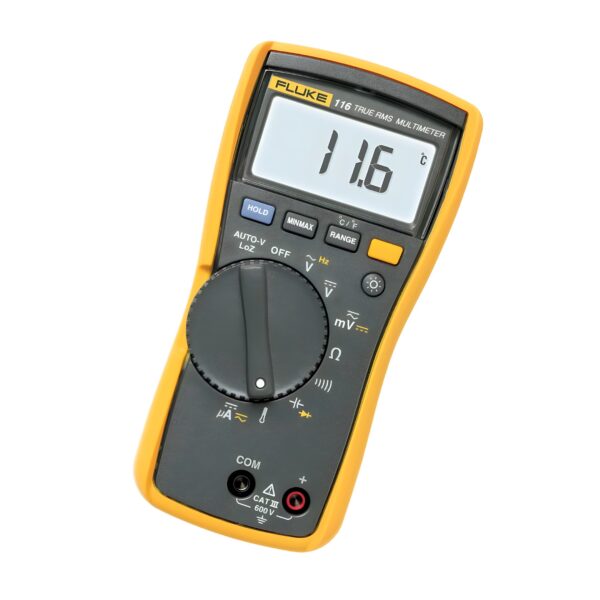

Fluke 116C HVAC Multimeter with Temperature & Microamps

The Fluke 116C is a compact, high-performance HVAC digital multimeter built specifically for heating, ventilation, and air conditioning professionals. It features an integrated thermometer (–40°C to 400°C) and microamp measurement for testing flame sensors, allowing quick, accurate diagnosis of HVAC issues in one handheld tool.

Equipped with LoZ low impedance mode to eliminate ghost voltage readings, the 116C also includes True-RMS AC measurements, continuity, frequency, and capacitance functions. Its large white LED backlight and ergonomic design make it ideal for field use in dimly lit or confined spaces.

Technical Specifications

Model: Fluke 116C
Measurement Type: TRMS Digital Multimeter
Designed For: HVAC Technicians
Backlight: White LED
Display: 6000-count digital + 33-segment bar graph
Battery Type: 9V Alkaline (NEDA 1604A / IEC 6LR61)
Battery Life: 400 hours typical (without backlight)

Electrical Measurement Specifications

• DC Voltage: 600.0 mV to 600.0 V, ±(0.5% + 2)
• AC Voltage (True-RMS): 600.0 mV to 600.0 V, ±(1.0% + 3) (45–500 Hz), ±(2.0% + 3) (500 Hz–1 kHz)
• AutoVolt Mode: 600.0 V, ±(2.0% + 3)
• DC μA: 600.0 μA, ±(1.0% + 2)
• AC μA (True-RMS): 600.0 μA, ±(1.5% + 3)
• Resistance: Up to 40.00 MΩ, ±(0.9% + 1) to ±(5% + 2)
• Capacitance: Up to 9999 μF, ±(1.9% + 2) to ±(5% + 20%)
• Frequency: Up to 50.00 Hz, ±(0.1% + 2)
• Diode Test: 2.00 V range, ±(0.9% + 2)
• Continuity: Audible beep < 20 Ω; open > 250 Ω

Temperature Measurement

• Range: –40°C to +400°C / –40°F to +752°F
• Resolution: 0.1°C / 0.2°F
• Accuracy: ±(1% + 10°C) / ±(1% + 18°F) (probe error not included)
• Probe: 80BK Integrated Type-K Thermocouple Included

Environmental Specifications

• Operating Temperature: –10°C to +50°C
• Storage Temperature: –40°C to +60°C

Safety & Compliance

• Overvoltage Category: CAT III 600 V
• Surge Protection: 6 kV peak (IEC 61010–1)
• Certifications: CE, CSA

Mechanical & General Specifications

• Size: 167 × 84 × 46 mm (6.57 × 3.31 × 1.82 in)
• Weight: 550 g
• Included Accessories: TL175 test leads, 80BK temperature probe, holster, 9V battery, quick reference guide
• Warranty: 2 years

Key Features & Benefits

✅ Built-In Thermometer. Measure HVAC system temps directly without a separate tool.

✅ Microamp Range. Accurately test flame sensors in gas furnaces and burners.

✅ LoZ Mode. Prevents ghost voltage misreadings in complex systems.

✅ Bright LED Display. Enhanced visibility in dim environments.

✅ Compact HVAC-Focused Design. Ideal for tight spaces and one-handed operation.
