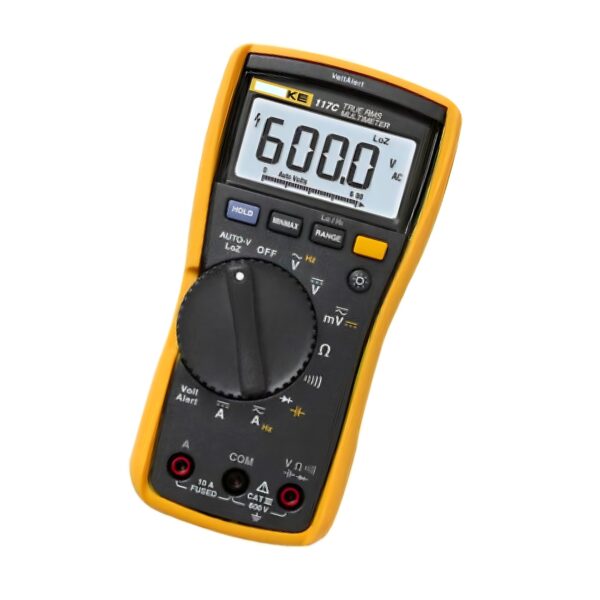

Fluke 117C Electrician’s Multimeter

The Fluke117C is a professional-grade digital multimeter built for electricians working in commercial, residential, and institutional environments. Featuring integrated VoltAlert™ non-contact voltage detection, AutoVolt/LoZ modes, and True RMS accuracy, the 117 provides fast, reliable measurements while eliminating false readings caused by ghost voltage. Its ergonomic design, white LED backlight, and one-handed operation make it the go-to meter for efficient troubleshooting.

Measurement Specifications

• DC Voltage: 6.000 V to 600.0 V (±0.5% + 2)
• AC Voltage (True RMS): 6.000 V to 600.0 V (±1.0% + 3 from 45–500 Hz)
• AutoVolt (AC/DC Auto Select): Up to 600.0 V (±2.0% + 3)
• AC mV (True RMS): 600.0 mV (±1.0% + 3)
• DC mV: 600.0 mV (±0.5% + 2)
• DC/AC Current: 6.000 A / 10.00 A (±1.0% DC, ±1.5% AC + 3)
• Resistance:
  • 600.0 Ω to 6.000 MΩ (±0.9% + 1)
  • 40.00 MΩ (±5% + 2)
• Continuity: Audible beep < 20 Ω, no beep > 250 Ω
• Capacitance: 1000 nF to 9999 μF (±1.9% + 2)>1000 μF: ±5% + 20%
• LoZ Capacitance: 1 nF to 500 μF (typical ±10% + 2)
• Frequency: 5 Hz to 50 kHz (±0.1% + 2)
• Diode Test: 2.00 V range (±0.9% + 2)

General Specifications

• Display: 6000-count LCD, 4 updates/sec
• Bar Graph: 33-segment analog bar graph (32 updates/sec)
• Size: 167 × 84 × 46 mm
• Weight: 550 g
• Battery: 9 V Alkaline (NEDA 1604A / IEC 6LR61)
• Battery Life: 400 hours typical (no backlight)

Environmental & Safety

• Operating Temperature: –10 °C to +50 °C
• Storage Temperature: –40 °C to +60 °C
• Humidity: ≤90% RH up to 30 °C, ≤75% RH up to 40 °C
• Safety Rating: CAT III 600 V
• Surge Protection: 6 kV peak per IEC 61010-1
• Fuse Protection: 11 A, 1000 V fast-blow (Fluke PN 803293)

Included Accessories

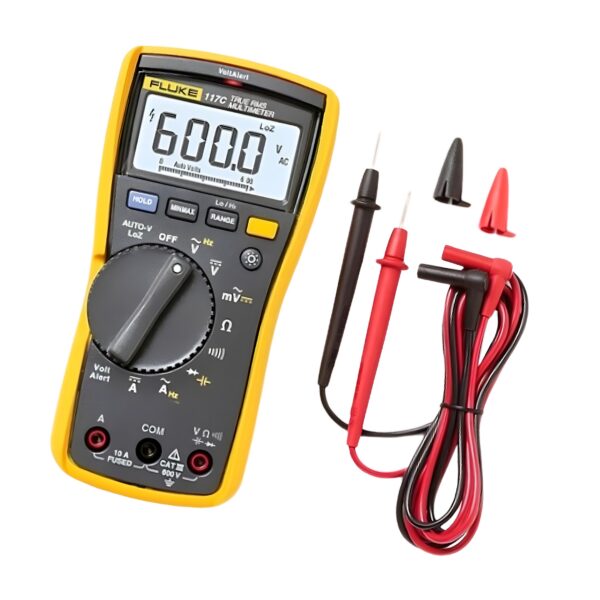

• TL75 Test Lead Set
• Protective Holster with Probe Holders
• User Manual

Key Features & Benefits

✅ Non-Contact Voltage Detection: VoltAlert™ built-in for fast go/no-go checks.

✅ True RMS Accuracy: Reliable readings on non-linear loads and circuits.

✅ AutoVolt / LoZ: Prevents false readings due to ghost voltage.

✅ Compact & Ergonomic: One-handed operation with bright LED backlight.

✅ Min/Max/Avg Modes: Capture signal fluctuations during diagnostics.

📦 Buy Fluke 117C Multimeter from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Fluke 117C prices. Trusted by electricians and facilities teams worldwide, the 117 combines precision, durability, and smart diagnostics in one compact meter.

Fast UK delivery available – 2-year warranty on all products.

Contact us now for your custom quote or technical datasheet.
