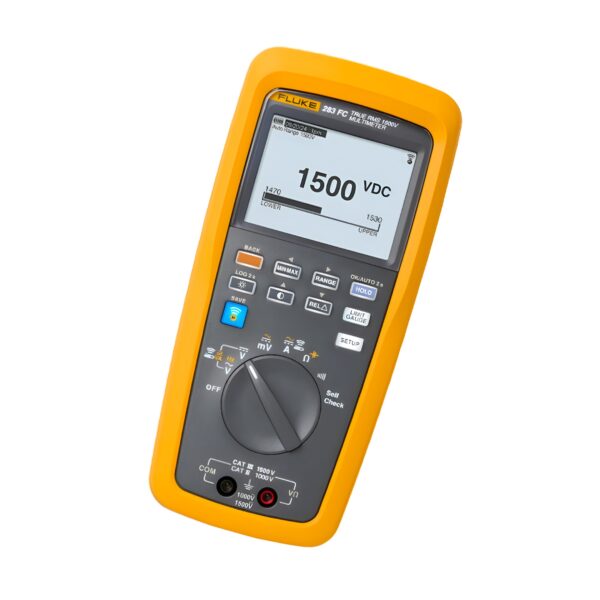

Fluke 283 FC/PV Solar Digital Multimeter & Wireless Clamp

The Fluke 283 FC/PV is the ultimate solar and high-voltage troubleshooting kit, combining the Fluke 283 FC TRMS Digital Multimeter with the a283 FC 60A Wireless Current Clamp. This combo delivers unmatched precision, safety, and wireless capability for solar PV professionals working in CAT III 1500 V / CAT IV 1000 V environments.

Engineered for utility-scale PV systems, wind energy, and high-voltage infrastructure, the 283 FC/PV enables simultaneous voltage and current measurement with wireless data logging, MC4 solar leads, a dedicated user-defined limit gauge, and advanced multimeter self-check diagnostics.

Technical Specifications

Model: Fluke 283 FC/PV
Instrument Type: TRMS Digital Multimeter + Wireless Clamp Meter
Included Accessories: TL175-HV test leads, MC4 solar leads, premium carry case, magnetic hanging strap
Display: 6000-count backlit LCD with illuminated keypad
Wireless: Fluke Connect™ and a283 FC clamp pairing
Use Case: Solar PV, wind power, high-voltage DC, inverters, combiner boxes

Voltage, Current & Measurement Functions (283 FC)

• DC Voltage: Up to 1500 V, ±0.15% + 2, 1 V resolution
• AC Voltage (True-RMS): Up to 1000 V, ±2.0% + 3 (500 Hz–1 kHz)
• DC mV: 600.0 mV, ±0.09% + 2, 0.1 mV resolution
• AC mV: 600.0 mV, ±1.0% + 3 (45–500 Hz)
• Resistance: Up to 50 MΩ, ±1.5% + 4
• Continuity: Audible for resistance < 100 Ω
• Capacitance: Up to 9999 µF, ±10% typical
• Frequency: Up to 99.99 kHz, ±0.1% + 2
• AC & DC VA: Up to 90.00 kVA, ±2% + 0.25 kVA

Current Measurement (a283 FC Wireless Clamp)

• AC Current (True-RMS): 60 A, ±1.5% + 0.15 A (45–500 Hz)
• DC Current: 60 A, ±1.5% + 0.15 A
• Jaw Opening: 34 mm

Logging & Wireless Features

• Data Logging: Internal memory, customizable intervals, time/date stamped
• Wireless Communication: Fluke Connect™ & Fluke Cloud™ support
• Dual Measurement: View voltage & current simultaneously, calculate VA
• User-Defined Limit Gauge: Audio/visual alerts for out-of-spec readings
• Readiness Self-Check: Ensures meter, battery, and test lead status before testing

Environmental Specifications

• Operating Temperature: –10°C to +60°C
• Storage Temperature: –30°C to +70°C
• Humidity: 0%–90% (up to 30°C), 75% (30–40°C), 45% (40–60°C)

Safety & Protection

• Overvoltage Category: CAT III 1500 V / CAT IV 1000 V
• Standards: IEC 61010-2-032, IEC 61730-1, IEC 61326-1/2-2
• Ingress Protection: IP52
• Drop Test: 2-meter (6.5 ft) drop-tested
• Approvals: ETL, CSA, CE, UKCA

Mechanical & General Specifications

• 283 FC Size: 22.5 × 10.5 × 5.7 cm (0.7 kg)
• a283 FC Size: 226 × 91 × 42 mm (0.375 kg)
• Battery Life (Multimeter): >150 hrs typical (3 × AA, no backlight)
• Battery Life (Clamp): >80 hrs typical (2 × AAA)
• Warranty: Lifetime (multimeter), 1-year (clamp)

Key Features & Benefits

✅ CAT III 1500V / CAT IV 1000V Rated: Highest protection for solar and high-voltage systems.

✅ Measure Voltage & Current Simultaneously: With wireless clamp + multimeter.

✅ Built-In Logging & Fluke Connect™: Time-stamped data, cloud uploads, report sharing.

✅ User-Defined Limit Alerts: Speed up repetitive troubleshooting with audible/visual warnings.

✅ MC4 Solar Test Leads Included: Quick connection for module, string, and inverter testing.

📦 Order the Fluke 283 FC/PV Solar Kit from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Fluke 283 FC/PV prices for solar and electrical professionals. With advanced safety ratings, real-time wireless logging, and precision instrumentation, the Fluke 283 FC/PV is the ultimate tool for utility-scale PV diagnostics and system optimization.

Check stock now or request a quote.

Measure safer. Work smarter. Solar-ready. — Drive Outlet Megastore
