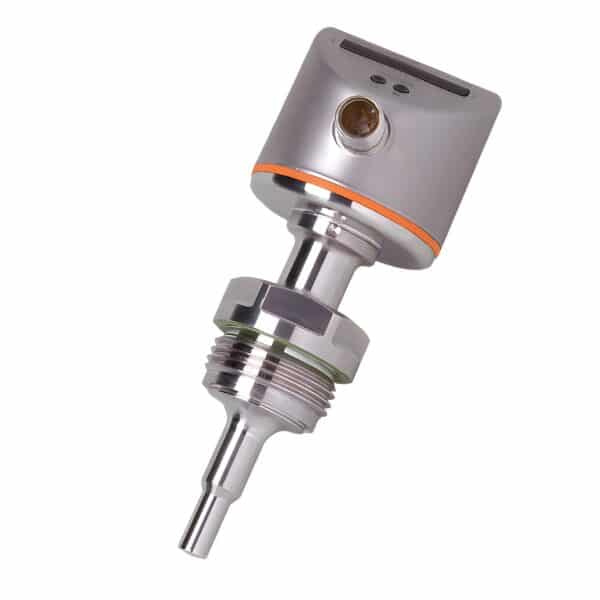

SI6700 IFM Flow Meter – SIR11ABBFPKG/US-100-IPF

The IFM SI6700 is a hygienic flow sensor designed for liquid and gas flow monitoring in the food, beverage, and sterile process industries. With a G 1 Aseptoflex Vario connection, high-temperature tolerance up to 140°C for SIP, and adjustable switch point via pushbutton, it ensures reliable flow detection in hygienic and washdown environments. Its robust IP69K design and fast response time make it ideal for clean-in-place (CIP) installations.

Technical Specifications

Model: SI6700
Manufacturer: IFM
Product Series: SI Series
Sensor Type: Flow switch for hygienic systems
Measuring Range:
• Liquids: 3…300 cm/s
• Gases: 200…3000 cm/s

Process Connection

• G 1 external thread (Aseptoflex Vario)
• Probe length: 38 mm
• Probe diameter: 7.7 mm
• Installation length (EL): 38 mm
• Surface finish (wetted): Ra < 0.4 µm / Rz 4

Electrical Characteristics

• Operating Voltage: 19–36 VDC
• Current Consumption: < 60 mA
• Protection Class: III
• Reverse Polarity Protection: Yes
• Power-On Delay: 10 s
• Electrical Connection: 1 × M12 connector (A-coded, gold-plated contacts)

Output Configuration

• Total Outputs: 1
• Digital Outputs: 1 (PNP, NO/NC configurable)
• Output Signal: Switching
• Voltage Drop: ≤2.5 V
• Current Rating: 250 mA
• Short-Circuit / Overload Protection: Yes (pulsed)

Measuring & Setting Ranges

Liquids:

• Setting Range: 3…300 cm/s
• High Sensitivity Range: 3…100 cm/s

Gases:

• Setting Range: 200…3000 cm/s
• High Sensitivity Range: 200…800 cm/s
• Switch Point Accuracy: ±2…10 cm/s (for water at 25°C)
• Repeatability: 1…5 cm/s
• Hysteresis: 2…5 cm/s
• Temperature Drift: 0.1 cm/s × 1/K
• Temperature Gradient Resistance: 300 K/min
• Response Time: 1…10 s

Software / Programming

• Switch Point Adjustment: Pushbutton
• Display Interface: 10 × three-colour LEDs

Environmental Conditions

• Ambient Temperature: –25 to +60°C
• Medium Temperature:
  • Normal: –25 to +95°C
  • SIP: up to +140°C
• Enclosure Rating: IP67 / IP69K
• Pressure Rating: 30 bar (3 MPa)
• MTTF: 298 years

Mechanical Design

• Weight: 433.5 g
• Dimensions: Ø 50 mm × 137 mm
• Housing Type: Cylindrical
• Housing Materials: Stainless steel (316L), PC, PBT-GF20, EPDM/X
• Wetted Parts: Stainless steel (316L), FKM
• Installation Type: Aseptoflex Vario (G 1 thread)

Compliance & Approvals

• EMC Standards:
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated HF)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-6 (Conducted HF)
• Shock Resistance: DIN IEC 68-2-27 (50 g / 11 ms)
• Vibration Resistance: DIN EN 60068-2-6 (10 g / 55…2000 Hz)

Key Features & Benefits:

✅ Designed for Hygienic Environments: Ideal for CIP/SIP installations with stainless steel and Ra < 0.4 µm finish.

✅ Precise Flow Monitoring: Measures both low-flow liquids and fast-moving gases.

✅ Pushbutton Setpoint Adjustment: Quick setup without software.

✅ IO-Free Simplicity: Reliable switching output with LED indication and no IO-Link required.

✅ Extreme Temperature and Pressure Rating: Withstands SIP up to 140°C and 30 bar pressure.

✅ IP69K Protection: Washdown-rated for hygienic zones and aggressive cleaning.
