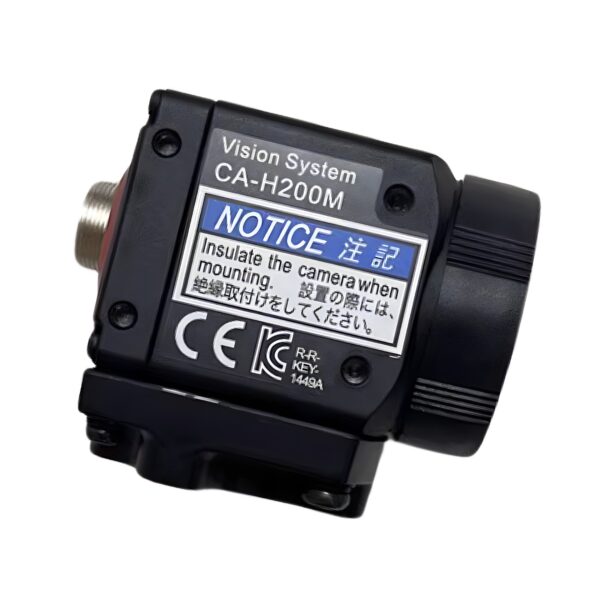

Keyence CA-H200M Environment-Resistant 2 Megapixel Camera

The CA-H200M is a high-speed monochrome industrial camera designed for precision vision applications in factory automation, inspection, and high-speed measurement systems. With a progressive scan CMOS sensor, high-speed image transfer, and C-Mount compatibility, this camera delivers high-resolution imaging with rapid processing speeds.

Technical Specifications

Model: CAH200M
Type: High-Speed Industrial Monochrome Camera

Imaging & Performance

• Image Element: Monochrome CMOS Sensor
• Pixel Size: 4.5 µm × 4.5 µm
• Valid Pixel Count:
  • 2 Megapixel Mode: 1600 (H) × 1200 (V)
  • 1 Megapixel Mode: 1024 (H) × 960 (V)
• Image Size: Equivalent to 1/1.8″ Sensor
• Scanning System: Progressive Scan

High-Speed Performance

• Transfer Speeds:
  • 7× Transfer Speed: 28.9 ms ¹
  • 16× Transfer Speed: 11.8 ms ²
• Pixel Transfer Frequency:
  • 7× Speed: 86 MHz (43 MHz ×2) ¹
  • 16× Speed: 198 MHz ²
• Transfer System: Digital Serial Transfer

Electronic Shutter & Lens Mount

• Electronic Shutter Speed: 0.05 to 9000 ms
  • Predefined Steps: 1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000
• Lens Mount: C-Mount

Environmental Resistance

• Enclosure Rating: IP64³
• Operating Temperature: 0 to 45°C
• Relative Humidity: 85% RH or less (No Condensation)

Weight & Construction

• Weight: Approx. 75 g (Excluding Lens)

Key Features & Benefits:

✅ High-Speed CMOS Sensor: Supports up to 16× transfer speed for ultra-fast image capture.

✅ High-Resolution Imaging: 2-megapixel mode for detailed monochrome images.

✅ Electronic Shutter Control: Adjustable from 0.05 ms to 9000 ms for optimal exposure settings.

✅ C-Mount Lens Compatibility: Works with standard industrial lenses for flexible setup.

✅ IP64 Rated: Dust & splash-resistant design for industrial environments.
