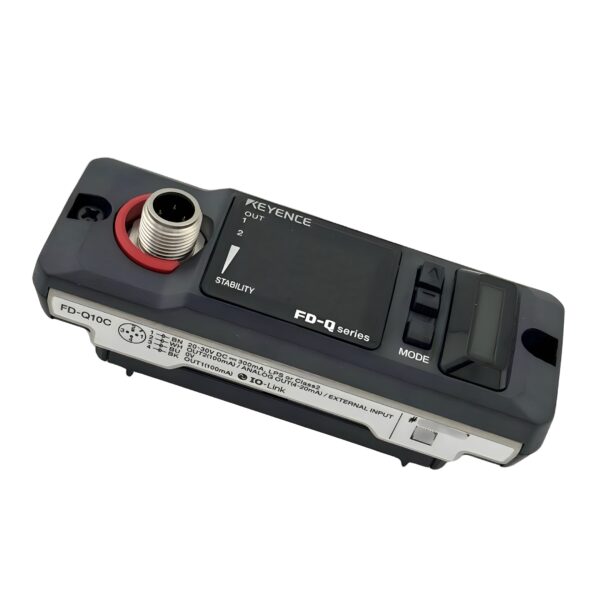

FD-Q10C Keyence Sensor Clamp-On Flow Sensor

The Keyence FD-Q10C is a clamp-on ultrasonic flow sensor engineered for non-intrusive liquid flow detection in harsh industrial environments. Designed for metal or resin pipes between ø13 and ø18 mm, this sensor measures flow rates up to 30 L/min without breaking the pipe, using a high-accuracy ultrasonic detection method. With dual analog and digital I/O, selectable response times, and IP65/IP67 protection, it is ideal for process automation, chemical handling, and utility management.

Technical Specifications

Model: FDQ10C
Series: Keyence FD-Q
Mounting Type: Clamp-on (External)
Connector Type: M12, 4-pin
Weight: Approx. 340 g (incl. bracket)

Detection & Flow Specs

• Pipe Compatibility:
  • 1/4″ (8A): ø13–ø16 mm
  • 3/8″ (10A): ø16–ø18 mm
• Pipe Materials: Metal / Resin
• Fluid Types: Water, oil, chemicals (non-viscous)
• Fluid Temp Range: 0 to 85 °C (No freezing)
• Max Flow Rate:
  • 8A: 20 L/min (5.2 G/min)
  • 10A: 30 L/min (7.9 G/min)
• Zero Cut Flow: 1.0 L/min (default)
• Display Resolution: 0.01 / 0.1 / 1 L/min (default: 0.1)
• Display Refresh Rate: 3 Hz

I/O & Output Options

• Output Channels (x2):
  • Control Output
  • Pulse Output
  • Error Output
  • Selectable NPN/PNP
  • Max: 30 VDC, 50 mA
• Analog Output:
  • 4–20 mA or 0–20 mA
  • Max Load: 500 Ω
• External Input Options:
  • Integrated Flow Reset
  • Flow Rate Zero
  • Origin Adjustment
• Hysteresis: User-selectable
• Integrated Flow Totalizer: 0.1 / 1 / 10 / 100 / 1000 L (default: 1)
• Memory Backup: EEPROM (10+ year retention)
• Data Logging Interval: Every 10 s

FD-Q10C Response Time & Repeatability

• Selectable Response Times:
  • 0.5 / 1 / 2.5 / 5 / 10 / 30 / 60 s
• Repeatability (% of full scale):
  • ±2.0% (0.5 s)
  • ±0.15% (60 s)

Power & Electrical Specs

• Operating Voltage: 20–30 VDC (Ripple ≤10%, Class 2/LPS)
• Current Consumption: ≤100 mA (excluding load)
• Protection Circuits:
  • Reverse Polarity
  • Surge
  • Output Short-Circuit

Environmental & Mechanical Ratings

• Enclosure Rating: IP65 / IP67 (IEC 60529)
• Ambient Temperature: -10 to +60 °C
• Humidity Range: 35% to 85% RH (No condensation)
• Vibration Resistance: 10–55 Hz, 1.5 mm double amplitude, 2 hr per axis
• Shock Resistance: 100 m/s² (16 ms pulse), 1,000 shocks per axis

Construction Materials

• Main Housing: PPS / PES / PBT
• Mounting Hardware: SUS303 / SUS304 / SUSXM7
• Sealing Components: High-durability elastomers
• Cable Sheath: PVC (connector type)

Key Features & Benefits

✅ Clamp-On Design: Installs in seconds—no cutting or plumbing required.

✅ Wide Pipe Compatibility: Works with 1/4″ and 3/8″ metal/resin pipes.

✅ High Accuracy: Repeatability down to ±0.15% with long response time.

✅ Dual Outputs: Control & analog outputs for flexible integration.

✅ Industrial-Grade Build: IP67 protection, high shock and vibration tolerance.
