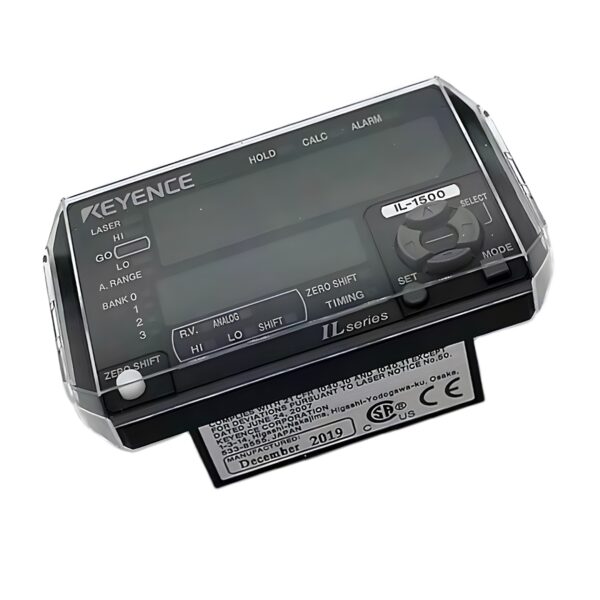

Keyence IL-1500 CMOS Multi-Function Analog Laser Sensor

The Keyence IL-1500 is a high-performance panel-mount controller designed to pair with IL-series laser heads for precision distance and thickness measurements. Supporting up to 1 µm display resolution, multiple analog output formats, and real-time display feedback, the IL-1500 is perfect for inspection, gauging, and automated process control applications in industrial environments.

IL-1500 Amplifier Unit, Panel Mount Type

Technical Specifications

Manufacturer: Keyence
Product Series: IL Series
Model: IL1500
Type: Panel mount measurement controller
Main Unit/Expansion: Main unit
Head Compatibility: All Keyence IL-series measurement heads

Display & Measurement Capabilities

Minimum Displayable Unit:

• IL-030: 1 µm
• IL-065 / IL-100: 2 µm
• IL-300: 10 µm
• IL-600: 50 µm
• IL-2000: 100 µm

Display Range:

• IL-030 / IL-065 / IL-100: ±99.999 mm to ±99 mm
• IL-300 / IL-600: ±999.99 mm to ±999 mm
• IL-2000: ±9999.9 mm to ±9999 mm

Display Refresh Rate: 10 times per second

Output & Control Functions

Analog Voltage Output:

• ±5 V, 1–5 V, 0–5 V (100 Ω output impedance)

Analog Current Output:

• 4–20 mA (350 Ω max. load resistance)

Control Inputs:

• Bank switch
• Zero shift
• Stop laser emission
• Timing input
• Reset input

Control Outputs:

• Judgment Output: NPN/PNP, NO/NC selectable (open collector)
• Alarm Output: NPN/PNP, normally closed (open collector)

Power Supply & Environmental Ratings

Power Voltage: 10 to 30 VDC (Ripple P-P 10% max, Class 2)
Power Consumption: 2.5 W max (84 mA at 30 V)

Pollution Degree: 2
Operating Temperature: -10 to +50 °C
Relative Humidity: 35–85% RH (non-condensing)
Vibration Resistance: 10–55 Hz, 1.5 mm, 2 hrs each axis

Material & Construction

• Housing/Front Sheet: Polycarbonate
• Key Tops: Polyacetal
• Cable: PVC
  Weight: Approx. 170 g (incl. attachments)

Key Features & Benefits:

✅ High-Resolution Measurement: Displays down to 1 µm for IL-030 sensor head.

✅ Versatile Analog Outputs: Supports both ±5 V and 4–20 mA outputs for broad system compatibility.

✅ Real-Time Monitoring: 10 Hz display refresh rate enables responsive process control.

✅ Configurable I/O: Assignable control inputs and outputs for custom automation setups.

✅ Robust Industrial Design: Reliable performance in harsh production environments.
