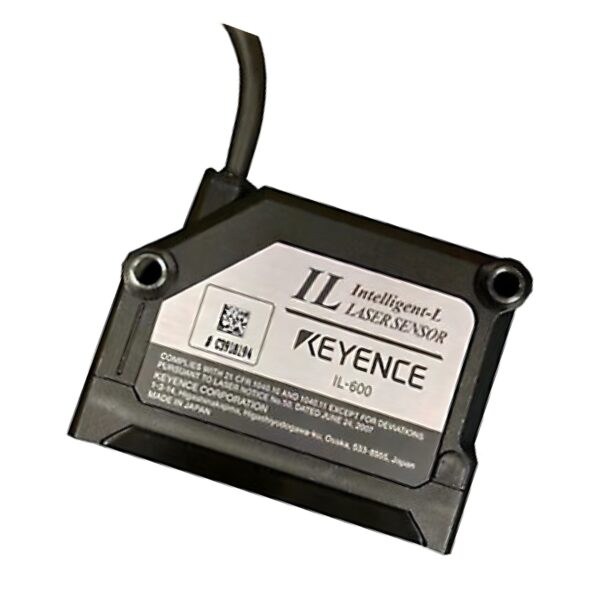

Keyence IL-600 CMOS Multi-Function Analog Laser Sensor

The Keyence IL-600 is a high-accuracy laser displacement sensor, built for precision distance and thickness measurement across industrial automation environments. With a measurement range up to 1000 mm, compact housing, and IP67-rated protection, the IL-600 ensures stable and reliable results in demanding conditions.

Technical Specifications

Manufacturer: Keyence
Series: IL Series
Model: IL600
Reference Distance: 600 mm
Measurement Range: 200 to 1000 mm

Optical & Measurement Details

• Light Source: Red Semiconductor Laser (655 nm)
• Laser Class: Class 2 (IEC 60825-1 / FDA CDRH Part 1040.10)
• Laser Output Power: 560 µW
• Spot Diameter: Approx. ø1.6 mm at standard distance
• Linearity:
  • ±0.25% of F.S. (200–600 mm)
  • ±0.5% of F.S. (200–1000 mm)
• Repeatability: 50 µm
• Sampling Rate: 0.33 / 1 / 2 / 5 ms (Selectable)

Status Indicators & Display

• Laser Emission Warning: Green LED
• Analog Range Indicator: Orange LED
• Reference Distance Indicator: Red/Green LED

Environmental Resistance

• Enclosure Rating: IP67
• Pollution Degree: 3
• Ambient Light Resistance: 5,000 lux (Incandescent lamp)
• Operating Temperature: -10 to +50°C
• Relative Humidity: 35% to 85% RH (No Condensation)

Vibration & Shock Resistance

• Vibration: 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per axis

Material & Construction

• Housing: PBT
• Metal Components: SUS304
• Packing: NBR
• Lens Cover: Glass
• Cable: PVC
• Weight: Approx. 135 g

Key Features & Benefits:

✅ Wide Measurement Range: Covers 200 mm to 1000 mm, making it ideal for long-distance sensing applications.

✅ High-Speed Sampling: Selectable rates from 0.33 ms to 5 ms for optimized accuracy and response time.

✅ Superior Linearity & Repeatability: Ensures precise measurements with ±0.25% F.S. linearity and 50 µm repeatability.

✅ Advanced Laser Technology: Red semiconductor laser with a small spot size for precise detection.

✅ IP67-Rated for Industrial Use: Protects against dust, moisture, and harsh environments.

✅ Reliable Temperature Stability: 0.08% of F.S./°C compensation ensures consistent performance.

✅ Durable & Lightweight: Rugged design with high-quality materials for long-term stability.

✅ Easy Integration: Multiple status indicators for real-time monitoring and quick setup.
