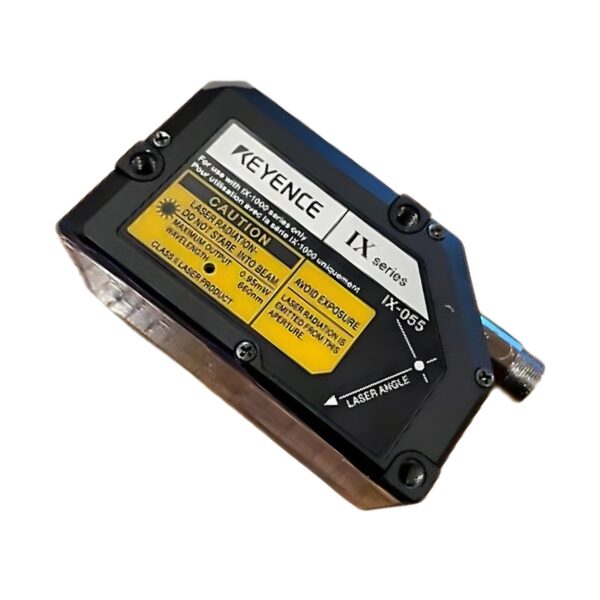

Keyence IX-055 Image-Based Laser Sensor

The IX-055 is a high-resolution, image-based laser measurement sensor, purpose-built for precision inspection, height profiling, and dimensional verification in industrial automation. Featuring fast scan and line modes, a robust IP67-rated zinc die-cast body, and a CMOS image sensor with 10 μm repeatability, it delivers unmatched precision and reliability across a variety of production environments.

Technical Specifications

Model: IX-055
Reference Distance: 55 mm (2.17″)
Measuring Distance: 45 to 65 mm (1.77″ to 2.56″)

Detection Area

Scan Mode:

• At 45 mm (1.77″): 27.5 × 20.5 mm (1.08″ × 0.81″)
• At 55 mm (2.17″): 32.5 × 24.5 mm (1.28″ × 0.96″)
• At 65 mm (2.56″): 37.5 × 28.5 mm (1.48″ × 1.12″)

Line Mode:

• At 45 mm (1.77″): 27.5 mm (1.08″)
• At 55 mm (2.17″): 32.5 mm (1.28″)
• At 65 mm (2.56″): 37.5 mm (1.48″)

Laser Light Source & Classifications

• Light Source: 660 nm Visible Red Semiconductor Laser
• Laser Classification:
  • Class II Laser Product (FDA CDRH Part 1040.10)
  • Class 2 Laser Product (IEC 60825-1:2014)
• Output:
  • 0.95 mW (FDA)
  • 1.6 mW (IEC)

Height (Z Direction) Measurement Specifications

Minimum Detectable Object Size – Scan Mode:

• Height: ø0.7 mm (0.0276″)
• Average Height: ø0.4 mm (0.0157″)
• Pin Height: ø0.3 mm (0.0118″)

Minimum Detectable Object Size – Line Mode:

• 0.5 mm × 0.5 mm (0.0197″ × 0.0197″)

Repeatability: 10 μm

Width (X Direction) Measurement Specifications

• Minimum Edge Detection (Line Mode): 0.3 mm (0.0118″)
• Minimum Step Difference for Height Measurement:
  • IX-055: 100 μm
  • IX-080: 200 μm
  • IX-150: 500 μm
  • IX-360: 1000 μm
  • IX-360W: 1000 μm

Sampling Cycle & Image Processing

• Scan Mode: 120 ms (Min., Typical)
• Line Mode: 6 ms / 11 ms (Selectable)
• Image Receiving Element: Monochrome CMOS Image Sensor
• Capture Lighting: Red LED (Pulse Lighting)

Temperature Characteristics

• Accuracy Drift: 0.04% of F.S./°C

Environmental Resistance

• Enclosure Rating: IP67
• Ambient Light Resistance: Incandescent Lamp, 5000 lux Max.
• Operating Temperature: 0°C to +45°C (32°F to 113°F) (No Freezing)
• Relative Humidity: 35% to 85% RH (No Condensation)
• Vibration Resistance: 10 to 55 Hz, Double Amplitude 1.5 mm (0.06″), 2 Hours in Each of the X, Y, and Z Directions
• Shock Resistance: 500 m/s², 3 Times in Each of the 3 Directions

Material & Construction

• Main Unit Case: Zinc Die-Casting
• Front Cover: Glass, Acrylic (Hard Coat)
• Operation Indicator Cover: TPU
• Connector Ring: PBT
• Connector: Zinc Die-Casting
• Weight: Approx. 190 g

Key Features & Benefits:

✅ Ultra-Precise Measurements: 100 μm step height detection with 10 μm repeatability.

✅ Compact & Rugged Design: IP67-rated for harsh industrial environments.

✅ Fast & Flexible Scanning: Selectable scan and line modes with rapid data acquisition.

✅ Advanced Laser Technology: Class 2 visible red laser with precise light control.

✅ Wide Detection Area: Supports measurements across multiple focal distances (45 mm to 65 mm).
