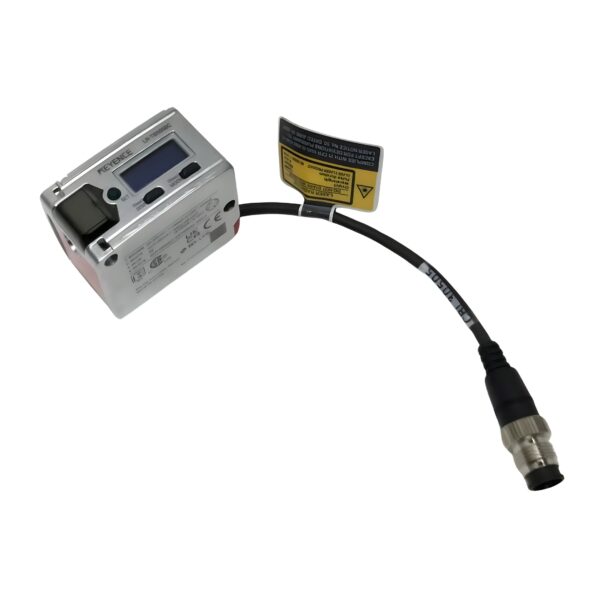

Keyence LR-TB5000C All-Purpose Laser Sensor

The LR-TB5000C is a high-precision, long-range laser sensor designed for demanding industrial automation applications. Featuring a detection range of 60 to 5000 mm, it provides both analog and digital output options, selectable response times, and an IP67-rated die-cast body for harsh environments. This sensor is ideal for object detection, positioning, and process automation where accuracy, durability, and flexible I/O are critical.

Technical Specifications

Model: LRTB5000C
Type: Cable with M12 Connector

Optical & Detection Specifications

• Detectable Distance: 60 to 5000 mm (2.36″ to 196.85″) ¹
• Spot Diameter: Variable (Use a Spot Diameter of 40 mm (1.57″) or Less)
• Light Source: Red Laser (660 nm)
• Laser Classification: Class 2 (IEC 60825-1, FDA (CDRH) Part 1040.10) ²
• Mutual Interference Prevention: Up to 4 Units (with Interference Prevention Enabled)

Timer & Response Time

• Timer Functions: OFF Delay, ON Delay, One-Shot
• Selectable Response Time:
  • 1 ms
  • 10 ms
  • 25 ms
  • 100 ms
  • 1000 ms

I/O & Output Options

Control Output:

• NPN or PNP Open Collector (Selectable)
• 30 VDC or Less, 50 mA Max
• Residual Voltage: 2 V or Less
• N.O. / N.C. Selectable ³⁴*

Analog Output:

• Current Output: 4–20 mA (Max Load: 500 Ω)
• Voltage Output: 0–10 V (Load Resistance ≥ 5 kΩ) ³⁴*

Built-in Protection:

• Reverse Power Connection
• Power Surge Protection
• Output Overcurrent
• Reverse Output Connection
• Output Surge Protection

Power & Electrical Specifications

• Power Voltage: 20–30 VDC (±10% ripple P-P, Class 2/LPS)
• Current Consumption:
  • 50 mA Max (No Load) ⁵
  • 150 mA Max (With Load)

Environmental Resistance

• Enclosure Rating: IP65 / IP67 (IEC 60529)
• Ambient Light Resistance: 100,000 lux (incandescent/sunlight)
• Operating Temperature: -20°C to +55°C (-4°F to 131°F) (No Freezing)
• Relative Humidity: 35% to 85% RH (No Condensation)
• Vibration Resistance: 10–55 Hz, 1.5 mm Double Amplitude, 2 Hours in X, Y, Z
• Shock Resistance: 1,000 m/s², 6 Times Each Axis

Material & Construction

• Case: Zinc Die-Cast (Nickel Chrome Plated)
• Indicator Cover & Buttons: PES
• Lens Cover & Display: PMMA (Anti-Scratch Coating)
• Cable Bushing: PBT
• Cable: PVC
• M12 Connector: TPE, PBT, Nickel-Plated Brass
• Weight: Approx. 160 g
• Included Accessories: Instruction Manual, Laser Warning Labels

Key Features & Benefits

✅ 5 m Detection Range: Long-distance performance with pinpoint precision.

✅ Flexible I/O: Analog (4–20 mA / 0–10 V) and selectable NPN/PNP outputs.

✅ Tough IP67 Body: Rugged die-cast housing for industrial use.

✅ Ultra-Adjustable Response: 1–1000 ms for timing-critical processes.

✅ Ready to Integrate: M12 connectivity and protection circuitry for safe setup.
