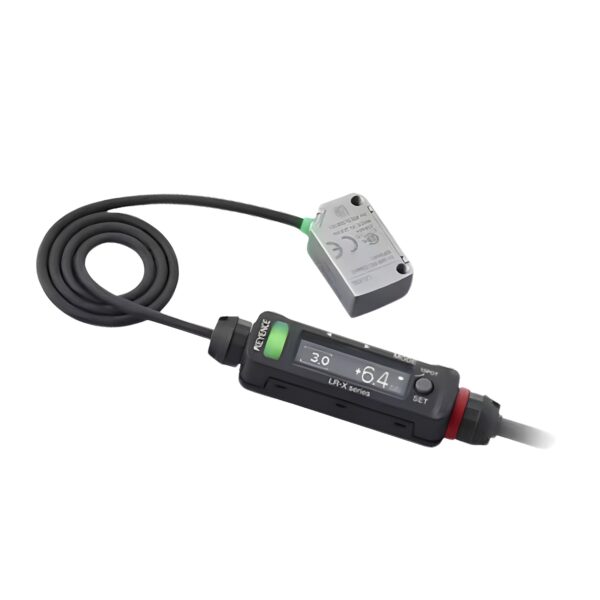

LR-X50C Keyence Compact Laser Sensor

The Keyence LR-X50C is a rugged, compact, high-precision laser sensor designed for industrial measurement, detection, and automation tasks. With its green Class 1 laser, stainless steel construction, and IP65/IP67-rated body, the LR-X50C ensures accurate, repeatable results even in demanding environments.

Technical Specifications

Manufacturer: Keyence
Series: LR-X Series
Model: LRX50C
Type: M8 Connector Type

Detection & Optical Performance

• Detecting Distance: 25.0 to 50.0 mm
• Standard Detectable Deviation: 0.5 mm
• Resolution (Display): 0.1 mm
• Spot Size: Approx. 0.2 mm × 1.5 mm at 50 mm
• Response Time: Selectable – 500 µs, 1 ms, 3 ms, 10 ms, 200 ms
• Light Source: Green laser (505 nm)
• Laser Class: Class 1 (IEC60825-1 / FDA CDRH Part 1040.10)

Communication & Control

• IO-Link Compatible: Spec v1.1 / COM2 (38.4 kbps)
• Timer Functions: OFF / Off-delay / On-delay / One-shot / On-Off delay / On-delay One-shot

I/O & Interface

• Control Output: NPN / PNP open collector (N.O./N.C. selectable)
• Max Load: 30 VDC, 50 mA
• External Input Functions: External Set, Laser OFF, Zero Shift, Hold Reset, Gyro Alert RST
• Short Circuit Current: NPN: 1 mA or lower, PNP: 2 mA or lower
• Input Times: ON: 3 ms or more OFF: 20 ms or more

Electrical Specifications

• Power Supply: 16 to 30 VDC (incl. ripple ≤10%, Class 2)
• Power Consumption:
  • Normal: 970 mW (38 mA @ 24 V)
  • ECO ON/ALL: 821 mW (32 mA @ 24 V)

Environmental Resistance

• Enclosure Rating: IP65 / IP67
• Ambient Light Resistance:
  • Incandescent: ≤16,000 lux
  • Sunlight: ≤16,000 lux
• Operating Temperature: -10°C to +50°C
• Humidity: 35–85% RH (non-condensing)

Shock & Vibration

• Vibration Resistance: 10–500 Hz (PSD: 0.816 G²/Hz, all axes)
• Shock Resistance: 1000 m/s² (100G), 6 times per axis

Material Composition

• Sensor Head: SUS316L
• Lens Cover: PSU
• Gaskets: FKM (lens), EVM (cable)
• Cable: PVC
• Amplifier Housing: PBT
• Indicators: PAR
• Buttons: POM
• Connector: SUS303

Included Accessories

• Instruction Manual
• Laser Warning Label

Weight: Approx. 35 g

Key Features & Benefits:

✅ High-Precision Laser Detection: Detects with 0.5 mm accuracy and 0.1 mm resolution for tight-tolerance applications.

✅ Green Class 1 Laser Source: Optimized for diverse material surfaces with enhanced stability.

✅ Selectable Response Time: Configurable down to 500 µs for fast-moving inspection tasks.

✅ Stainless Steel Body: SUS316L construction resists corrosion, oil, and harsh factory environments.

✅ Advanced I/O Capabilities: Fully configurable output and input modes with short-circuit and surge protection.

✅ Energy-Saving ECO Mode: Reduces power consumption without sacrificing performance.

✅ Smart Factory Ready: IO-Link v1.1 support for seamless integration with IIoT and PLC networks.

✅ Compact Form Factor: Small, 35 g housing ideal for tight installations without compromise.
