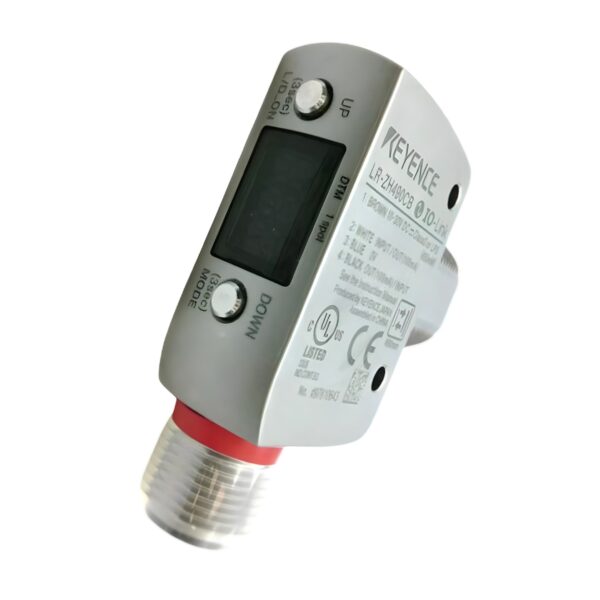

Keyence LR-ZH490CB Self-contained CMOS Laser Sensor

The LR-ZH490CB is a high-performance distance-based laser sensor with U.C.D. (Universal Change Detection) functionality, designed for industrial-grade detection across 25 to 490 mm. Housed in a compact stainless steel M18 threaded body, it features a Class 2 red laser, fast response options, and IP69K-rated protection, making it ideal for automated inspection, object positioning, and harsh-environment installations.

Technical Specifications

Model: LRZH490CB
Type: U.C.D. Function Distance-Based Laser Sensor
Shape: M18 Threaded Mount
Output: NPN/PNP Selectable
Cable Connection: M12 Connector, 4-Pin

Optical & Detection Specifications

• Detectable Distance: 25 to 490 mm (465 to 0 mm) ²
• Standard Detectable Deviation:
  • 25 to 170 mm: 9 mm
  • 170 to 290 mm: 25 mm
  • 290 to 390 mm: 40 mm
  • 390 to 490 mm: 50 mm
• Display Resolution: 1 to 5 mm
• Spot Diameter: Approx. ø3 mm
• Response Time (Selectable):
  • 1.5 ms
  • 10 ms
  • 50 ms
• Light Source: Red Laser (660 nm)
• Laser Classification:
  • IEC 60825-1: Class 2
  • FDA (CDRH): Class II

Function & Display Indicators

• 3-Digit 7-Segment Display (White)
• Output Indicator: Yellow
• DATUM Indicator: Orange
• 1 Spot Indicator: Green

Timer Functions:

• OFF Delay
• ON Delay
• One-Shot

Power & Electrical Specifications

• Power Voltage: 10 to 30 VDC (±10% ripple P-P, Class 2 or LPS)
• Power Consumption: Max. 450 mW
  • 18 mA or Less (24 VDC)
  • 34 mA or Less (12 VDC)

Control Output:

• NPN / PNP Open Collector (Selectable)
• Applied Voltage: ≤ 30 VDC
• Control Current: ≤ 100 mA
• Residual Voltage:
  • ≤ 1.2 V (≤ 10 mA)
  • ≤ 2 V (10 to 100 mA)

Protection Circuit:

• Reverse Power Protection
• Output Overcurrent Protection
• Output Surge Protection
• Reverse Output Connection Protection
• Output Operation: Light-ON / Dark-ON Selectable

LR-ZH490CB External Input Specifications

• Input Time Calibration: ≥ 35 ms ON / OFF
• Laser Emission Stop: ≥ 2 ms ON, ≥ 20 ms OFF
• Short-Circuit Current:
  • NPN: 1 mA or Less
  • PNP: 2 mA or Less

Environmental Resistance

• Enclosure Rating:
  • IP68 / IP69K (IEC 60529, DIN 40050-9)
  • NEMA 4X, 6P, 13 (NEMA 250)
  • ECOLAB & Diversey Certified ³
• Insulation Resistance: ≥ 20 MΩ (500 VDC)
• Ambient Light Resistance:
  • At 240 mm:
    • Incandescent: ≤ 10,000 lux
    • Sunlight: ≤ 20,000 lux
  • At 490 mm:
    • Incandescent: ≤ 2,000 lux
    • Sunlight: ≤ 4,000 lux ⁴
• Operating Temperature: -10°C to +50°C (No Freezing)
• Relative Humidity: 35% to 85% RH (No Condensation)
• Storage Temperature: -25°C to +75°C (No Freezing)
• Withstand Voltage: 1,000 VAC, 50/60 Hz, 1 Min
• Vibration Resistance: 10 to 55 Hz, 1.5 mm Double Amplitude, 2 Hours in X, Y, Z
• Shock Resistance: 1,000 m/s², 6 Times in Each of the X, Y, and Z Directions

Material & Construction

• Case: SUS316L Stainless Steel
• Display: PES
• Lens Cover: PMMA (Scratch-Resistant Coating)
• Packing / Connector Ring: FKM
• Nut: SUS316L
• Lock Washer: SUS304
• Weight: Approx. 75 g
• Included Accessories:
  • Instruction Manual
  • FDA Warning / Certification / ID Label
  • Laser Warning / Explanation Labels

Key Features & Benefits:

✅ Wide Detectable Range: 25 to 490 mm with high-accuracy detection.

✅ Durable Stainless Steel Construction: SUS316L body with IP68/IP69K rating for extreme conditions.

✅ Fast & Configurable Response: Selectable response times (1.5 ms to 50 ms) for different applications.

✅ Flexible Output Options: Selectable NPN/PNP control output with built-in surge and overcurrent protection.

✅ Industrial-Grade Performance: Withstands extreme temperatures, shock, and vibration.

✅ Easy Installation & Adjustment: M18 threaded mount with M12 connector for secure integration.
