LV-N12N

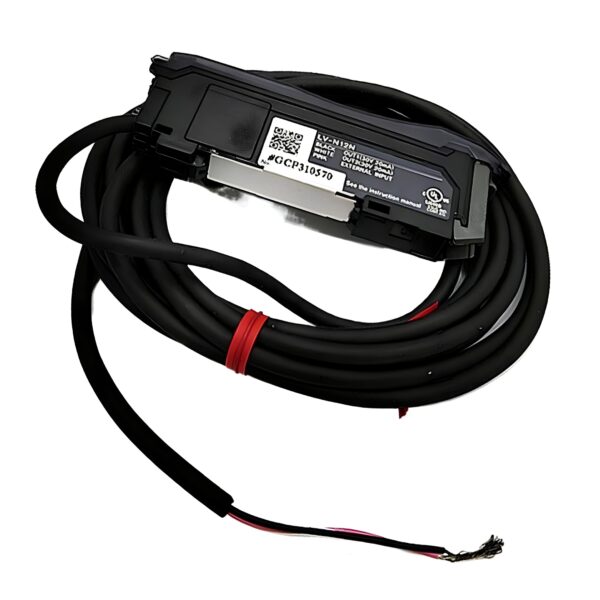

Keyence LV-N12N Multi-Purpose Digital Laser Sensor

£373.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsKeyence
Model LVN12N
Output Current Stand-Alone: 1 output max: 100 mA; 2 outputs total: 100 mA Multiple Connections: 1 output max: 20 mA
Type 2-Output Expansion Unit
Output Type NPN
Residual Voltage 1 V or less (Output current: ≤10 mA), 2 V or less (10–100 mA)
Multiple Connections 1 output max: 20 mA
Power Voltage 24 VDC (Operating Voltage: 10 to 30 VDC, Ripple ≤10%)
Weight Approx. 65 g
Response Time HIGH SPEED: 80 µs FINE: 250 µs TURBO: 500 µs SUPER: 1 ms ULTRA: 4 ms MEGA: 16 ms ¹
Cable/Connector Cable Type
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: LV-N12N Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Keyence LV-N12N Multi-Purpose Digital Laser Sensor

The LV-N12N is a high-performance expansion unit designed for fiber optic sensor controllers , providing dual NPN control outputs with multiple response speeds, selectable timer functions, and enhanced interference prevention capabilities . With its compact design, robust electrical protection, and energy-efficient Eco modes , the LV-N12N ensures optimized control for industrial automation systems .

Technical Specifications

Model LVN12N
Type 2-Output Expansion Unit
Output Type NPN

Input & Output Specifications

Cable/Connector Cable Type
Main/Expansion Unit Expansion Unit
Control Outputs 2 Outputs
External Input 1 Input
Monitor Output None
Output Selection LIGHT-ON/DARK-ON (Switch-Selectable)
Timer Modes OFF, OFF-Delay, ON-Delay, One-Shot
Timer Duration 1 ms to 9,999 ms
Timing Error ±10% Max.
Residual Voltage 1 V or less (Output current: ≤10 mA), 2 V or less (10–100 mA)
Stand-Alone 1 output max: 100 mA; 2 outputs total: 100 mA
Multiple Connections 1 output max: 20 mA
Timer Functions Timer Modes: OFF, OFF-Delay, ON-Delay, One-Shot Timer Duration: 1 ms to 9,999 ms Timing Error: ±10% Max.
Control Output NPN Open Collector (30 V Max.) Residual Voltage: 1 V or less (Output current: ≤10 mA), 2 V or less (10–100 mA) Output Current: Stand-Alone: 1 output max: 100 mA; 2 outputs total: 100 mA Multiple Connections: 1 output max: 20 mA
Output Current Stand-Alone: 1 output max: 100 mA; 2 outputs total: 100 mA Multiple Connections: 1 output max: 20 mA

Response & Interference Prevention

HIGH SPEED 80 µs
FINE 250 µs
TURBO 500 µs
SUPER 1 ms
ULTRA 4 ms
MEGA 16 ms ¹
Input Time 2 ms (ON) / 20 ms (OFF) or more ²
Unit Expansion Up to 17 Units Can Be Connected (Two-Output Type Counts as Two Units)
Response Time HIGH SPEED: 80 µs FINE: 250 µs TURBO: 500 µs SUPER: 1 ms ULTRA: 4 ms MEGA: 16 ms ¹
External Input Input Time: 2 ms (ON) / 20 ms (OFF) or more ²
Number of Interference Prevention Units 0 for HIGH SPEED Mode 2 for FINE/TURBO/SUPER Modes 4 for ULTRA/MEGA Modes

Power & Electrical Specifications

Power Voltage 24 VDC (Operating Voltage: 10 to 30 VDC, Ripple ≤10%)
Normal Mode 830 mW or less (30 V: 30 mA, 24 V: 56 mA or less) ³
Eco Mode 710 mW or less (30 V: 26 mA, 24 V: 48 mA or less) ³
Eco Full Mode 550 mW or less (30 V: 21 mA, 24 V: 40 mA or less) ⁴
Power Consumption Normal Mode: 830 mW or less (30 V: 30 mA, 24 V: 56 mA or less) ³ Eco Mode: 710 mW or less (30 V: 26 mA, 24 V: 48 mA or less) ³ Eco Full Mode: 550 mW or less (30 V: 21 mA, 24 V: 40 mA or less) ⁴

Environmental Resistance

Ambient Temperature -20°C to +55°C (No Freezing) ⁵
Relative Humidity 35% to 85% RH (No Condensation)
Vibration Resistance 10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours in Each X, Y, and Z Direction
Shock Resistance 500 m/s², 3 Times in Each X, Y, and Z Direction

Material & Construction

Cable PVC
Case Material Polycarbonate
Size H 32.6 mm × W 9.8 mm × L 78.7 mm
Weight Approx. 65 g

Included Accessories

Compatible options Instruction Manual
