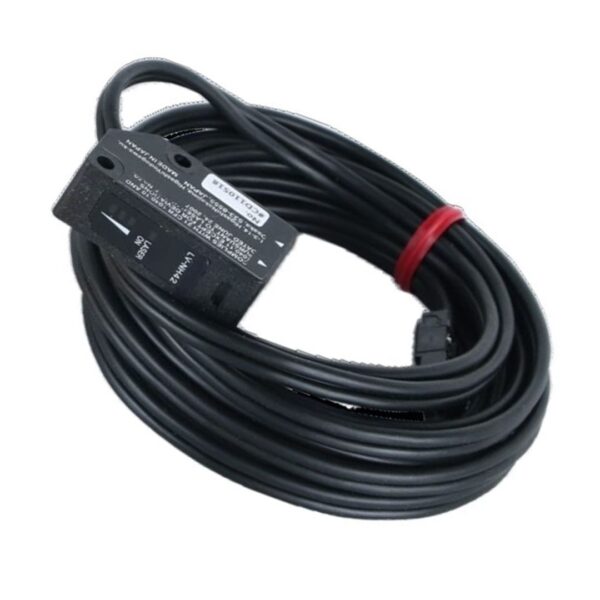

LV-NH62 Keyence Multi-Purpose Digital Laser Sensor

The Keyence LV-NH62 is a high-performance digital laser sensor head engineered for long-range detection with exceptional precision. Featuring a Class 1 red laser (660 nm) and six detection modes from High-Speed (HSP) to MEGA, it offers versatility and accuracy for diverse industrial automation setups.

Technical Specifications

Model: LVNH62
Type: Standard
Weight: Approx. 65 g

Optical & Detection Specs

• Light Source: Visible Semiconductor Laser
• Wavelength: 660 nm
• Laser Classification:
  • FDA (CDRH): Class 1
  • IEC 60825-1: Class 1
• Detection Distance by Mode:
  • MEGA: 8 m
  • ULTRA: 7 m
  • SUPER: 6 m
  • TURBO: 5 m
  • FINE: 3.5 m
  • HSP: 2 m

Environmental Resistance

• Ambient Temperature: -10°C to +55°C (No Freezing)
• Humidity Range: 35% to 85% RH (No Condensation)

Material & Construction

• Housing: Glass-Reinforced Plastic
• Lens Cover: Norbornene Plastic
• Reflective Mirror: Polycarbonate & Acrylic

Key Features & Benefits:

✅ Long-Range Detection: Detects up to 8 m in MEGA mode for extended applications.

✅ Versatile Detection Modes: Six adjustable modes (MEGA, ULTRA, SUPER, TURBO, FINE, HSP) for optimized accuracy.

✅ High-Speed Sensing: HSP mode (2 m range) for ultra-fast detection in precision applications.

✅ Durable & Lightweight Construction: Glass-reinforced plastic casing for enhanced durability in industrial environments.

✅ Safe & Reliable Operation: Class 1 laser ensures user safety while maintaining high performance.
