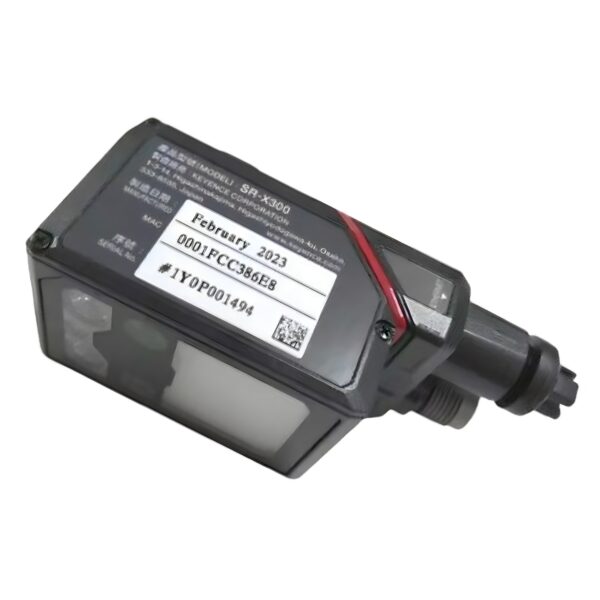

Keyence SR-X300 AI-Powered Code Reader
The Keyence SR-X300 is a high-performance AI barcode reader designed for fast and precise scanning of 1D and 2D codes in manufacturing, logistics, and inspection environments. Featuring auto-focus, intelligent lighting, and powerful network connectivity, the SR-X300 delivers exceptional speed and accuracy for modern factory automation.
Technical Specifications
- Manufacturer: Keyence
- Series: SR-X Series
- Model: SRX300 (Standard), SR-X300 + SR-XHR (High-Resolution)
Optical Performance
- Image Sensor: CMOS
- Resolution: 1920 × 1200 (2.3 MP)
- Focus: Auto (adjustable at install or tuning)
- Illumination: Red/White high-intensity LED
- Pointer LED: High-intensity green
Symbol Support & Reading Specs
- 2D Codes: QR, MicroQR, DataMatrix, DMRE, GS1 DataMatrix, PDF417, DotCode, Maxi Code, Aztec Code
- Barcodes: CODE39, ITF, COOP 2of5, NW-7, CODE128, GS1-128, GS1 DataBar, EAN/JAN/UPC, Pharmacode, Postal
- Minimum Code Resolution:
• 2D: 0.024 mm (SR-X300) / 0.010 mm (with XHR)
• 1D: 0.082 mm - Reading Distance:
• SR-X300: 70–1000 mm
• SR-XHR: 32–47 mm - Field of View:
• SR-X300: 104 × 65 mm @ 300 mm
• SR-XHR: 12.3 × 7.7 mm @ 47 mm
Inputs & Outputs
- Inputs: 2 bidirectional (Max 30 VDC, ON ≥15 V)
- Outputs: 3 Photo MOS (Max 30 VDC, 50 mA each, 100 mA total)
Communication Interfaces
- Ethernet: 100BASE-TX
- Supported Protocols: TCP/IP, FTP, SFTP, HTTPS, EtherNet/IP™, PROFINET, OPC UA, MC Protocol, OMRON Link
- Serial: RS-232C (600–115200 bps, no-protocol or PLC protocols)
- USB: USB 2.0 High-Speed
Power Requirements
- Voltage: 24 VDC (+25% / -20%)
- Current Draw: Approx. 750 mA
Environmental Ratings
- Protection: IP65/IP67 (with USB cover)
- Temperature: 0 to +45°C (Operation), -10 to +50°C (Storage)
- Humidity: 35–85% RH (no condensation)
Mechanical Properties
- Weight: 200 g (SR-X300), 225 g (SR-XHR)
Key Features & Benefits:
✅ 2.3 MP CMOS Sensor: Delivers sharp and accurate barcode captures with high precision.
✅ Wide Reading Distance: Covers 70 to 1000 mm range for installation flexibility.
✅ Auto-Focus Function: Automatically tunes lens to ideal distance without manual setup.
✅ Smart Symbol Recognition: Supports all major 1D and 2D barcode types, including dot codes.
✅ Multiple Protocol Support: Seamlessly integrates via Ethernet/IP™, PROFINET, OPC UA, and RS-232C.
✅ Industrial-Grade Design: IP65/IP67-rated with rugged enclosure for harsh environments.
✅ Flexible I/O Configurations: Easily connect with machine controllers via relay output or logic input.
✅ USB & Serial Options: Supports high-speed communication and offline configuration.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer the best Keyence SR-X300 prices, with same-day and next-day shipping across the UK & Europe.
For more information about the Keyence SR-X300, or help selecting the right barcode reader for your setup, reach out to Drive Outlet Megastore.
Our team of technical specialists is here to ensure you choose the best scanning solution for your application.
