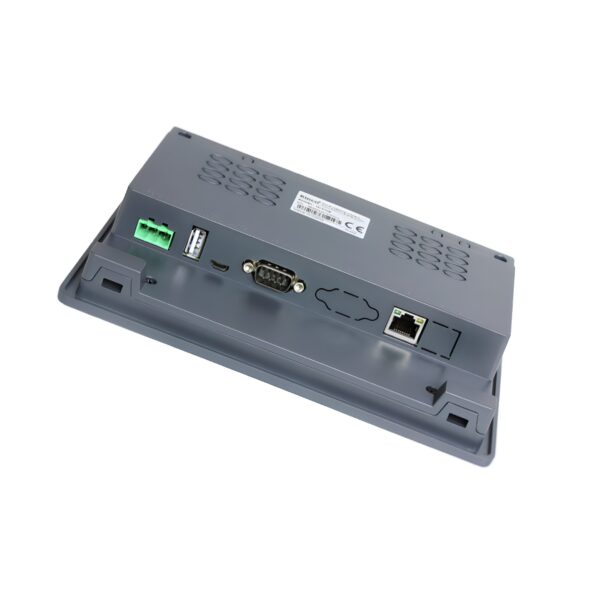

Kinco GL070E Green Series HMI

The Kinco GL070E is a 7-inch touchscreen HMI from the Green Series, engineered for intuitive control, crisp visuals, and multi-device connectivity. With an 800 MHz ARM RISC CPU and 128MB of both NAND Flash and DDR3 memory, the GL070 delivers fast operation and reliable communication with PLCs and controllers.

The GL070 features a 16.7 million color TFT screen, sealed waterproof construction, and compatibility with Kinco DTools V3.3+. This HMI supports VNC cloud monitoring, USB host, Micro USB, and dual serial COM ports, while the GL070E variant includes an Ethernet port for networked control.

Technical Specifications

Model: GL070E Kinco
Series: Green Series
Display Size: 7″ TFT LCD
Resolution: 800 × 480 pixels
Display Colors: 16.7 million
Brightness: 250 cd/m²
Contrast Ratio: 500:1
Viewing Angle: 70°/70°/50°/70° (L/R/U/D)
Touch Panel: 4-wire resistive (4H hardness)
Backlight Life: >30,000 hours

System & Memory

CPU: ARM RISC 32-bit, 800 MHz
Storage: 128MB NAND Flash + 128MB DDR3
RTC: Built-in
Expandable Memory: 1x USB Host
Software: Kinco DTools V3.3 and above
Languages Supported: English, Chinese, Korean, Russian
Features: VNC cloud monitoring, PDF viewing, operation logs

Communication Interfaces

COM0: RS232 / RS485 / RS422
COM2: RS232
Program Download: USB Slave (Micro USB), USB Flash Drive
Print Port: USB Host / Serial Port
Ethernet: Only on GL070E (10/100 Mbps, auto-adapt)

Electrical & Installation

Input Voltage: DC 10–28V (Isolated)
Rated Power: 3.6W @ 24V DC
Power Loss Tolerance: < 3 ms
Insulation Resistance: >50 MΩ @ 500 VDC
Hi-pot Test: 500 VAC, 1 minute
Cooling: Natural convection

Mechanical & Environmental

Shell Material: Engineering plastic
Dimensions (W × H × D): 204 × 150 × 34 mm
Panel Cutout Size: 192 × 138 mm
Weight: 0.5 kg
Operating Temp: 0°C to 50°C
Storage Temp: -20°C to 60°C
Humidity: 10–90% RH (non-condensing)
Vibration: 10–500 Hz, 30 m/s², all axes
Front Panel Protection: IP65

Certifications

Compliance: CE Certified
Standards: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Protection Class: IP65 (front panel)

Key Features & Benefits

✅ 7″ True Colour Display: 16.7 million color high-contrast visuals for modern HMI systems.

✅ High-Speed CPU: 800 MHz ARM architecture for fast performance.

✅ Dual COM Ports: Supports RS232/RS485/RS422 with simultaneous controller connection.

✅ Cloud-Ready: VNC remote monitoring via mobile or PC.

✅ IP65 Panel: Sealed for oil, dust, and water resistance.

📦 Order the Kinco HMIs from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Kinco GL070E prices.

Ideal for control cabinets, small machines, and modern touchscreen automation systems, the GL070 series blends high-performance visuals with reliable communication options for OEMs and integrators alike.
