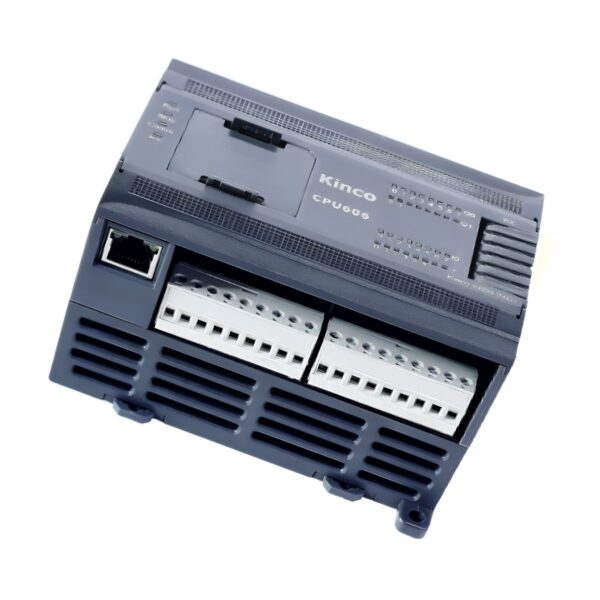

Kinco K606-24AR K6 Series PLC

The Kinco K606-24AR is an AC-powered relay output PLC from the K6 Series, engineered for reliable industrial control where electrical isolation and high-current switching are critical. With integrated dual RS485, 10/100M Ethernet for Modbus TCP, and expandable architecture supporting up to 14 modules, this PLC provides robust communication and flexible I/O scalability.

Designed with a next-gen MCU platform, the K606-24AR delivers fast scan speeds, rich logic functionality including arrays and stacks, and optional CAN bus connectivity through BD board expansion.

Technical Specifications

Model: K606-24AR
Series: K6 Series
Power Supply: AC 220V
Digital Inputs: 14
Digital Outputs: 10 (Relay)
Analog Inputs: None
Analog Outputs: None
High-Speed Counters: 4 channels (up to 200kHz)
High-Speed Outputs: 4 channels (3 × 200kHz, 1 × 10kHz)
Programming Language: Ladder / Instruction list
Scan Time: 0.3ms for 1,000 instructions
Program Memory: 8K instructions
Data Memory: 20KB (V area + M area)

System & Memory

CPU Platform: New-generation 32-bit MCU
Array Support: Up to 16 arrays × 1024 elements
Stack Support: 2 stacks × 1024 elements
RTC: Integrated
Download Methods: USB, RS485, Ethernet
Compatible Software: Kinco Builder
BD Board Support: Yes (adds CAN or extra IO)
Expansion Modules: Supports up to 14 modules

Communication Interfaces

COM1: RS485
COM2: RS485
Ethernet: 10/100M, supports TCP Server, TCP Client, UDP, Modbus TCP
CAN Bus (via BD): CANOpen Master, up to 64 nodes
Max Clients: 16
Protocol Support: Modbus TCP/RTU, Kinco Motion Protocol
PLC-to-PLC Communication: Supported

Electrical & Installation

Power Supply: AC 220V
Dimensions (L × W × H): 128 × 114 × 76 mm
Mounting: DIN-rail
Power Consumption: Approx. 3W
Isolation Resistance: ≥50 MΩ @ 500 VDC
Surge Protection: Built-in
Cooling Method: Natural air convection

Mechanical & Environmental

Housing: Industrial-grade ABS
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 70°C
Humidity: 5–95% RH (non-condensing)
Vibration Resistance: 10–500Hz, 2G
Installation Altitude: ≤2000 m
Ingress Protection: IP20

Certifications

CE Certified: Yes
EMC Compliance: EN61000-6-2, EN61000-6-4
RoHS Compliant: Yes
Electrical Safety: IEC61131-2

Key Features & Benefits

✅ AC 220V Supply: Built-in power input for industrial mains without conversion.

✅ Relay Outputs: Safe and isolated switching for external loads and actuators.

✅ High-Speed IO: Supports motion control, frequency counting, and PWM generation.

✅ CANOpen Master (via BD): Up to 64 slave devices for motion or IO expansion.

✅ Next-Gen MCU: Fast 0.3ms logic cycle and advanced memory functions.

✅ K5 Series Compatibility: Easily upgrade or expand existing Kinco systems.
