Kinco MT100 Mass Series HMI

Name: Kinco MT100 Mass Series HMI
SKU: MT100
Price: 218.44 GBP
Availability: InStock

£218.44 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsKinco

Model	MT100 Kinco
Series	Mass Series
Input Voltage	DC 10.8–28V
Resolution	1024 × 600 pixels
Display Type	10.1" TFT LCD
Recipe Memory	Built-in + 256KB
Dimensions (W × H × D)	271 × 213 × 38 mm
Weight	1.1 kg
PCB Protection	Conformal coating
Panel Protection	IP65 (front)

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: MT100 Category: Graphic Terminals Tag: MT100 Brand: Kinco

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

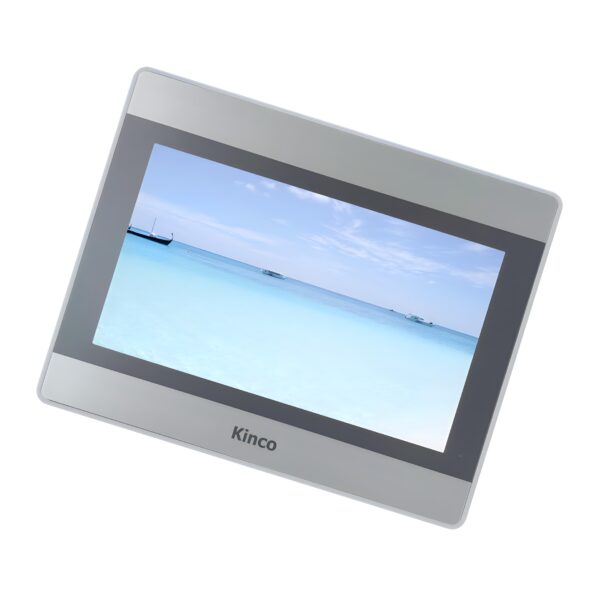

Kinco MT100 Mass Series HMI

The Kinco MT100 is a robust 10.1” HMI from the Mass Series, designed to deliver clear HD visualization, wide viewing angles, and multi-protocol connectivity for industrial automation. Equipped with a 792 MHz ARM RISC processor and Kinco DTools compatibility, this model supports VNC cloud monitoring and multilingual user interfaces, making it ideal for demanding OEM and process control applications.

Technical Specifications

Model	MT100 Kinco
Series	Mass Series
Display Type	10.1" TFT LCD
Resolution	1024 × 600 pixels
Display Colors	256K
Brightness	300 cd/m²
Contrast Ratio	500:1
Viewing Angle	85°/85°/85°/85° (L/R/U/D)
Backlight	LED
Backlight Life	≥50,000 hours
Touch Panel	4-wire resistive (4H surface hardness)

System & Memory

CPU	ARM RISC 32-bit, 792 MHz
Flash Memory	128MB NAND
RAM	64MB DDR2
Recipe Memory	Built-in + 256KB
RTC	Built-in
Program Download	USB Slave / Serial Port
Configuration Software	Kinco DTools V3.5.2 and above
External Storage	1 × USB Host

Communication Interfaces

COM0	RS232 / RS485 / RS422
COM1	RS485
COM2	RS232
Ethernet	10/100M Self-adaptive
Print Port	Ethernet
VNC Cloud Support	Yes (HMI-PC and HMI-Mobile interoperability)

Electrical & Installation

Input Voltage	DC 10.8–28V
Power Consumption	7W @ 24V DC
Power Loss Tolerance	< 3 ms
Insulation Resistance	> 50 MΩ @ 500 VDC
Hi-pot Test	500 VAC, 1 minute
Cooling	Natural air convection

Mechanical & Environmental

Shell Material	Engineering plastic
Dimensions (W × H × D)	271 × 213 × 38 mm
Panel Cutout Size	260 × 202 mm
Weight	1.1 kg
Operating Temp	0°C to 50°C
Storage Temp	-20°C to 60°C
Humidity	10–90% RH (non-condensing)
Vibration Resistance	10–500 Hz, 30 m/s², X/Y/Z axes
PCB Protection	Conformal coating
Panel Protection	IP65 (front)

Certifications

CE Certification	EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Panel Protection Grade	IP65 (per IEC 4208-93)

Frequently Asked Questions

How can I check whether MT100 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can MT100 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	1.1 kg
