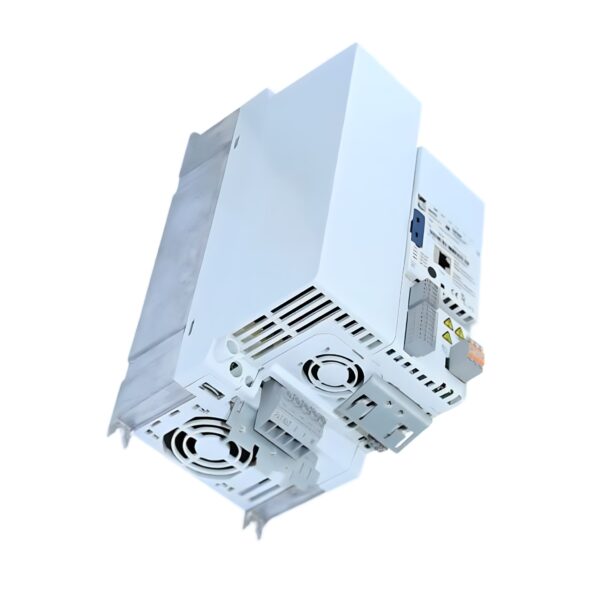

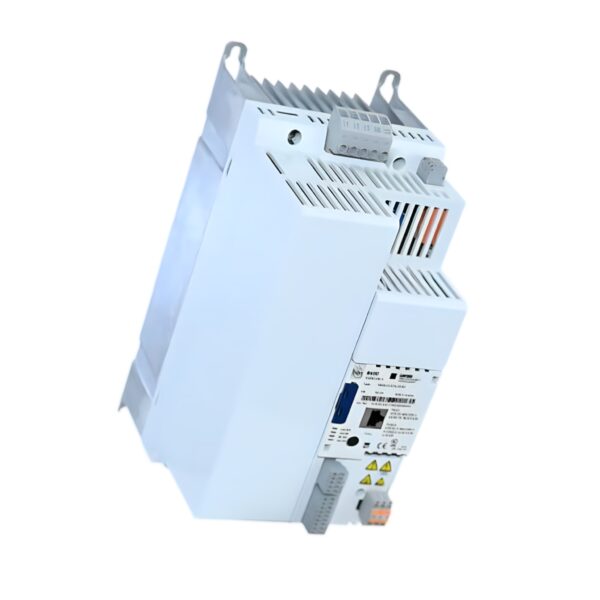

Lenze E84AVSCE5524SX0 Inverter Drive – 5.5kW, IP20
The Lenze E84AVSCE5524SX0 is a powerful 8400 StateLine frequency inverter designed for general-purpose motion control across a variety of demanding automation tasks. Delivering 5.5 kW output power and 13 A current capacity, it supports three-phase 400 V input and is ideal for applications such as palletizers, extruders, conveyors, and filling systems. With built-in brake chopper, CANopen communication, and energy-saving “VFC eco” mode, this drive enables efficient, secure, and precise motor operation.
Technical Specifications
- Model: E84AVSCE5524SX0 Lenze
- Series: 8400 StateLine
- Power Rating: 5.5 kW
- Rated Current: 13 A
- Main Supply: 3PH, 400 V
- Output Frequency: 0–599 Hz
- Enclosure: IP20
- Weight: 4.4 kg
- Dimensions: 140 × 270 × 199 mm (W × H × D)
Control & Interfaces
- Control Modes: V/f Control, Sensorless Vector Control
- Analog Inputs / Outputs: 1 / 1
- Digital Inputs / Outputs: 4 / 1
- Integrated Brake Chopper: Yes
- Feedback: Speed feedback not required (Sensorless)
Communication Protocols
- CANopen (on board)
- EtherCAT
- EtherNet/IP
- POWERLINK
- PROFIBUS
- PROFINET
Environmental & Safety
- Operating Temperature: -10°C to +45°C
- Storage Temperature: -25°C to +60°C
- Integrated Safety: STO (Safe Torque Off)
- Overload Capacity: 200% for 3 seconds
- Restart Protection: For cyclic mains switching
Key Features & Benefits
✅ Compact IP20 Design: Slim format for easy control cabinet installation.
✅ Energy Saving: “VFC eco” mode reduces energy consumption.
✅ Integrated Safety: STO function for enhanced protection.
✅ Flexible Connectivity: Multi-protocol support for system integration.
✅ Robust Performance: 200% overload handling for heavy-duty cycles.
✅ Brake Chopper Built-In: Simplifies braking in dynamic applications.
📦 Buy Lenze E84AVSCE5524SX0 Online – Official New Product
At Drive Outlet Megastore, we offer unbeatable Lenze E84AVSCE5524SX0 prices.
Designed for controlled, energy-efficient motion in demanding industrial settings such as logistics and plastics processing.
Brand new • Fully warrantied • Fast UK delivery available
