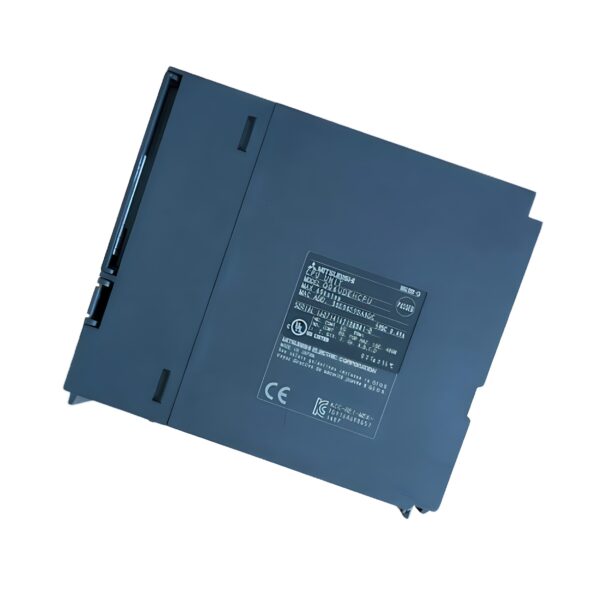

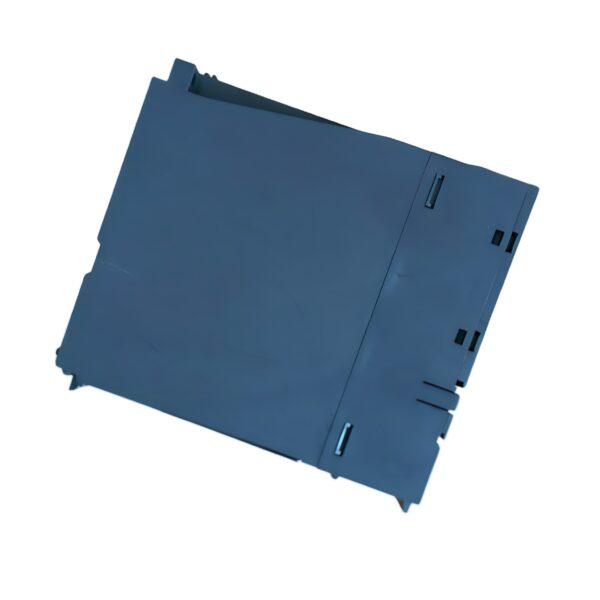

Q06UDEHCPU Mitsubishi MELSEC-Q Series Universal CPU Module
The Mitsubishi Q06UDEHCPU is a high-speed Universal QCPU module from the MELSEC-Q Series, engineered for fast logic processing, rich connectivity, and scalable I/O. With 60K program steps and a 9.5 ns LD instruction execution time, it’s ideal for advanced machine control, motion, and data-driven automation.

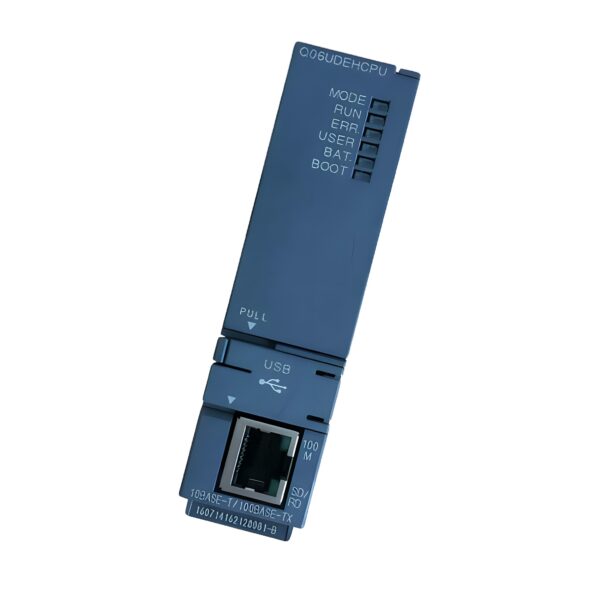

Built with integrated Ethernet and USB ports, the Q06UDEHCPU supports up to 4,096 local I/O points and up to 8,192 points including remote I/O. A compact, efficient, and marine-approved CPU for high-performance applications.
Technical Specifications
Model: Q06UDEHCPU
Series: MELSEC-Q
Controller Type: Universal Model QCPU
Program Capacity: 60K steps
Instruction Speed (LD): 9.5 ns
Instruction Speed (MOV): 19 ns
Local I/O Capacity: 4,096 points
Max I/O with Remote: 8,192 points
Integrated Interfaces: Ethernet, USB
Buffer Battery: Yes
Internal Current Consumption: 0.39 A
Electrical Specifications
Power Supply: Supplied via Q Series base unit
Instruction Set: Ladder Logic, MOV, arithmetic, and data handling
Memory Type: Battery-backed RAM with non-volatile program retention
Mechanical Specifications
Mounting: DIN rail or base rack
Dimensions (H × W × D): 98 × 27.4 × 89.3 mm
Weight: 0.22 kg
Cooling: Natural convection
Enclosure: Compact industrial-grade housing
Environmental Specifications
Operating Temperature: 0°C to 55°C
Storage Temperature: –25°C to 75°C
Humidity: 5% to 95% RH (non-condensing)
IP Rating: IP20
Vibration/Shock Resistance: IEC 60068-2 compliant
Compliance & Certifications
CE Marked: Yes
UL / cUL Listed: Yes
UKCA Compliant: Yes
Marine Approvals: ABS, BV, DNV GL, LR, NK, RINA
EAC: Not compliant
Key Features & Benefits
✅ High-Speed Logic: 9.5 ns LD instruction time for fast processing.
✅ 60K Program Steps: Suitable for complex and scalable control logic.
✅ Built-in Ethernet & USB: Streamlined communications and programming.
✅ Marine Certified: Approved for use in offshore and maritime environments.
✅ Expandable I/O: Supports both local and remote I/O configurations.
📦 Order the Mitsubishi Q06UDEHCPU from Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable Mitsubishi Q06UDEHCPU prices.
Power your automation with the Q06UDEHCPU — a flexible and performance-driven CPU for fast logic execution, versatile networking, and reliable I/O scalability. Trusted by engineers and system integrators worldwide.
Check availability or request a quote today.
Speed. Reliability. Mitsubishi intelligence. — Drive Outlet Megastore
