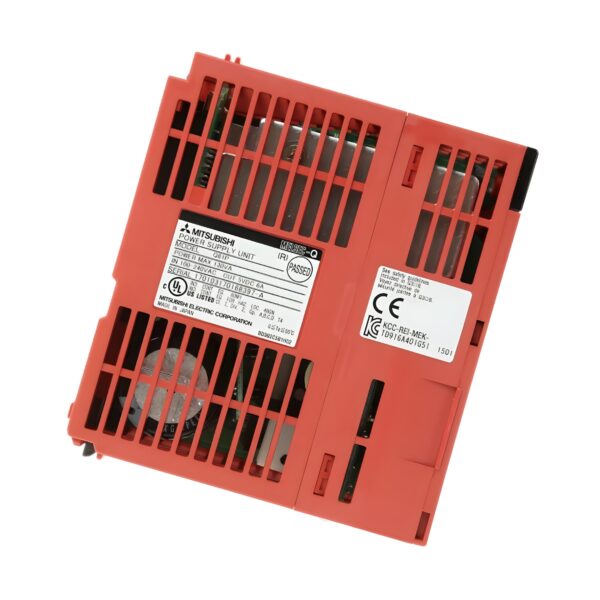

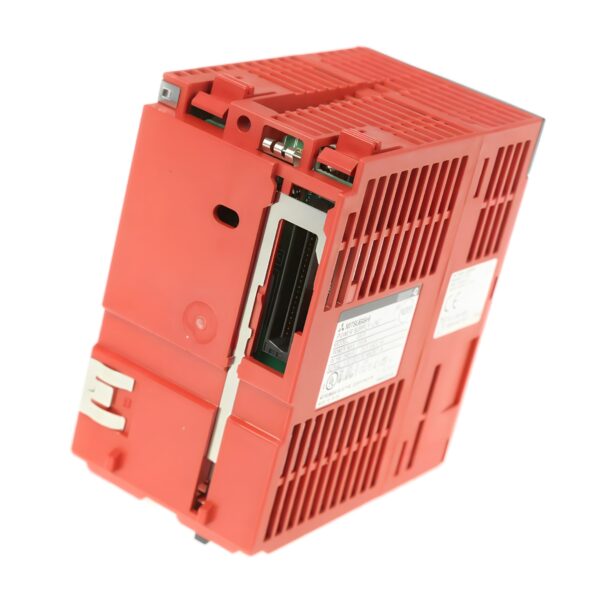

Q61P Mitsubishi MELSEC-Q Series Power Supply Module

The Mitsubishi Q61P is a robust and compact power supply module for MELSEC-Q Series PLC systems, designed to provide stable 5V DC output at up to 6A for CPU modules and I/O units. With wide-range 100–240V AC input, the Q61P ensures reliable performance in global control panel installations.

Engineered for use in Q Series base units, this power supply delivers consistent output under demanding conditions and is certified for use in marine, industrial, and commercial automation systems. Ideal for powering CPUs such as the Q03UDVCPU and Q00UJCPU.

Technical Specifications

Model: Q61P
Series: MELSEC-Q
Module Type: Power Supply Unit
Input Voltage Range: 100–240 V AC
Input Frequency: 50/60 Hz
Maximum Input Apparent Power: 105 VA
Output Voltage: 5 V DC
Output Current: 6 A (5V line)
Current Type: AC input, DC output

Electrical Specifications

Power Factor Correction: Not specified
Internal Protection: Overcurrent and thermal shutdown
Backplane Supply: Powers CPU and connected Q Series modules via base unit

Mechanical Specifications

Mounting: DIN rail or base rack
Dimensions (H × W × D): 98 × 55.2 × 90 mm
Weight: 0.3 kg
Cooling: Natural convection
Enclosure: Industrial-grade compact housing

Environmental Specifications

Operating Temperature: 0°C to 55°C
Storage Temperature: –25°C to 75°C
Humidity: 5% to 95% RH (non-condensing)
IP Rating: IP20
Vibration/Shock Resistance: IEC 60068-2 compliant

Compliance & Certifications

CE Marked: Yes
UL / cUL Listed: Yes
UKCA Compliant: Yes
Marine Approvals: ABS, BV, DNV GL, LR, NK, RINA
EAC: Not compliant

Key Features & Benefits

✅ Global Input Range: 100–240 V AC for international compatibility.

✅ High Output Capacity: 6 A at 5V DC supports multiple modules.

✅ Compact Design: Space-saving footprint in Q Series racks.

✅ Marine Certified: Approved for offshore and shipboard systems.

✅ Reliable Power Distribution: Ensures stable operation of all connected Q Series devices.

📦 Order the Mitsubishi Q61P from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Mitsubishi Q61P prices.

Deliver consistent and efficient power to your MELSEC-Q control system with the Q61P — a compact and globally approved power supply module built for reliability in industrial environments.

Check availability or request a quote today.
