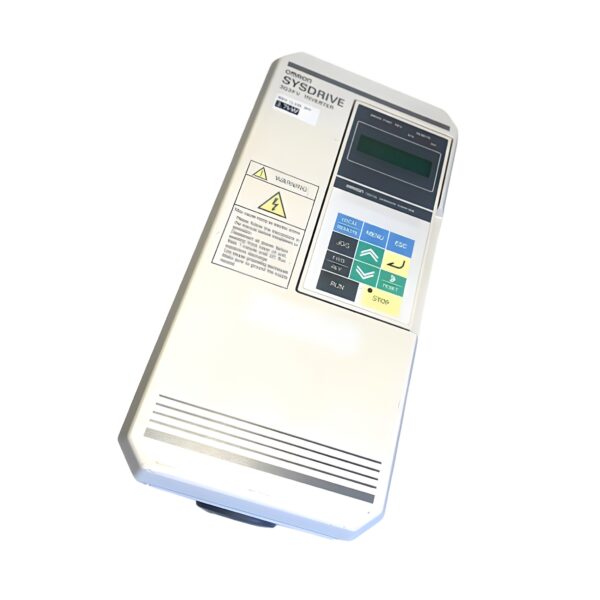

Omron 3G3FV-A4037-CE Inverter Drive – 6.1kVA (3.7kW) 3-Phase 380–460V, 8A Output, Sysdrive 3G3FV Series, V/F Control

The Omron 3G3FV-A4037-CE is a high-performance AC inverter drive from the trusted Sysdrive 3G3FV series, engineered for precise and efficient control of 3-phase induction motors. With a rated power of 6.1kVA (3.7kW) and 8A output current, this inverter delivers smooth, stable torque and reliable speed regulation under varying load conditions. It supports a wide input range of 380–460V AC, 3-phase, 50/60Hz, providing flexibility for a wide range of global industrial installations.

Designed for durability and quiet operation, the 3G3FV-A4037-CE incorporates advanced V/F control and multiple protection features, making it ideal for fans, pumps, conveyors, mixers, and other automation applications requiring consistent and dependable drive performance.

Technical Specifications

Model: 3G3FV-A4037-CE Omron
Brand: Omron
Series: Sysdrive 3G3FV
Type: Variable Frequency Drive (VFD)
Power Rating: 6.1 kVA (3.7 kW)
Input Voltage: 380–460 VAC, 3 Phase
Input Frequency: 50/60 Hz
Output Voltage: 0–460 VAC, 3 Phase
Output Current: 8 A
Control Method: V/F (Voltage/Frequency) Control
Ideal For: Fans, pumps, conveyors, blowers, and process control systems

Electrical Specifications

• Input Voltage: 380–460 VAC, 3 Phase
• Input Frequency: 50/60 Hz
• Output Power: 3.7 kW (6.1 kVA)
• Output Current: 8 A
• Output Voltage: 0–460 VAC, 3 Phase
• Frequency Range: 0.1–400 Hz adjustable
• Control Type: V/F control with torque boost
• Overload Capacity: 150% of rated current for 60 seconds

Mechanical Specifications

• Mounting Type: Panel / Wall mount
• Cooling Method: Forced air cooling
• Connections: Screw terminals
• Display Type: LED or optional digital operator
• Housing Material: Industrial-grade enclosure
• Colour: Grey / Black
• Compact Design: Space-saving structure for control cabinets

Environmental Specifications

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +65°C
• Humidity: 5–95% RH (non-condensing)
• Altitude: Up to 1,000 m without derating
• Protection Rating: IP20 (open chassis)
• Application Category: Industrial automation, process, and motion control

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: EN 61800-5-1, EN 61800-3

Key Features & Benefits

✅ High Output Performance. 6.1kVA (3.7kW) capacity with stable torque and speed regulation.

✅ Wide Input Range. Operates from 380–460V 3-phase for flexible installation.

✅ V/F Control Precision. Smooth acceleration and low motor noise operation.

✅ Compact Form Factor. Fits easily into industrial control panels.

✅ Overload Protection. 150% rated current capability for heavy loads.

✅ Trusted Omron Quality. Engineered for long service life and consistent performance.
