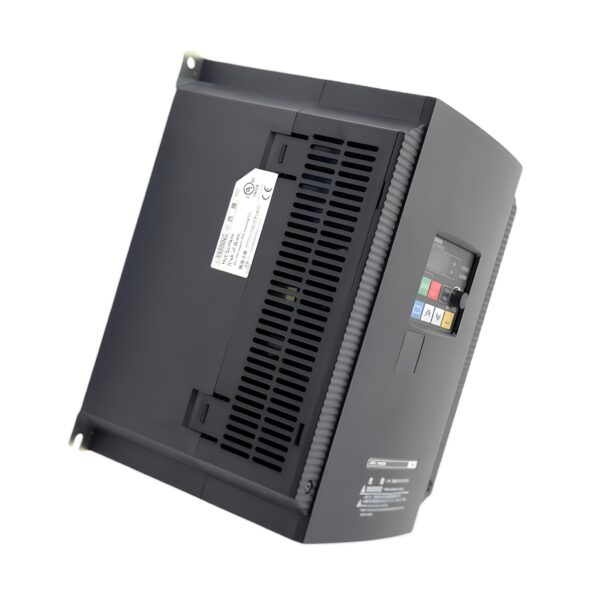

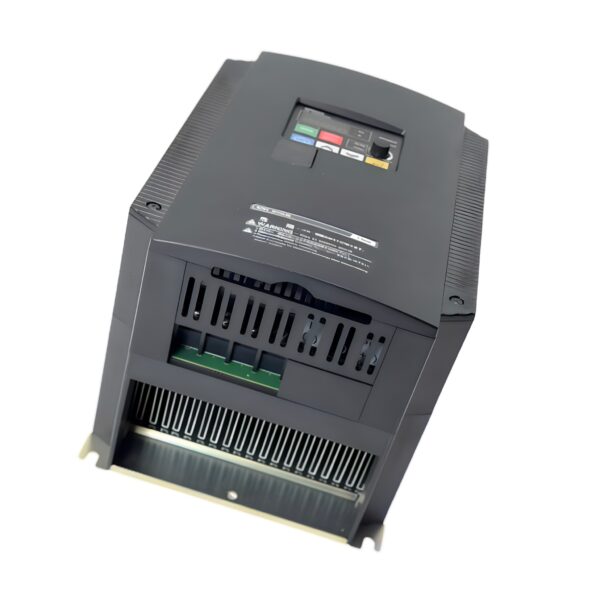

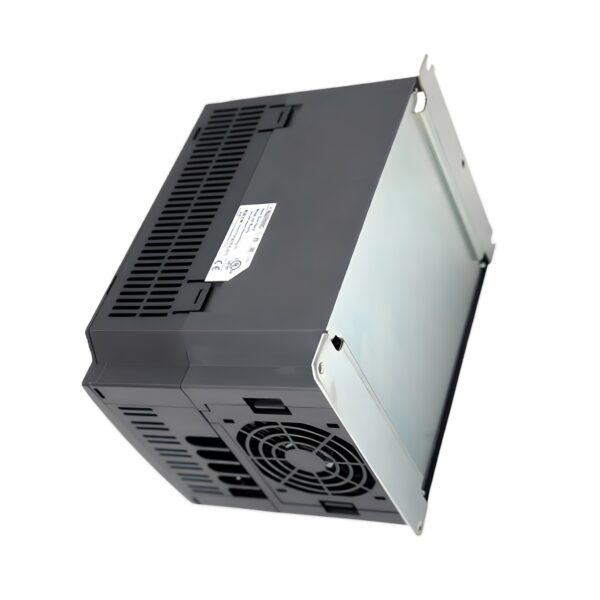

Omron 3G3JX-A4075-EF Inverter Drive – 7.5kW (10HP) 3-Phase 400VAC, 16A Output, JX Series Frequency Inverter with Vector & V/F Control

The Omron 3G3JX-A4075-EF is a high-capacity AC inverter drive from the JX Frequency Inverter series, engineered for efficient and precise speed control of three-phase induction motors. Delivering 7.5kW (10HP) output with a rated 16A current, this drive operates on a 400VAC 3-phase power supply and supports both V/F and sensorless vector control for stable torque and smooth motor performance.

Designed for medium to heavy-duty automation tasks, the 3G3JX-A4075-EF offers reliable acceleration, reduced motor noise, energy-efficient operation, and a compact IP20 panel-mount design. Ideal for pumps, compressors, conveyors, agitators, machine tools, HVAC systems, and industrial production equipment.

---

Technical Specifications

Model: 3G3JX-A4075-EF Omron
Brand: Omron
Series: JX Frequency Inverters
Type: Variable Frequency Drive (VFD)
Power Rating: 7.5 kW (10 HP)
Input Voltage: 400 VAC, 3 Phase
Input Frequency: 50/60 Hz
Output Voltage: 0–400 VAC, 3 Phase
Output Current: 16.0 A
Control Method: V/F or Sensorless Vector Control
Ideal For: Pumps, compressors, conveyors, mixers, HVAC, and factory automation

---

Electrical Specifications

• Input Voltage: 380–400 VAC, 3 Phase
• Input Frequency: 50/60 Hz
• Output Power: 7.5 kW (10 HP)
• Output Current: 16.0 A
• Output Voltage: 0–400 VAC, 3 Phase
• Output Frequency: 0.1–400 Hz adjustable
• Control Modes: V/F or Sensorless Vector
• Overload Capacity: 150% of rated current for 60 seconds
• Efficiency: High-efficiency PWM motor control system

---

Mechanical Specifications

• Mounting Style: Panel / Wall mount
• Cooling Method: Forced air cooling (integrated fan)
• Connections: Heavy-duty screw terminals
• Display Type: LED status interface / Optional digital operator keypad
• Housing Material: Industrial-grade thermoplastic
• Colour: Grey / Black
• Protection: IP20 chassis for enclosed control panels

---

Environmental Specifications

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +65°C
• Humidity: 5–95% RH (non-condensing)
• Altitude: Up to 1,000 m without derating
• Protection Rating: IP20
• Application Category: Medium to heavy-duty industrial environments

---

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Conforms To: EN 61800-5-1, EN 61800-3, IEC 60335

---

Key Features & Benefits

✅ 7.5kW Output Capacity. Suitable for pumps, compressors, and industrial processes.

✅ Vector & V/F Control. Stable torque and smooth rotation across load ranges.

✅ Energy Efficient. High-efficiency PWM inverter design reduces power usage.

✅ Quiet Operation. Low motor noise and smooth startup profiles.

✅ Easy Integration. IP20 chassis and screw terminal wiring for control panels.

✅ Trusted Omron Reliability. Long-life durability under continuous operation.

---

📦 Order the Omron 3G3JX-A4075-EF from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Omron 3G3JX-A4075-EF prices — the reliable and efficient drive solution for heavy-duty industrial motor control.

Check stock now or request a quote.

Drive stronger. Operate smarter. Omron engineered — only at Drive Outlet Megastore.

---
