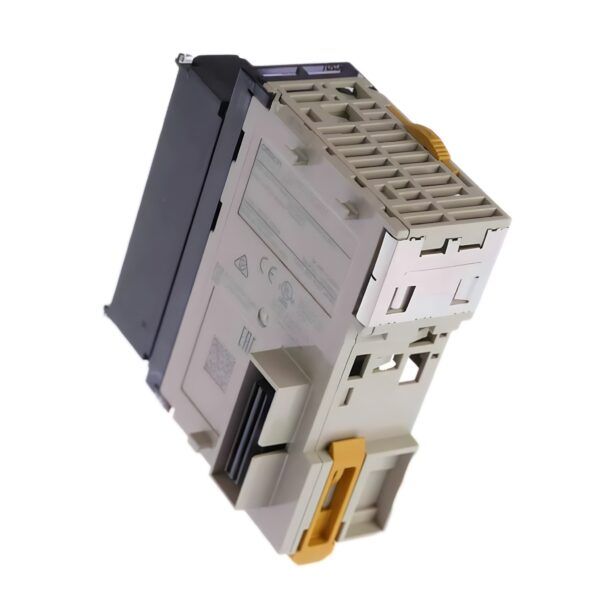

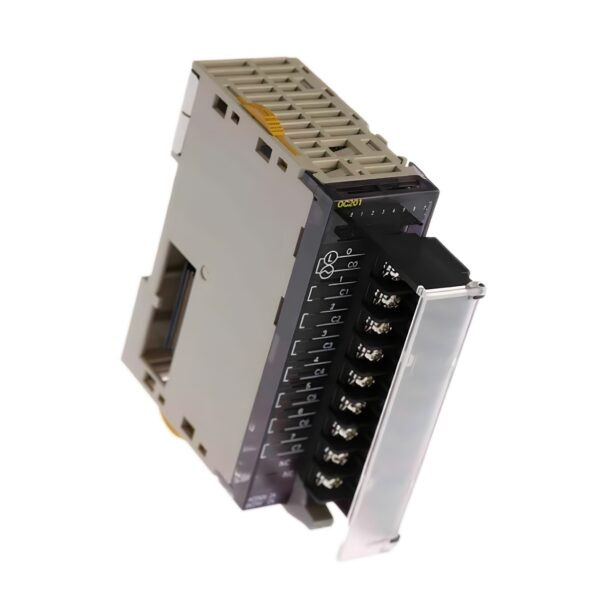

Omron CJ1W-OC201 Digital Output Unit
CJ1W-OC201
  1. Omron CJ1W-OC201 Digital Output Unit
  2. CJ1W-OC201

Omron CJ1W-OC201 Digital Output Unit

£235.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsOmron
Model Omron OC201
Product Type Digital Output Unit
PLC Series Compatibility CJ1, CJ2, CS1
Rated Output Current 2 A per channel
Module Type Basic I/O Unit
Output Type Relay (NO contacts)
Common Type Independent commons
Mounting Type DIN-rail with CJ-series base
I/O Connector Type Screw terminal block
Terminal Type Fixed (non-detachable)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: CJ1W-OC201 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Omron CJ1W-OC201 Digital Output Unit

The CJ1W-OC201 is a relay-based digital output module for Omron’s CJ-series PLCs, offering 8 independent relay outputs rated for up to 250 VAC or 24 VDC at 2 A per point . Designed with independent commons and a screw terminal connection , this unit provides electrical isolation and reliable switching for a wide range of industrial control loads including solenoids, contactors, signal lights, and small actuators.

Technical Specifications

Model Omron OC201
Product Type Digital Output Unit
PLC Series Compatibility CJ1, CJ2, CS1
Module Type Basic I/O Unit
I/O Bus Interface CJ-series CPU Bus
Number of Digital Outputs 8
Output Type Relay (NO contacts)
Rated Output Voltage 5–250 V AC / 5–24 V DC
Rated Output Current 2 A per channel
Common Type Independent commons
Short-Circuit Protection Not supported
Isolation Method Relay-based galvanic isolation

Electrical Specifications

Output Delay Time Approx. 10 ms ON/OFF
Leakage Current Not applicable (mechanical contacts)
External Power Supply Not required
Internal Current Consumption Approx. 0.10 A (5 VDC from internal bus)
Relay Contact Life Mechanical: 20 million operations min. Electrical: 100,000 operations min. (at rated load)

Mechanical Specifications

Mounting Type DIN-rail with CJ-series base
Dimensions (H × W × D) 90 × 31 × 89 mm
Weight 88 g
I/O Connector Type Screw terminal block
Terminal Type Fixed (non-detachable)
Enclosure Type Compact modular plastic housing

Environmental Conditions

Operating Temperature 0 to 55°C
Storage Temperature –25 to 70°C
Operating Humidity 10% to 90% RH (non-condensing)
Vibration Resistance IEC 60068-2-6 compliant
Shock Resistance IEC 60068-2-27 compliant
Protection Rating IP20 (when mounted in panel)
