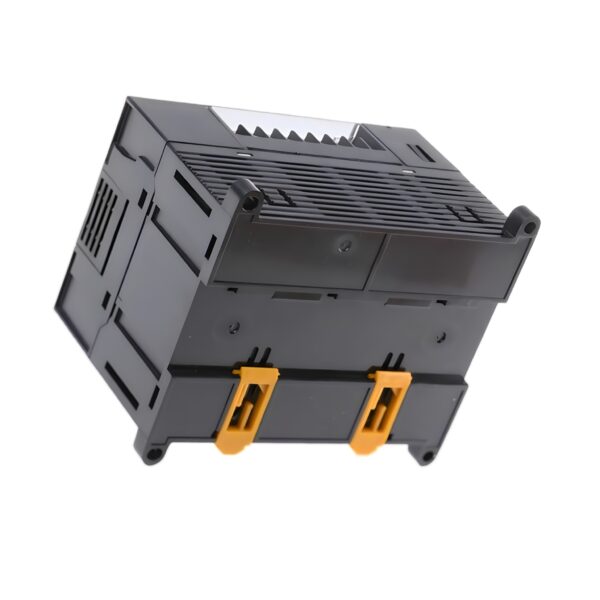

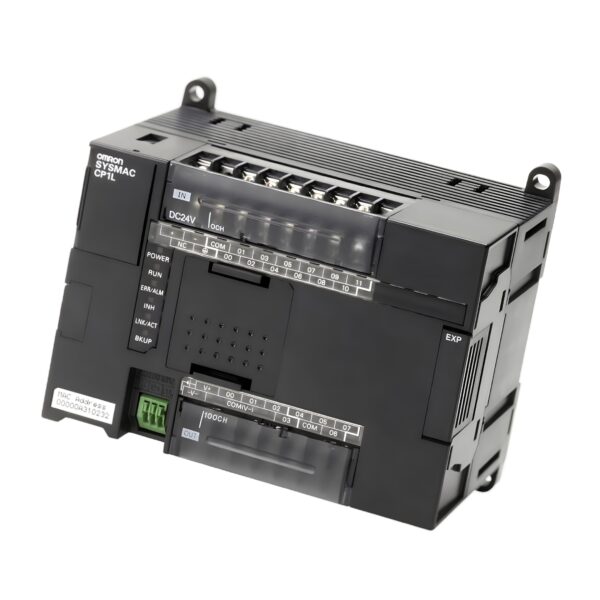

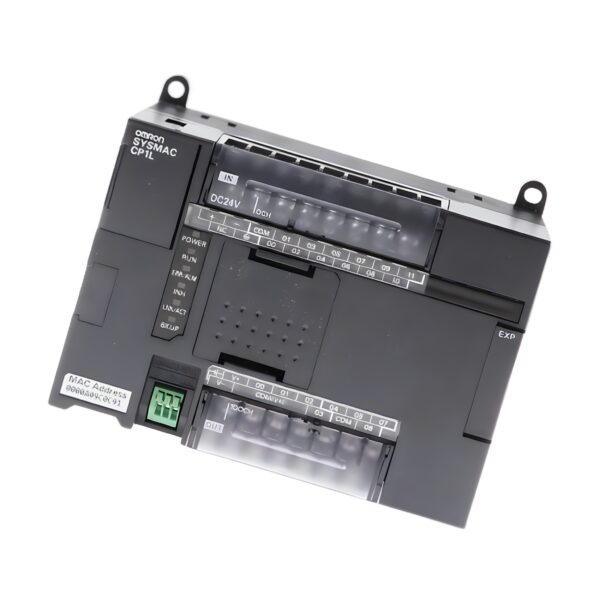

Omron CP1L-EL20DT1-D Compact PLC

The Omron CP1L-EL20DT1-D is a high-performance compact programmable logic controller (PLC) from the CP1L series. It features 12 digital inputs (PNP/NPN selectable), 8 PNP transistor outputs (0.3 A each), and 2 analog inputs, making it ideal for small to medium-sized control systems requiring built-in analog processing, fast digital control, and Ethernet connectivity.

This model supports up to 5K program steps and 10K words of data memory, with a 0.55 µs basic instruction execution speed, delivering reliable logic control in time-critical applications. Built to handle 60 local I/O points with support for expansion, the CP1L-EL20DT1-D combines flexibility and performance in a compact DIN-mount form factor.

Technical Specifications

Model: CP1LEL20DT1D
Brand: Omron
Series: CP1L
Type: Compact CPU Unit (All-in-One PLC)
Power Supply: 24 VDC
Program Capacity: 5,000 steps
Data Memory: 10,000 words
Basic Instruction Execution Time: 0.55 µs
Memory Backup: Battery-free (flash-based)

I/O Specifications

• Digital Inputs: 12 (PNP/NPN selectable)
• Digital Outputs: 8 (PNP transistor, 0.3 A max/channel)
• Analog Inputs: 2 channels (built-in)
• Maximum Local I/O: 60 points
• Maximum Expansion Units: 1
• Max Analog I/O Channels (with expansion): 14

Communication & Connectivity

• Ethernet Port: 1 × 10/100 Mbps (Ethernet TCP/IP)
• USB Port: None
• Serial Ports: None onboard (options available via modules)
• Communication Options (via modules): RS-232C, RS-422, RS-485
• PTP Axis Control: Up to 2 axes
• Pulse Output Frequency: Up to 100 kHz
• Encoder Inputs: 4 channels, up to 100 kHz

Mechanical Specifications

• Dimensions (W × H × D): 130 × 90 × 85 mm
• Weight: 380 g
• Mounting: DIN rail or panel mount

Environmental Specifications

• Operating Temperature: 0 to 55°C
• Protection Rating: IP20 (when properly enclosed)

Applications

• Packaging machines
• Material handling and conveyors
• Process control with analog sensors
• Small OEM automation solutions
• Industrial networking with Ethernet communication

Features & Benefits

✅ Integrated Analog I/O: No need for separate analog expansion.

✅ Built-in Ethernet: Seamless connection to HMIs, SCADA, and networks.

✅ Fast Execution: Ideal for time-sensitive industrial logic operations.

✅ Compact Footprint: Space-saving design for panel installations.

✅ Expandable: Supports one additional expansion unit.

📦 Available now at Drive Outlet Megastore

The Omron CP1L-EL20DT1-D Compact PLC provides reliability in a compact, high-visibility interface. Upgrade your machine’s usability today with this easy-to-integrate display unit.

Omron CP1L Series – Scalable Power for Compact Automation.

Available now at Drive Outlet Megastore – Your source for genuine Omron PLC systems.
