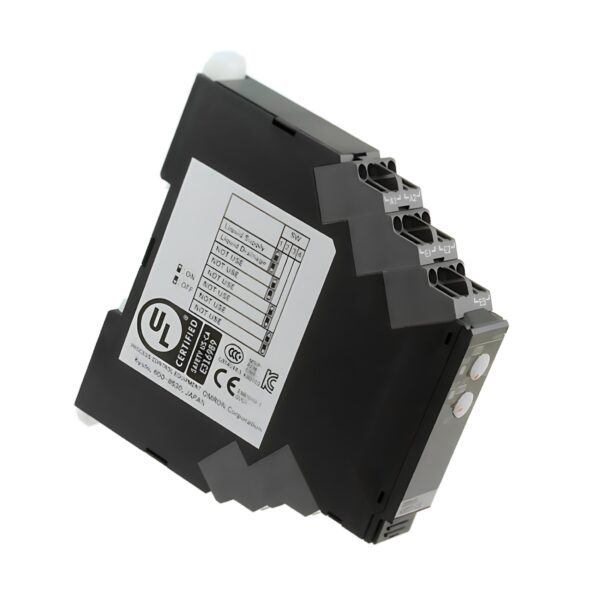

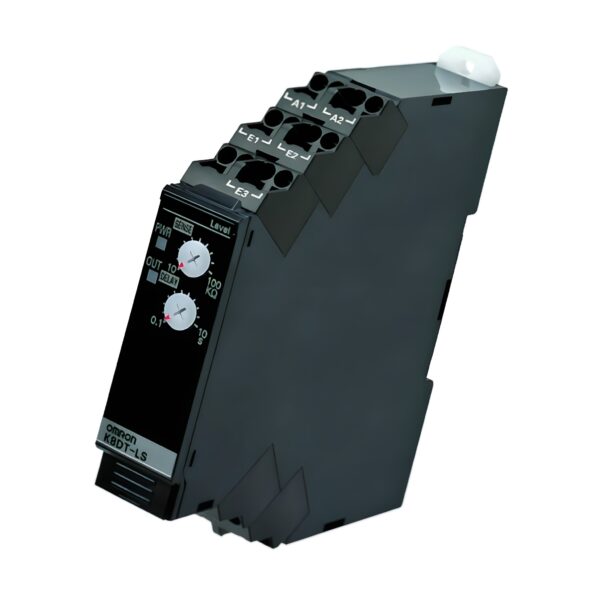

Omron K8DT-LS1CA Conductive Level Controller – Liquid Level, 100–240VAC, DIN Rail

The Omron K8DT-LS1CA is a conductive level monitoring relay designed for reliable liquid level detection and control in purified water, sewage, and wastewater systems. Operating on a 100–240 VAC supply, it detects liquid presence using conductive electrodes across a resistance range of 10 kΩ to 100 kΩ for accurate level sensing and pump control.

With a compact 17.5 mm width and DIN rail mount design, the K8DT-LS1CA is ideal for control panels with limited space. Featuring Push-In Plus terminals and a single SPDT relay output, it offers fast installation, stable performance, and dependable operation in a variety of industrial fluid management systems.

Technical Specifications

Model: K8DT-LS1CA Omron
Series: K8DT Conductive Level Controller
Function: Conductive liquid level detection and control
Application: Purified water, sewage, wastewater
Form Factor: DIN Rail – Slim 17.5 mm Width
Connection Method: 3-wire electrode system
Terminal Type: Push-In
Ideal For: Liquid tanks, reservoirs, sump systems, and process automation

Electrical Specifications

• Supply Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Detection Range: 10 kΩ to 100 kΩ
• Output Type: Relay (Electromechanical)
• Output Contacts: SPDT (1 changeover)
• Number of Electrodes: 3 inputs

I/O & Communication Interfaces

• Output Relay: 1 x SPDT
• Electrode Inputs: 3
• Signal Indicators: LED status indicators
• Communication: Not supported

Mechanical Specifications

• Width: 17.5 mm
• Mounting: DIN rail 35 mm
• Case Material: Industrial-rated polymer
• Body Colour: Black
• Wiring Method: Push-In terminals
• Maximum Cable Length: 100 m

Environmental Specifications

• Humidity: 5–95% RH (non-condensing)
• Vibration / Shock: Industrial-grade resistance
• Application Category: Industrial low-voltage systems

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ Conductive Liquid Detection. Ideal for purified and wastewater systems.

✅ Wide Detection Range (10k–100kΩ). Supports various water conductivity levels.

✅ Slim 17.5 mm DIN Housing. Space-saving panel design.

✅ Push-In Plus Terminals. Fast, secure, and vibration-resistant wiring.

✅ Three-Electrode Inputs. Enables versatile liquid level configurations.

✅ SPDT Output Relay. Reliable switching for pump or valve control.
