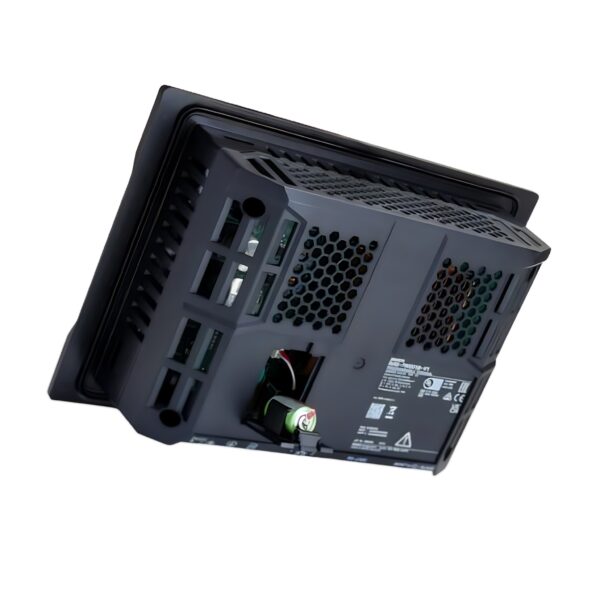

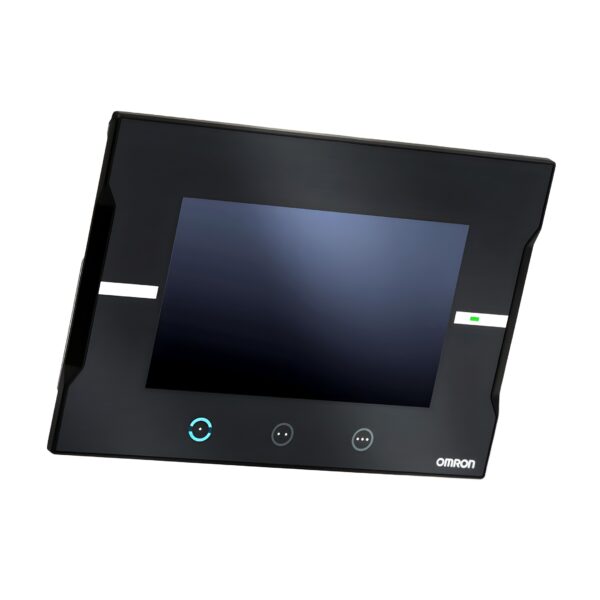

NA5-7W001B-V1 Omron 7″ Wide Touchscreen HMI

The Omron NA5-7W001B-V1 is a feature-rich 7-inch wide-screen HMI from the NA5 Series designed for advanced machine visualization and Sysmac automation environments. It features a TFT LCD with 24-bit color depth (16.7 million colors) and a sharp 800 × 480 pixel resolution, delivering high-quality, vibrant displays for modern industrial applications.

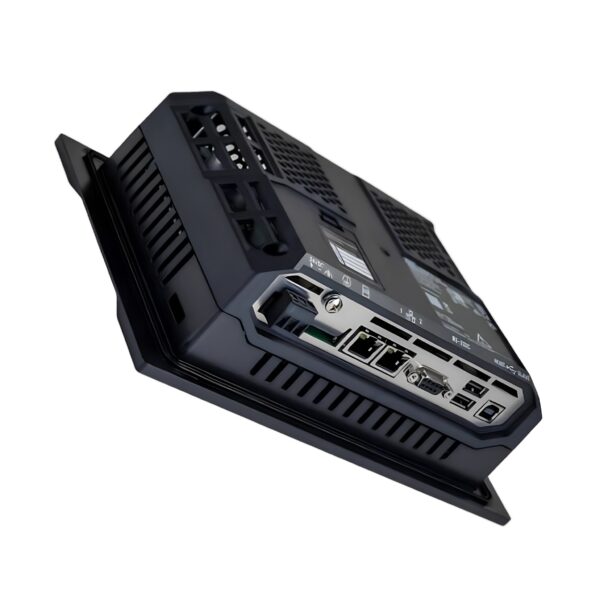

With 2 Ethernet ports, 3 USB ports, and 1 RS-232 port, the NA5-7W001B-V1 ensures versatile connectivity to controllers, external devices, and networks. Housed in a sleek black front panel, it is IP65 rated and panel-mountable, ideal for applications requiring high-performance graphics and reliable interface.

Technical Specifications

• Model: NA57W001BV1
• Display Type: TFT LCD
• Screen Size: 7 inches (diagonal)
• Resolution: 800 × 480 pixels (WVGA)
• Color Depth: 24-bit, 16,777,216 colors
• Frame Color: Black
• Ethernet Ports: 2
• USB Ports: 3
• Serial Ports:
  • 1 × RS-232
  • 0 × RS-422
  • 0 × RS-485
• Degree of Protection (Front): IP65
• Panel Dimensions:
  • Front Width: 236 mm
  • Front Height: 165 mm
• Panel Cutout Dimensions:
  • Width: 196 mm
  • Height: 140 mm
• Built-in Depth: 63.1 mm
• Weight: 1300 g

Key Features & Advantages

✅ 7-inch widescreen TFT display provides a clear, vibrant viewing experience.

✅ High 800 × 480 resolution ensures sharp visualization for critical machine data.

✅ 24-bit color support (16.7 million colors) for smooth, modern graphics.

✅ 2 Ethernet and 3 USB ports enable multi-device connectivity and integration.

✅ Compact panel design with IP65 front for dust and water resistance.

✅ RS-232 communication support for legacy device interfacing.

✅ Fully compatible with Sysmac Studio and designed for seamless integration with Omron’s NJ/NX controllers.

📦 Available from Drive Outlet Megastore

The NA5-7W001B-V1 offers an intuitive, rich user interface for machine control systems. With its high-performance graphics engine, robust communications, and slim footprint, it’s the ideal choice for professional HMI deployments in manufacturing and automation.

Looking for configuration support or compatible accessories? Our team at Drive Outlet can assist with full integration solutions.

Omron NA Series HMIs – Engineered for performance. Delivered by Drive Outlet.
