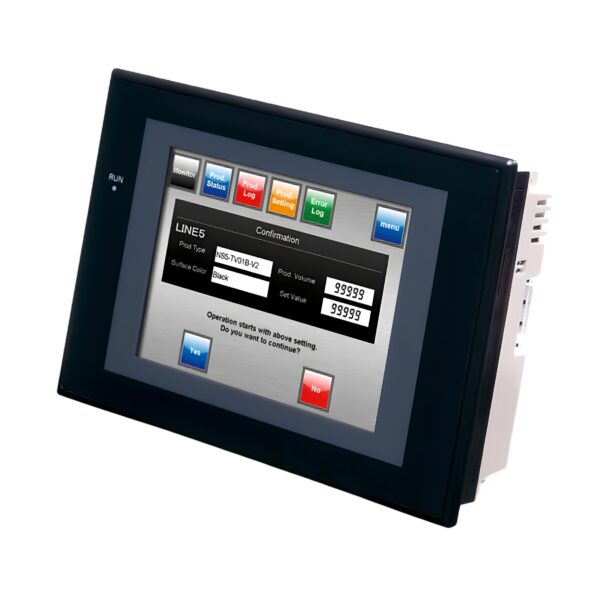

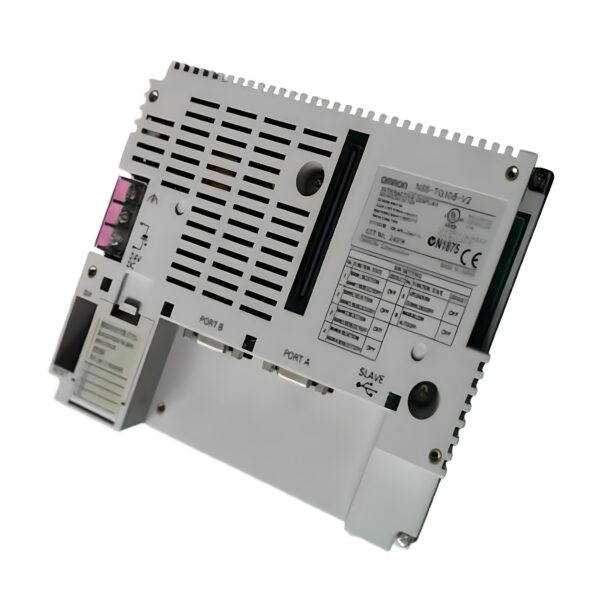

Omron NS5-TQ10B-V2 5.7″ Touchscreen HMI

The Omron NS5TQ10BV2 is a rugged, high-performance touchscreen HMI from the NS Series, designed for intuitive machine control and monitoring. Featuring a 5.7-inch high-brightness TFT color display with 256 display colors (up to 768 for .BMP/.JPG) and a QVGA resolution of 320 × 240 pixels, this HMI delivers precise and vibrant visuals for industrial environments.

With 2 x RS-232C communication ports, 60 MB internal memory, and 24 VDC power input, it ensures seamless connectivity and performance. The unit is enclosed in a black case and protected with IP65 front sealing, making it suitable for use in dusty and wet conditions. Fully RoHS compliant, this HMI is ideal for panel mounting in industrial automation systems.

Technical Specifications

• Model: NS5-TQ10B-V2
• Touchscreen Type: Analog resistive
• Display Type: TFT color LCD
• Display Size: 5.7 inches
• Resolution: 320 × 240 pixels (QVGA)
• Color Depth:
  • 256 standard colors
  • 768 colors for .BMP/.JPG
• Program Memory: 60 MB
• Communication Ports:
  • 2 × RS-232C serial ports
• RoHS Status: RoHS Compliant
• Operating Temperature: 0°C to 50°C
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Ingress Protection: IP65 front / NEMA 4
• Mounting: Panel mount
• Case Color: Black
• Package Type: Bulk
• edacad Model: NS5-TQ10B-V2

Key Features & Advantages

✅ Bright 5.7-inch TFT color display ensures excellent operator visibility.

✅ Supports advanced graphics with .BMP/.JPG image support up to 768 colors.

✅ 2 × RS-232C ports for flexible PLC and serial device connectivity.

✅ Industrial 24 VDC operation supports direct integration into control panels.

✅ IP65-rated front panel resists dust and water ingress; suitable for harsh environments.

✅ RoHS compliant for environmentally friendly manufacturing and compliance.

✅ Bulk packaging for OEM and panel assembly applications.

📦 Available from Drive Outlet Megastore

The NS5-TQ10B-V2 is an excellent HMI for process control, machine interface, and visualization applications. With its robust design and versatile connectivity, it’s a staple for modern industrial panels.

Looking for accessories or programming support? Drive Outlet’s automation experts can help.

Omron HMIs: Built for clarity. Backed by Drive Outlet.
