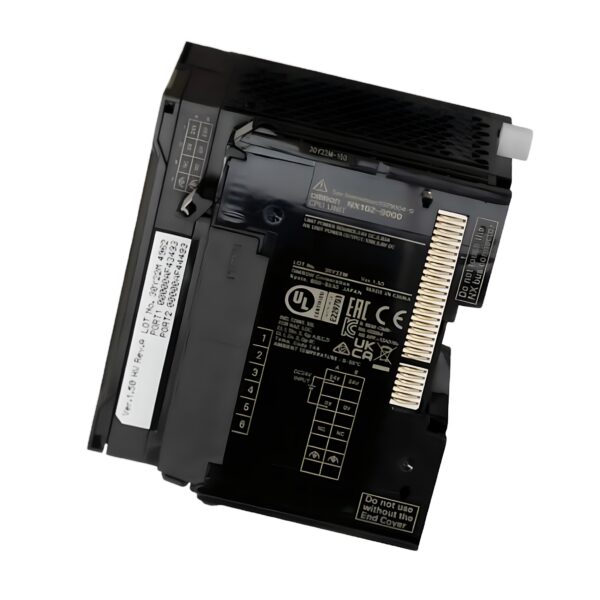

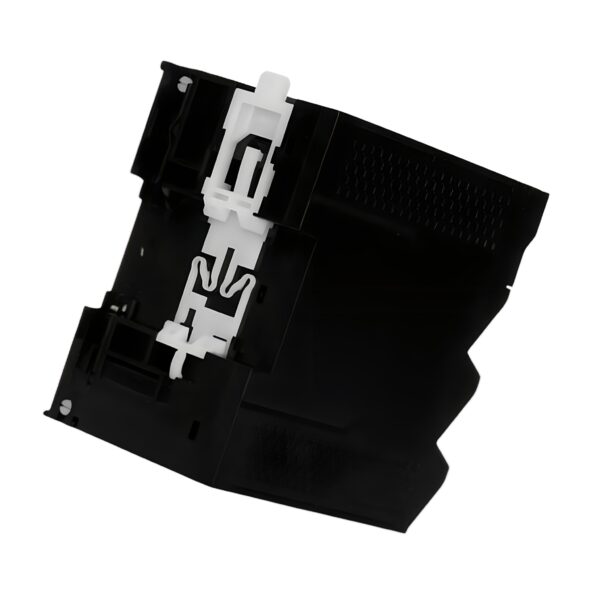

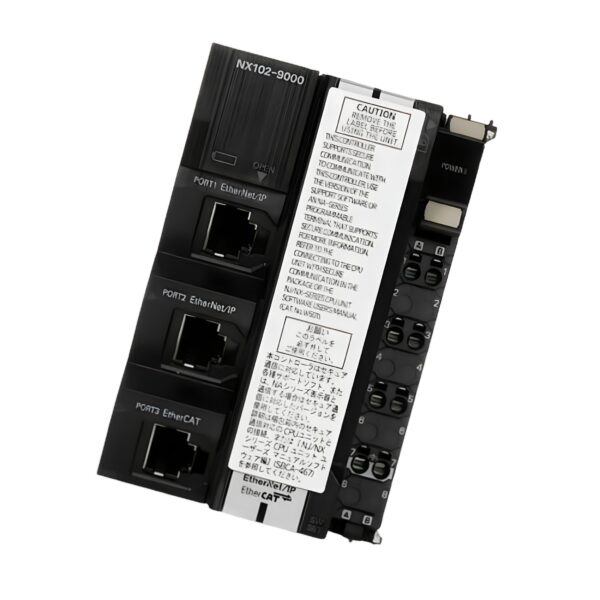

Omron NX102-9000 Sysmac Modular Controller

The Omron NX102-9000 is a high-performance Sysmac Modular Machine Automation Controller, designed to unify control of logic, motion, and data handling in compact industrial applications. Offering 5 MB of program memory and 33.5 MB of variable memory, this CPU supports powerful real-time control with 1 ms primary cycle times and integration-ready OPC UA and EtherNet/IP protocols, making it ideal for scalable automation systems.

This controller enables precise motion control, supports 4 PTP axes, and manages up to 64 EtherCAT remote I/O nodes, ensuring flexible and robust architecture for factory automation, robotics, and data-driven industrial systems.

Performance & Control Specifications

Model: NX1029000
Platform: Sysmac NX1 Series
CPU Type: Modular machine controller
Program Memory: 5 MB
Variable Memory: 33.5 MB
Primary Task Cycle Time: 1 ms
Motion Control:

• Max Synchronous Axes: 0
• Max PTP Axes: 4
• Max Axes (incl. virtual): 4
  I/O Bus System: NX I/O Bus
  Max Expansion Units: 32

Communication & Interfaces

• Ethernet Ports:
  • 2 × RJ45 (1000Base-T/100Base-TX/10Base-T)
  • Supports EtherNet/IP, OPC UA, TCP/IP
• Fieldbus Master:
  • EtherCAT Master for real-time I/O and drive control
  • Up to 64 remote I/O nodes
• Serial Communication (via options):
  • RS-232C
  • RS-422
  • RS-485

Electrical & Mechanical

• Power Supply Voltage: 24 VDC (supplied via NX power unit)
• Power Consumption: Determined by I/O configuration
• Product Dimensions (W × H × D): 66 × 100 × 100 mm
• Weight: 470 g (unpacked)
• Mounting Method: DIN rail

Environmental Ratings

• Operating Temperature: 0 to 55°C
• Storage Temperature: –20 to +70°C
• Humidity Range: 10% to 90% RH (non-condensing)
• Shock Resistance: Conforms to IEC 60068-2-27
• Vibration Resistance: Conforms to IEC 60068-2-6

Software & Features

• Programming Environment: Sysmac Studio
• Compatible Controllers: NX and NJ series
• Communication Protocols:
  • OPC UA (secure industrial communication)
  • EtherNet/IP (factory network integration)
  • EtherCAT (real-time I/O and motion)
• Control Capabilities:
  • Sequence and motion control
  • Data logging and transfer
  • Network diagnostics
  • High-speed counter and interrupt handling

Applications

Ideal for:

• Multi-axis equipment and robotics
• Packaging lines
• High-speed inspection systems
• Distributed I/O architectures
• Data-driven smart factory applications

Key Features & Benefits

✅ High-Speed Processing: 1 ms task cycles for real-time control.

✅ Large Memory: 5 MB for programs and 33.5 MB for variables.

✅ Flexible Motion: Supports 4 PTP axes with EtherCAT control.

✅ Open Connectivity: Native support for OPC UA and EtherNet/IP.

✅ Compact Design: Small footprint for scalable panel installations.

📦 Available from Drive Outlet Megastore

The Omron NX102-9000 offers unmatched flexibility, speed, and openness in a compact modular form. Built for smart automation, it’s your go-to CPU for high-performance machine control, distributed I/O, and industrial IoT integration.

Contact us today for technical advice and competitive pricing.
