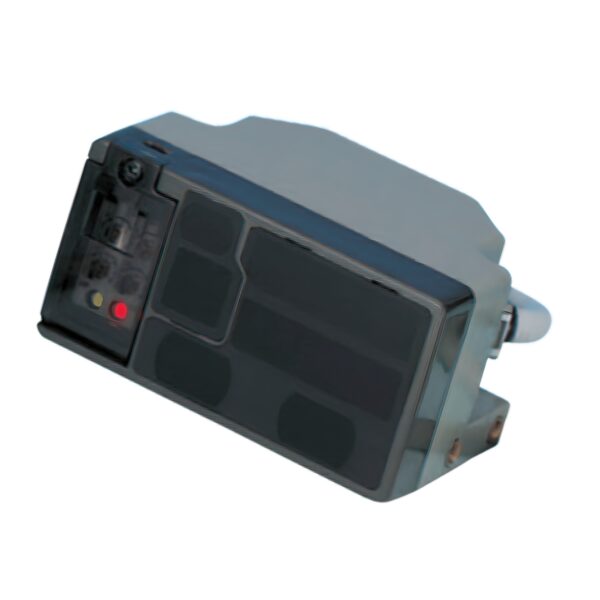

Panasonic PX-24 Long Range & Wide Area Photoelectric Sensor

The Panasonic PX-24 is a main-unit long-range photoelectric sensor from the PX-2 Series, designed for wide-area detection in demanding industrial environments. With a sensing range of up to 3 meters and selectable Light-ON/Dark-ON operation, the PX-24 offers flexible performance for packaging, material handling, and safety applications.

Equipped with dual NPN open-collector outputs, built-in LED indicators, external sensitivity adjustment, and interference prevention for up to 25 sensors, the PX-24 delivers stable detection and precise control. The unit features IP65 protection, a rugged ABS body, and simple installation with the included MS-PX-2 bracket.

Technical Specifications

Model: PX-24 Panasonic
Series: PX-2
Sensor Type: Long Range & Wide Area Photoelectric Sensor
Sensing Range: 3 m (with 300 × 300 mm white non-glossy paper)
Output Type: Dual NPN open-collector (OUT1 & OUT2)
Output Mode: Selectable Light-ON / Dark-ON
Power Supply: 10 to 31 V DC (including ripple)
Power Consumption: ≤1.5 W (operating), ≤0.3 W (sleep)

Response & Control

Response Time: 80 ms or less
Hysteresis: ≤15% of operation distance
Sensitivity Adjustment: Independent adjusters (OUT1, OUT2, Adj. L/R)
External Sensitivity Input: Analog input supported
Sensing Area Selection: 4 zones selectable via DIP switches
Sleep Mode: Switchable via external input
Extraneous Light Output: NPN open-collector, ON when external modulated beam detected

Electrical Ratings

Sink Current: Max 100 mA
Output Voltage: ≤40 V DC
Residual Voltage: ≤1.5 V (100 mA), ≤0.4 V (16 mA)
Short-Circuit Protection: Built-in
Voltage Withstand: 1,000 V AC (1 min)
Insulation Resistance: ≥20 MΩ (500 V DC megger)

Environmental & Mechanical

Protection Rating: IP65 (IEC standard)
Operating Temperature: -10 to +55 °C
Storage Temperature: -20 to +70 °C
Ambient Humidity: 35–85% RH
Ambient Light Resistance: ≤3,000 lx (incandescent)
Vibration Resistance: 10–500 Hz, 3 mm double amplitude, 20 G max.
Shock Resistance: 500 m/s² (50 G) in X/Y/Z directions
Interference Prevention: Up to 25 units
Sleep Function: Supported
Emission Element: Infrared LED (950 nm)

Mechanical Details

Enclosure Material: ABS
Lens Material: Acrylic
Cover Material: Polycarbonate
Cable (Sensor I/O): 0.18 mm², 9-core cabtyre, 0.5 m
Cable (Aux Sensor): 0.18 mm², 10-core connector cabtyre, 0.5 m
Cable Extension: Up to 100 m (sensor), 10 m (auxiliary sensor)
Net Weight: Approx. 210 g
Gross Weight: Approx. 390 g
Included Accessories: MS-PX-2 Mounting Bracket (1x), Adjusting Screwdriver (1x)

Key Features & Benefits

✅ Long-Range Detection: Up to 3 m sensing range for wide-area applications.

✅ Dual Outputs: Independent OUT1 and OUT2 with selectable logic.

✅ Robust Design: IP65 rated with high resistance to shock, vibration, and noise.

✅ Advanced Interference Prevention: Use up to 25 sensors without cross-talk.

✅ Quick Installation: Includes mounting bracket and screwdriver for setup.
